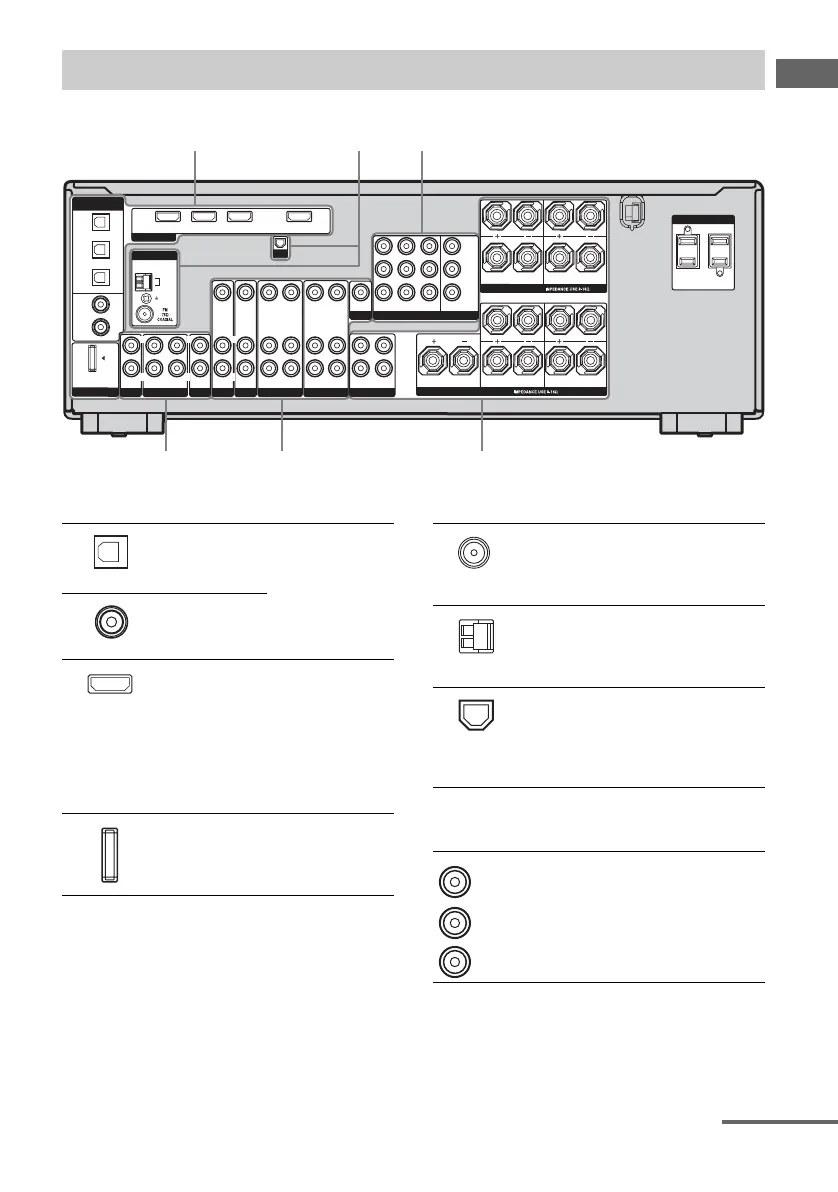

Rear panel
OPTICAL
SAT
IN
VIDEO 2/
BD IN
DVD
IN
SA-CD/
CD/CD-R
IN
COAXIAL
DVD I NSAT IN
VIDEO 2/BD IN
OUT
AM
L
R
OUT IN
IN
VIDEO IN VIDEO IN VIDEO IN
VIDEO OUT
AUDIO OUT
AUDI O I N
AUDI O I N
AUDI O I N
SURROUNDSURROUND BACKCENTER
R
R
L
L
SAT IN DVD IN VIDEO 1 IN MONITOR OUT
P B /C B
P R /C R
COMPONENT VIDEO
SPEAKERS
DIGITAL
(ASSIGNABLE)
ANTENNA
DMPORT
VIDEO 1
IN
SA–CD/CD/CD–R
TV
IN
AUX
HDMI
MONITOR
DVD VIDEO 2/BD
L
R
VIDEO IN
VIDEO OUT
AUDIO OUT
AUDI O I N
VIDEO 1
AUDI O O UT
SUB WOOFER
SAT
XM
Y
L
R
L
R
L
R
VIDEO OUT
FRONT BFRONT A
R
R
LL
SPEAKERS
AC OUTLET
1 2 3
6 45
A DIGITAL INPUT/OUTPUT section
OPTICAL IN
jacks
Connects to a DVD
player, etc. The
COAXIAL jack
provides a better
quality of loud
sound (page 25,
27).
COAXIAL IN
jacks
HDMI IN/
OUT jacks*
Connects to a DVD
player, satellite
tuner, or a Blu-ray
disc player. The
image and the
sound are output to
a TV or a projector
(page 21).
DMPORT
jack
Connects to a
DIGITAL MEDIA
PORT adapter
(page 81).
B ANTENNA section
FM
ANTENNA
jack
Connects to the
FM wire antenna
supplied with this
receiver (page 31).
AM
ANTENNA
terminals
Connects to the
AM loop antenna
supplied with this
receiver (page 31).
XM jack Connects to the
XM Connect-and-
Play antenna (not
supplied) (page
71).
C COMPONENT VIDEO INPUT/
OUTPUT section
COMPONENT
VIDEO
INPUT/
OUTPUT
jacks*
Connects to a DVD
player, TV,
satellite tuner, etc.
You can enjoy high
quality image
(page 23–27).
Green
(Y)
Blue
(P
B/CB)
Red
(P
R/CR)
continued
