Sony STR-DN1040 - Rear Panel

14
US
A DIGITAL INPUT/OUTPUT section
B TUNER section
C Controls jacks for Sony equipment
and other external equipment
D NETWORK section
E SPEAKERS section (page 26)
F AUDIO INPUT/OUTPUT section
G VIDEO INPUT/OUTPUT section
(page 28, 33)

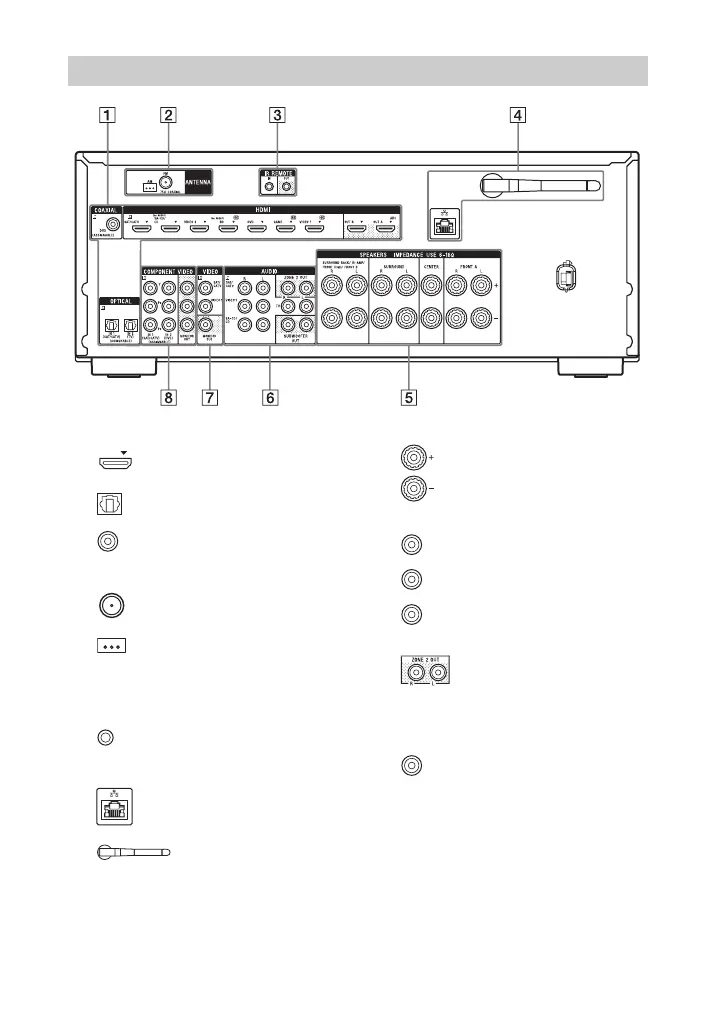

Rear panel
HDMI IN/OUT* jacks (page
28, 31)
OPTICAL IN jacks (page 28,
33)
COAXIAL IN jack (page 33)
FM ANTENNA jack
(page 34)
AM ANTENNA terminals
(page 34)
IR REMOTE IN/OUT jacks
(page 88)
LAN port** (page 36)
Wireless LAN antenna
(page 36)
AUDIO IN jacks
(page 33)
SUBWOOFER OUT
jacks (page 26)
ZONE 2 OUT jacks
(page 88)
VIDEO IN/OUT*
jacks
White (L)
Red (R)
Black
Yellow
