STR-K1600

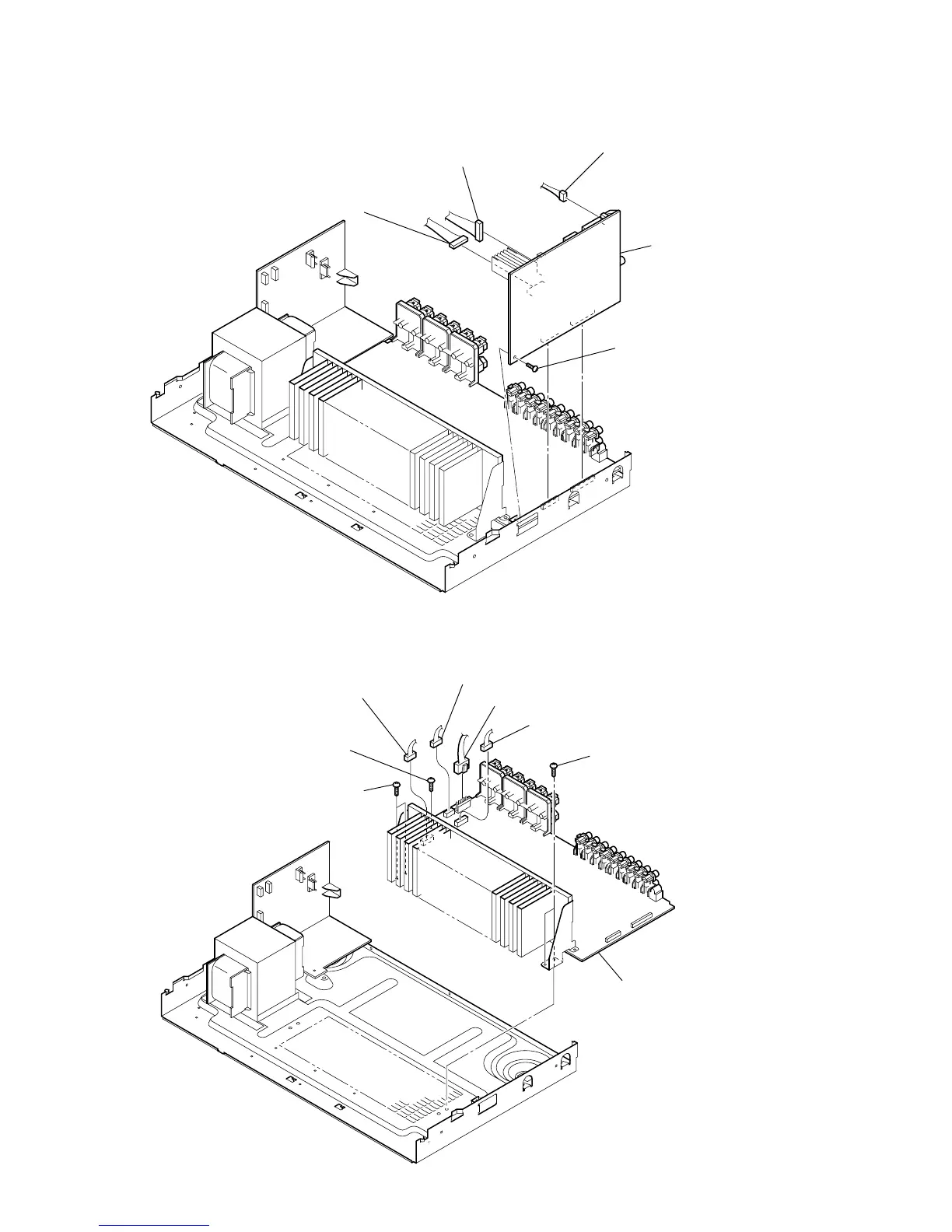

2-4. DIGITAL BOARD
2-5. MAIN BOARD SECTION
4 screw
(+BVTP 3 × 8)
5 DIGITAL board
1 CNP505 (7P)
3 CNP512 (3P)
2 CNP503 (8P)
7 two screws
(+BV3 (3
-CR) )
8 MAIN board sectio
n
6 two screws
(+BV3 (3
-CR) )
5 screw
(+BV3 (3
-CR) )
1 CNP801 (5P)
2 CNP802 (5P)
3 CNP912 (2P)
4 CN915 (5P)

Sony STR-K1600 - Receiver Component For Ht-ddw1600 Specifications

General

Channels	5.1
FM/AM Tuner	Yes
Impedance	8 Ohms
Total Harmonic Distortion	0.7%
Input Sensitivity	500 mV
Output Power / Channel	100 W
Type	AV Receiver
Surround Sound	Dolby Digital, DTS
Digital Inputs	1 optical
Amplifier Output Details	100W per channel (front), 100W (center), 100W (rear)
Output Impedance / Channel	8 Ohm
Outputs	Subwoofer
Speaker Impedance	8 Ohms
Dimensions	430 mm x 157.5 mm x 310 mm
Input Impedance	50 kOhm
