STR-K1600

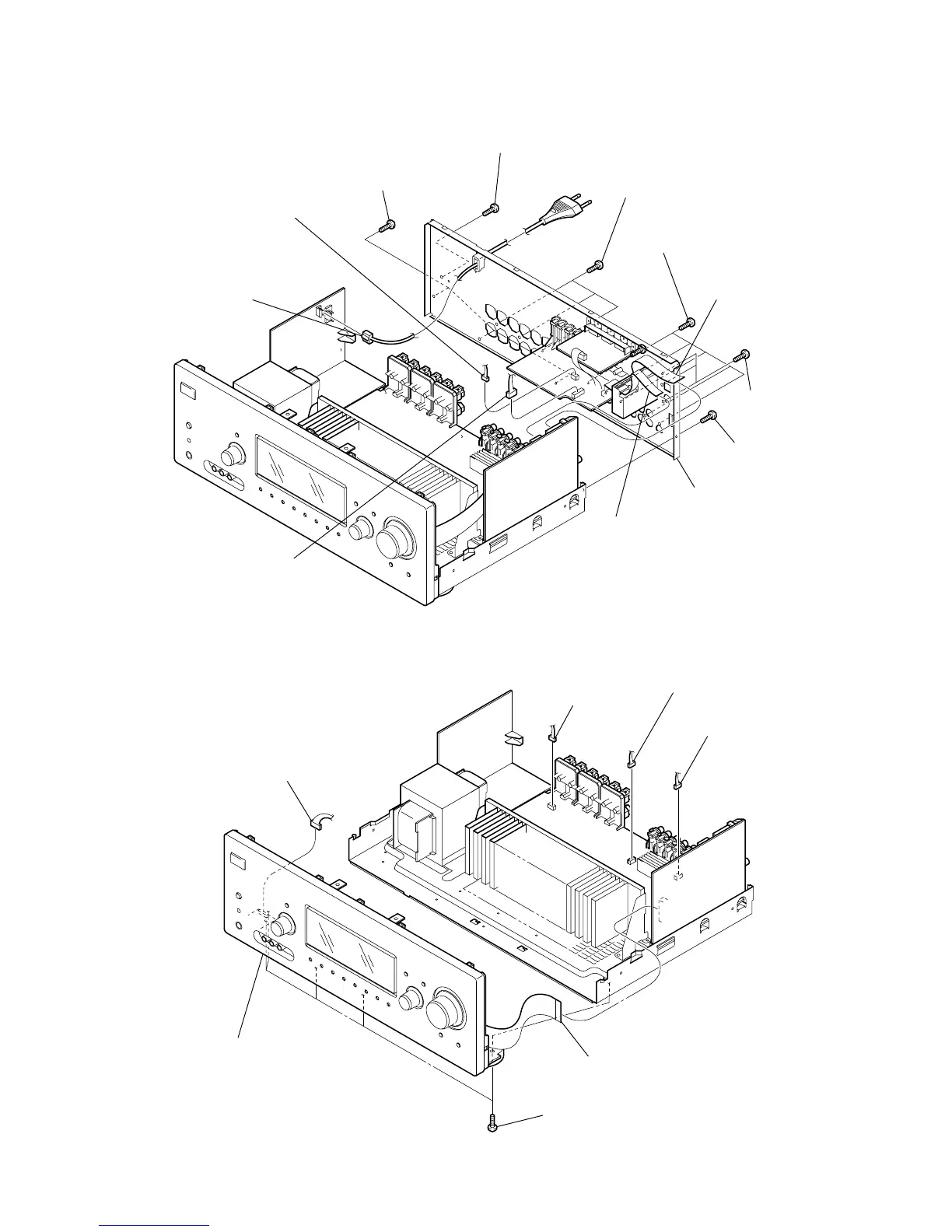

2-2. BACK PANEL SECTION
2-3. FRONT PANEL SECTION
6 five screws
(+BVTP 3 × 8)
1 CNP790 (4P)
7 front panel section
3 CNP507 (3P)
4 CN506 (3P)
5 CNP503 (3P
)
2 wire (flat type) (19 core)
(CNS514)
8 three screws
(+BVTP 3 × 8)
9 five screws
(+BVTP 3 × 8)
0 three screws
(+BVTP 3 × 8)
6 three screws
(+BVTP 3 × 8)
7 screw
(+BVTP 3 × 8)
qa screw
(+BVTP 3 × 8)
qs back panel section
1 CNP901 (2P)
2 CNP202 (3P)
3 CNP203 (3P)
4 wire (flat type) (13 core)
(CNS509)
5 wire (flat type) (9 core)
(CNS507)

Sony STR-K1600 - Receiver Component For Ht-ddw1600 Specifications

General

Channels	5.1
FM/AM Tuner	Yes
Impedance	8 Ohms
Total Harmonic Distortion	0.7%
Input Sensitivity	500 mV
Output Power / Channel	100 W
Type	AV Receiver
Surround Sound	Dolby Digital, DTS
Digital Inputs	1 optical
Amplifier Output Details	100W per channel (front), 100W (center), 100W (rear)
Output Impedance / Channel	8 Ohm
Outputs	Subwoofer
Speaker Impedance	8 Ohms
Dimensions	430 mm x 157.5 mm x 310 mm
Input Impedance	50 kOhm
