8
STR-K1600
Note : This set can be disassemble according to the following sequence.
SECTION 2
DISASSEMBLY
2-1. CASE
Note : Follow the disassembly procedure in the numerical order given.

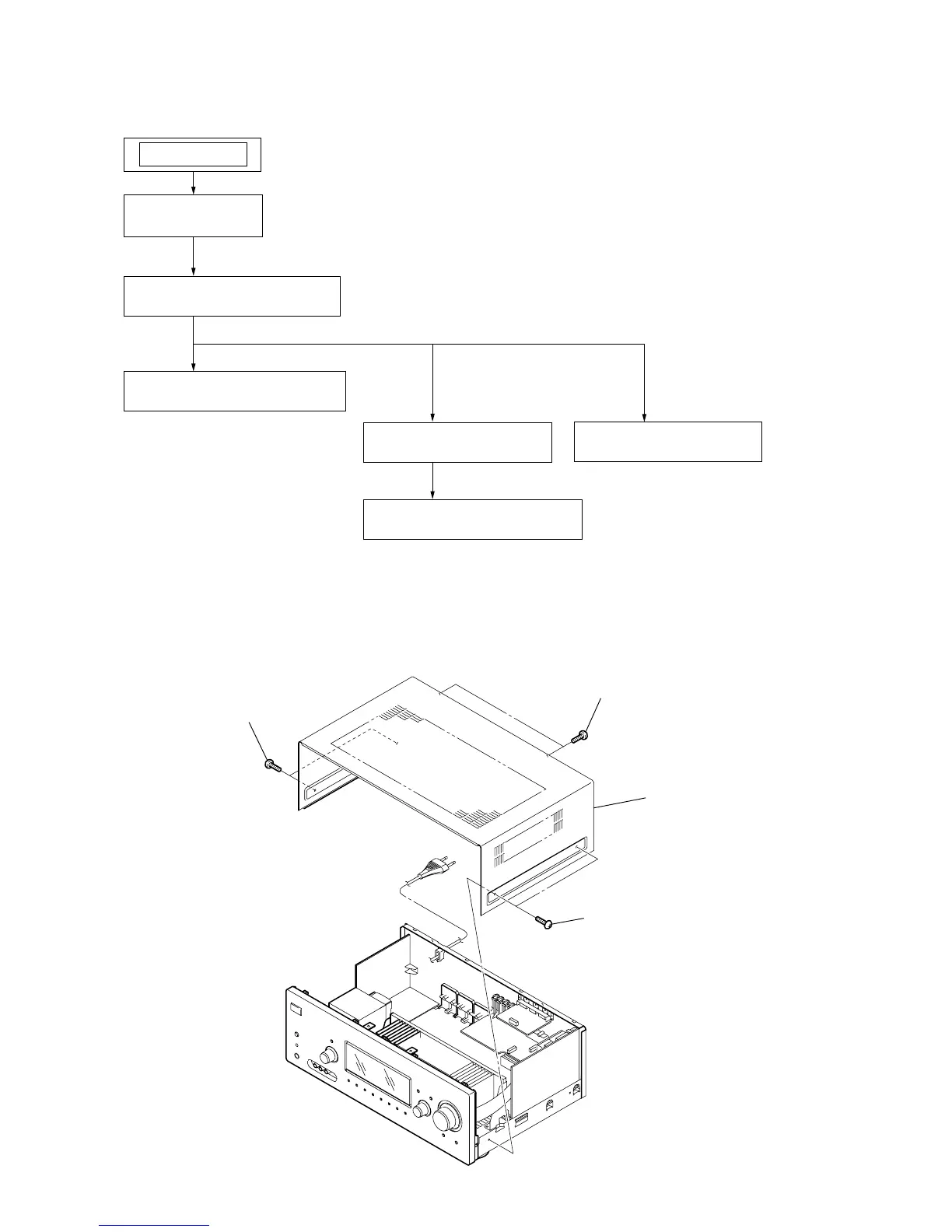

1 two screws
(case 3 TP2)
2 two screws
(case 3 TP2)
3 two screws
(+BVTP 3
× 8
)
4 case
2-1. CASE
(Page 8)
2-3. FRONT PANEL SECTION
(Page 9)
SET
2-2. BACK PANEL SECTION
(Page 9)
2-6. STANDBY BOARD
(Page 11)
2-4. DIGITAL BOARD
(Page 10)
2-5. MAIN BOARD SECTION
(Page 10)

Sony STR-K1600 - Receiver Component For Ht-ddw1600 Specifications

General

Channels	5.1
FM/AM Tuner	Yes
Impedance	8 Ohms
Total Harmonic Distortion	0.7%
Input Sensitivity	500 mV
Output Power / Channel	100 W
Type	AV Receiver
Surround Sound	Dolby Digital, DTS
Digital Inputs	1 optical
Amplifier Output Details	100W per channel (front), 100W (center), 100W (rear)
Output Impedance / Channel	8 Ohm
Outputs	Subwoofer
Speaker Impedance	8 Ohms
Dimensions	430 mm x 157.5 mm x 310 mm
Input Impedance	50 kOhm
