5
STR-K1600
SECTION 1
GENERAL
This section is extracted
from instruction manual.
5
GB
Getting Started

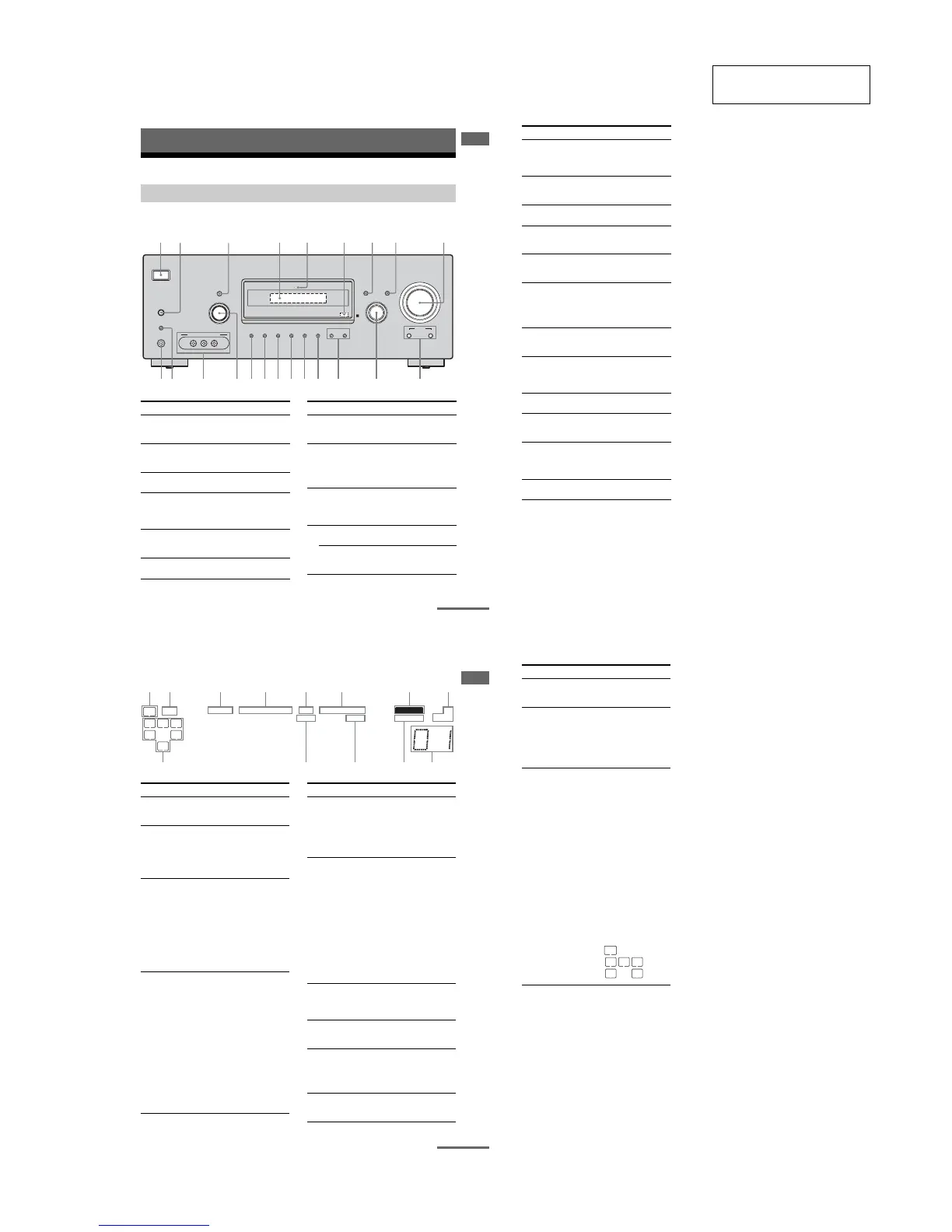

Description and location of parts
Front panel
Getting Started
Receiver
?/1
AUTO CAL MIC
AUTO CAL
TUNING MODE
TUNING
– +
PHONES
MEMORY/
ENTER SLEEPDIMMER
MULTI CHANNEL DECODING
SUR BACK
DECODING
2CH A.F.D. MOVIE MUSIC
MODE SPEED
X-ROUND
DISPLAY INPUT MODE
INPUT SELECTOR
MASTER VOLUME
VIDEO 3 IN/PORTABLE AV IN
VIDEO L AUDIO R
6
q;
s
qaqsw;wa ql
1
2
345 789
qf
qgqhqjqk qd
Name Function
A ?/1
(on/standby)
Press to turn the receiver
on or off (page 31, 39, 40,
57, 70, 78).
B AUTO CAL Press to activate the Auto
Calibration function (page
33).
C TUNING MODE Press to select the tuning
mode (page 58, 61, 78).
D Display The current status of the
selected component or a
list of selectable items
appears here (page 7).
E MULTI CHANNEL
DECODING
lamp
Lights up when multi
channel audio is decoded
(page 40).
F Remote sensor Receives signals from
remote commander.
Name Function
G DISPLAY Press to select information
displayed on the display
(page 66, 67).
H INPUT MODE Press to select the input
mode when the same
components are connected
to both digital and analog
jacks (page 62).
I MASTER
VOLUME
Turn to adjust the volume
level of all speakers at the
same time (page 36, 37,
39, 40).
J X-ROUND MODE Press to select the X-
ROUND mode (page 66).
X-ROUND
SPEED
Press to adjust the speed of
X-ROUND effect (page
66).
continued
6
GB
Name Function
K INPUT
SELECTOR
Turn to select the input
source to playback (page
37, 39, 40, 58, 59, 60, 61,
62, 65, 67, 68, 69).
L MOVIE,
MUSIC
Press to select sound fields
(MOVIE, MUSIC) (page
54).
M A.F.D. Press to select A.F.D.
mode (page 52, 56).
N 2CH Press to select 2CH
STEREO mode (page 56,
57).
O SUR BACK
DECODING
Press to select the
surround back decoding
mode (page 46).
P SLEEP Press to activate the Sleep
Timer function and the
duration which the
receiver turns off
automatically (page 68).
Q DIMMER Press to change the
brightness of the display
(page 51).
R MEMORY/
ENTER
Press to store a station or
enter the selection when
selecting the settings
(page 31)
S TUNING +/– Turn to scan a station
(page 58, 61).
T VIDEO 3 IN/
PORTABLE AV
IN jacks
To connect a camcorder or
video game (page 27, 37).
U AUTO CAL MIC
jack
Connects to the supplied
optimizer microphone for
the Auto Calibration
function (page 32).
V PHONES jack Connects to a headphone
(page 74).
7
GB
Getting Started
About the indicators on the display
SW
LFE
LC
SL S
;
D EX
;
PL IIx
;
PL OPT DTS -ES 96/24 MEMORY ST
MONOD.RANGECOAX NEO:6
SB
R
SR
9q;qd qs qa
Name Function
A SW Lights up when the audio signal
is output from the SUB
WOOFER jack.
B LFE Lights up when the disc being
played back contains an LFE
(Low Frequency Effect)
channel and the LFE channel
signal is actually being
reproduced.
C ; D (EX) “; D” lights up when Dolby
Digital signals are input.
“; D EX” lights up when
Dolby Digital Surround EX
signals are decoded.
Note
When playing a Dolby Digital
format disc, be sure that you
have made digital connections
and that INPUT MODE is not
set to “ANALOG” (page 62).
D ; PL
(II)/(IIx)
“; PL” lights up when the
receiver applies Pro Logic
processing to 2 channel signals
in order to output the center and
surround channel signals.
“; PL II” lights up when the
Pro Logic II Movie/Music/
Game decoder is activated.
“; PL IIx” lights up when the
Pro Logic IIx Movie/Music/
Game decoder is activated.
Note
Dolby Pro Logic IIx decoding
does not function for DTS
format signals or for signals
with a sampling frequency of
more than 48 kHz.
Name Function
E OPT Lights up when INPUT MODE
is set to “AUTO IN” and the
source signal is a digital signal
being input through the
OPTICAL jack, or when
INPUT MODE is set to “OPT
IN” (page 62).
F DTS (-ES)/
(96/24)
“DTS” lights up when the
receiver is decoding DTS
signals.
“DTS-ES” lights up when the
receiver is decoding DTS-ES
signals.
“DTS 96/24” lights up when the
receiver is decoding DTS 96
kHz/24 bit signals.
Note
When playing a DTS format
disc, be sure that you have made
digital connections and that
INPUT MODE is not set to
“ANALOG” (page 62).
G MEMORY Lights up when a memory
function, such as Preset
Memory (page 60), etc., is
activated.
H Tuner
indicators
Lights up when using the
receiver to tune in radio stations
(page 58), etc.
I Preset
station
indicators
Lights up when using the
receiver to tune in radio stations
you have preset. For details on
presetting radio stations, see
page 60.
J D.RANGE Lights up when dynamic range
compression is activated (page
44).
continued
8
GB
Name Function
K NEO:6 Lights up when DTS Neo:6
Cinema/Music decoder is
activated (page 53).
L COAX Lights up when INPUT MODE
is set to “AUTO IN” and the
source signal is a digital signal
being input through the
COAXIAL jack, or when
INPUT MODE is set to “COAX
IN” (page 62).
M Playback
channel
indicators
L
R
C
SL
SR
S
SB
The letters (L, C, R, etc.)
indicate the channels being
played back. The boxes around
the letters vary to show how the
receiver downmixes the source
sound.
Front Left
Front Right
Center (monaural)
Surround Left
Surround Right
Surround (monaural or the
surround components obtained
by Pro Logic processing)
Surround back (the surround
back components obtained by
6.1 channel decoding)
Example:
Recording format (Front/
Surround): 3/2.1
Sound Field: A.F.D. AUTO
SW
LC
SL
R
SR
To Next Page
