STR-K7200
4
SECTION 2
GENERAL

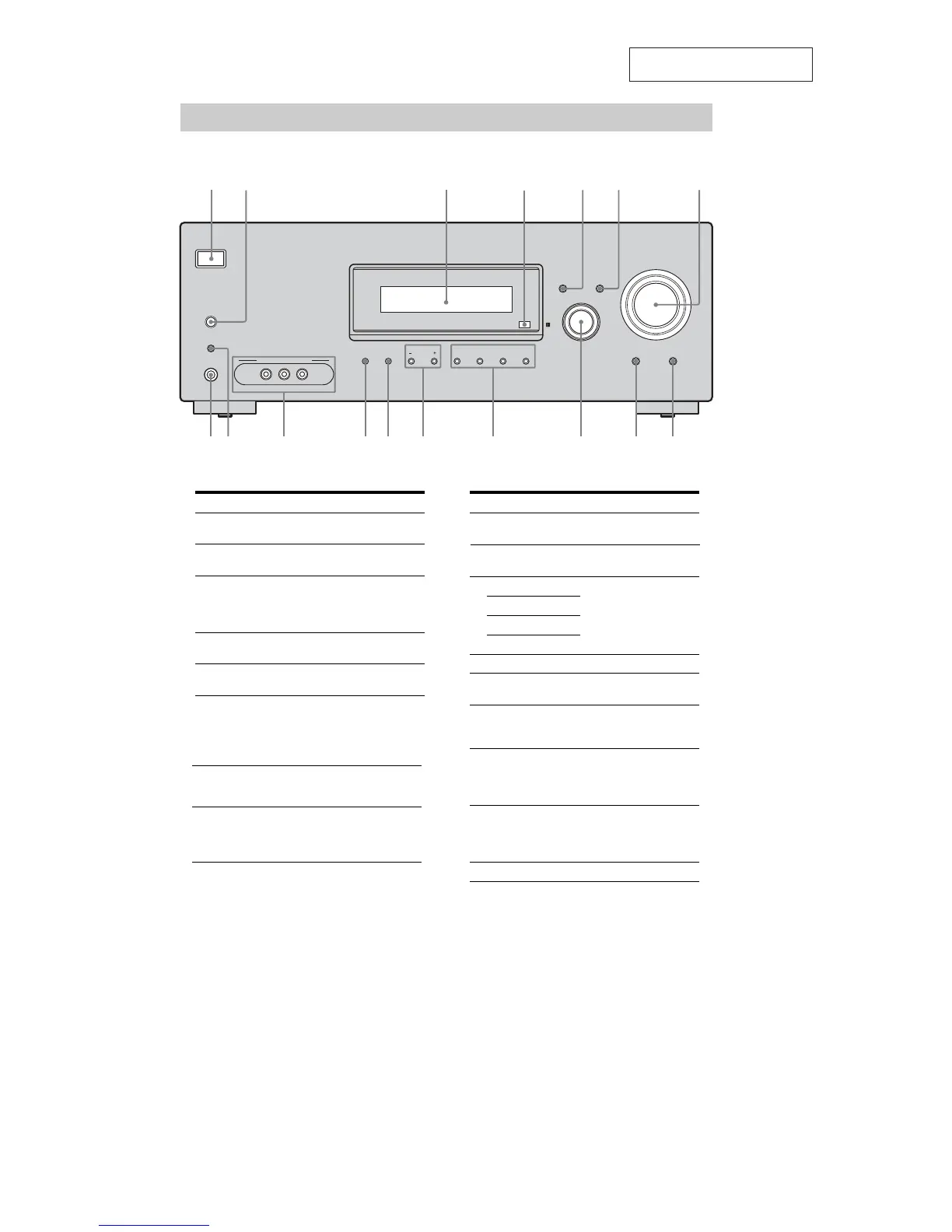

Front panel

AUTO CAL MIC
SPEAKERS
(ON/OFF)
PHONES
VIDEO 2 IN/PORTABLE AV IN
VIDEO L AUDIO R
MEMORY/
ENTER
TUNING
MODE
TUNING 2CH A.F.D. MOVIE MUSIC
AUTO CAL
MUTING
DISPLAY INPUT MODE
INPUT SELECTOR
MASTER VOLUME


R
RTRERG
RB


RHRIRK
Name Function
" /
(on/standby)
Press toturnthereceiver on
or off.
# SPEAKERS
(ON/OFF)
Press to turn the speaker
system on or off.
$ Display The current status of the
selected component oralist
of selectable items appears
here.
% Remote sensor Receives signals from
remote commander.
& DISPLAY Press to select information
displayed on the display.
' INPUT MODE Press to select the input
mode when the same
componentsareconnected
to both digital and analog
jacks.
( MASTER
VOLUME
Turn to adjust the volume
level of all speakers at the
same time.
) MUTING Press to turn off the sound
temporarily.
PressMUTINGagainto
restore the sound.
* AUTO CAL Press to activate the Auto
Calibration function.
Name Function
+ INPUT
SELECTOR
Turn to select the input
source to play back.
, 2CH Press to select a sound
field.
A.F.D.
MOVIE
MUSIC
- TUNING +/– Press to scan a station.
. TUNING MODE Press to select the tuning
mode.
/ MEMORY/
ENTER
Press to store a station or
enter the selection when
selecting the settings.
0 VIDEO 2 IN/
PORTABLE AVIN
jacks
Connect to a portable
audio/video component
such as a camcorder or
video game.
1 AUTO CAL MIC
jack
Connects to the supplied
optimizer microphone for
the Auto Calibration
function.
2 PHONES jack Connects to headphones.
Receiver
Thia section is extracted from
instruction manual.
