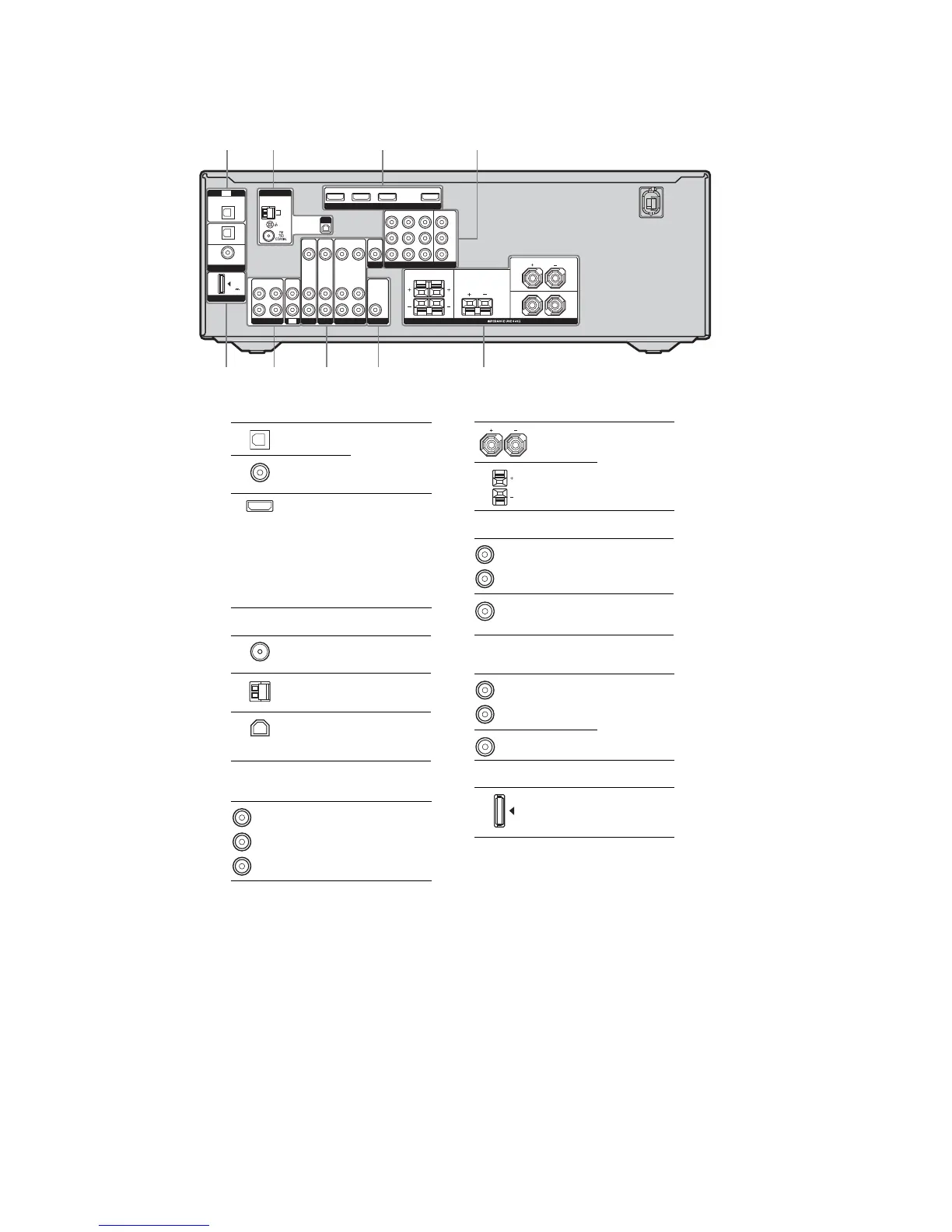

" DIGITAL INPUT/OUTPUT section
OPTICAL
IN jacks
Connects to a DVD
player, etc. The
COAXIAL jack
provides a better
sound quality.
COAXIAL IN
jack
HDMI IN/
OUT* jacks
Connects to a DVD
player, Blu-ray disc
player, etc. The
image is output to a
TV or a projector
while the sound can
be output from a TV
or/and speakers
connected to this
receiver.
# ANTENNA section
FM
ANTENNA
jack
Connects to the
supplied FM wire
antenna.
AM
ANTENNA
terminals
Connects to the
supplied AM loop
antenna.
XM terminal Connects to the XM
Mini-Tuner and
Home Dock (not
supplied).
$ COMPONENT VIDEO INPUT/
OUTPUT section
Y,PB/CB,PR/CR
IN/OUT* jacks
Connects toa DVD
player, TV,
satellite tuner, etc.
You can enjoy high
quality image.
% SPEAKERS section
Connects to the
supplied speakers.
& AUDIO INPUT/OUTPUT section
AUDIO IN/
OUT jack
Connects to a
Super Audio CD
player, etc.
AUDIO OUT
jack
Connects to the
supplied sub
woofer.
Green
(Y)
Blue
(P
B/CB)
Red
(P
R/CR)
White (L)
Red (R)
Black
* You can watch the selected input image when you
connect the HDMI OUT or MONITOR OUT jack
to a TV.
' VIDEO/AUDIO INPUT/OUTPUT
section
AUDIO IN/
OUT jacks
Connects to a
VCR, DVD player,
etc.
VIDEO IN/
OUT* jacks
( DMPORT
Connects to a
DIGITAL MEDIA
PORT adapter.
White (L)
Red (R)
Ye l l ow
