Sony STR-K760P - Printed Wiring Boards

1414
STR-K760P
• See page 11 for Circuit Boards Location.

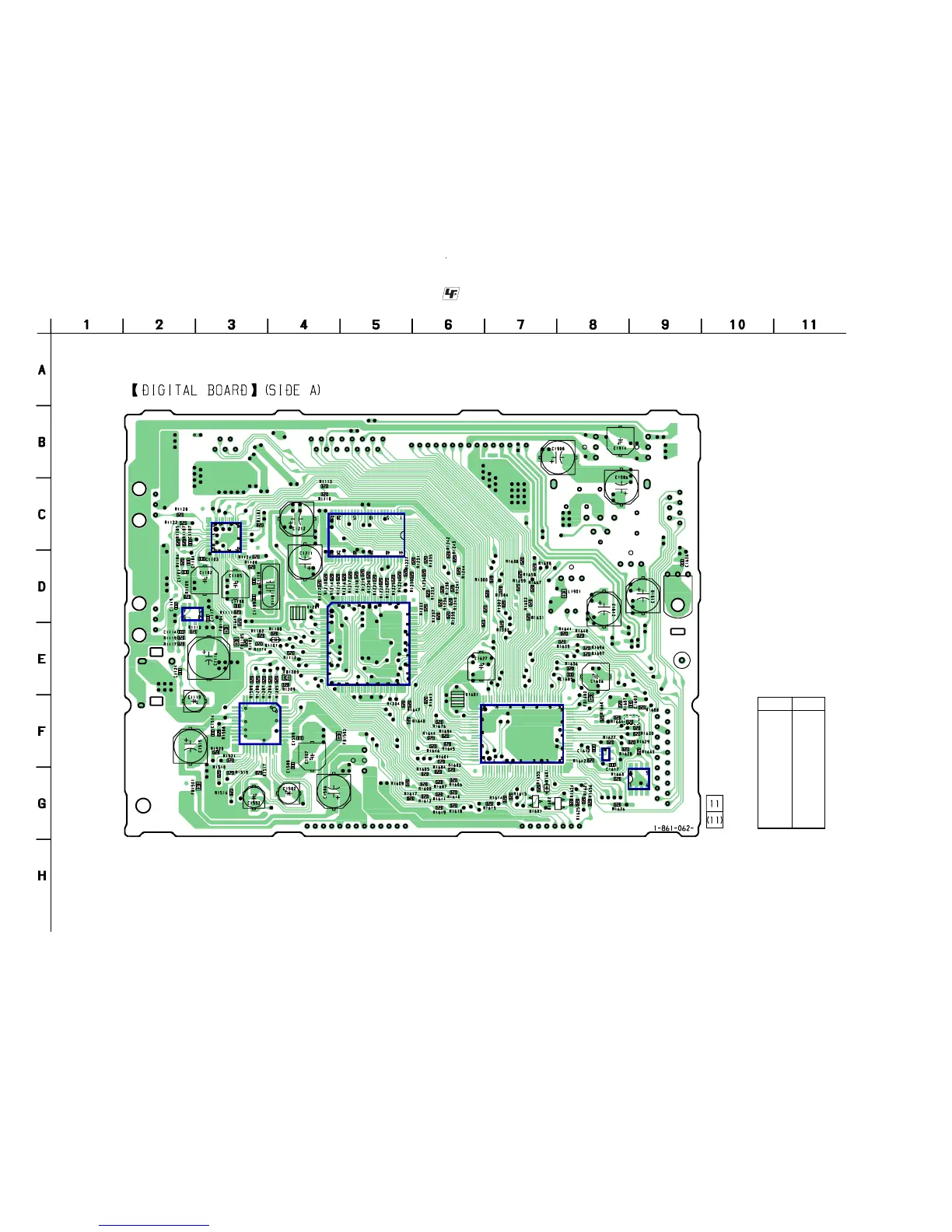

3-3. PRINTED WIRING BOARD – DIGITAL BOARD (SIDE A) –
• : Uses unleaded solder.
Ref. No. Location
D1101 E-4
D1601 G-7
IC1101 C-3
IC1102 D-2
IC1201 E-5
IC1202 C-5
IC1501 F-3
IC1601 F-7
IC1602 G-8
IC1604 F-8
Q1601 G-7
Q1602 G-7
• Semiconductor
Location
IC1501
IC1102
IC1101
IC1202
IC1201
IC1601
IC1602
IC1604
11 1
23
22
12
34
44
33
E
E
1
3
5
4
G1101
R1677
R1678
R1679
R1663
EXCEPT CND
R1672
