31
STR-K760P
SECTION 4
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
•Abbreviation
AUS: Australian model
CND: Canadian model
E51 : Chilean and Peruvian models
MY : Malaysia model
SP : Singapore model
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

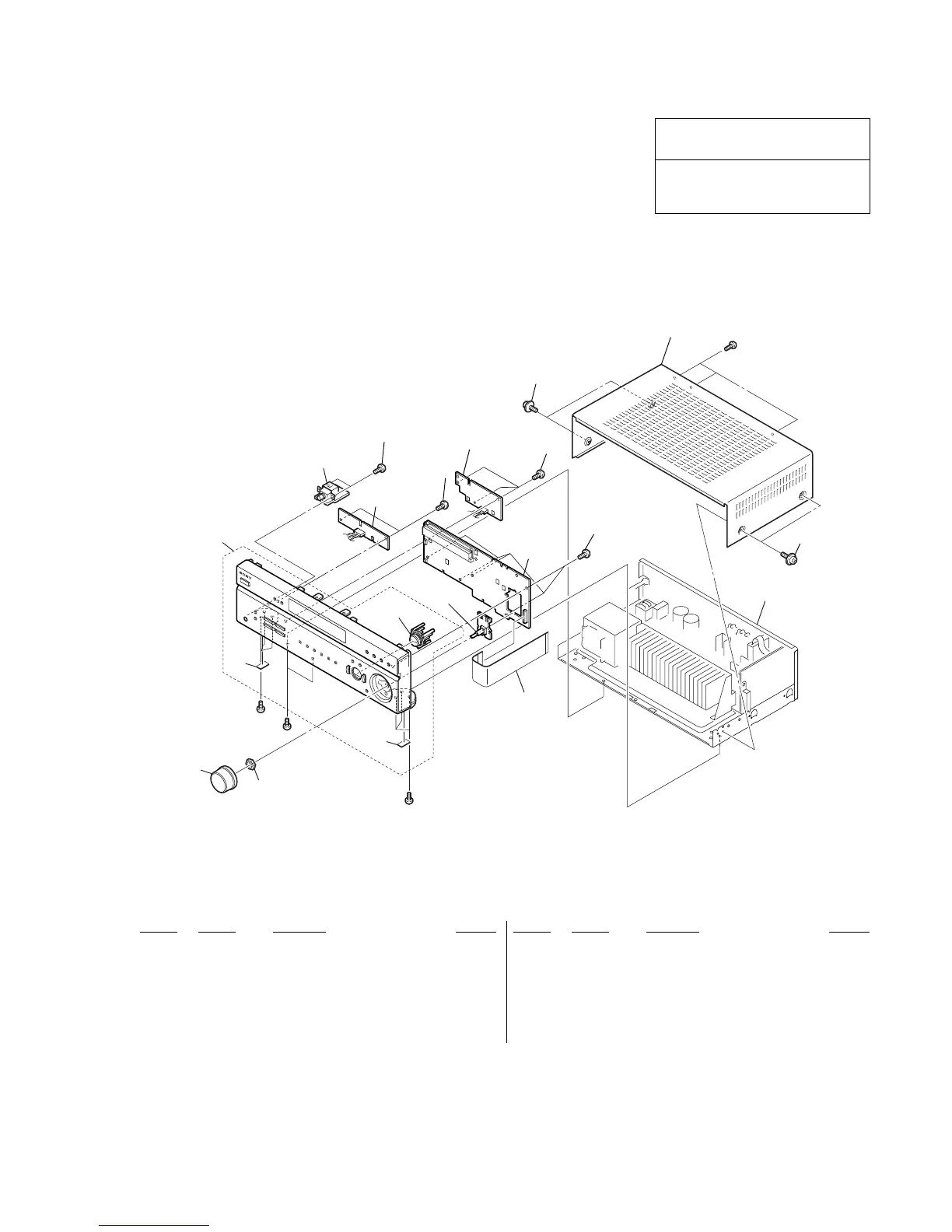

4-1. FRONT PANEL SECTION
chassis section
1
8
2
2
3
5
6
9
9
10
#1
4
4
4
7
4
not
supplied
not
supplied
not
supplied
supplied
with RV102
#1
#1
#1
1 4-232-113-12 KNOB (VOL)
2 4-977-358-01 CUSHION
3 X-4956-132-1 FRONT PANEL ASSY
4 4-951-620-01 SCREW (2.6X8), +BVTP
5 1-861-045-11 POWER BOARD
6 1-861-044-11 TUNING BOARD
7 A-4750-437-A DISPLAY BOARD, COMPLETE
8 1-773-114-11 WIRE (FLAT TYPE) (19 CORE)
9 4-210-291-11 SCREW (CASE 3 TP2)
10 4-245-939-21 CASE
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
