Sony STR-KS360 - Page 35

STR-KS360/KS360S
35

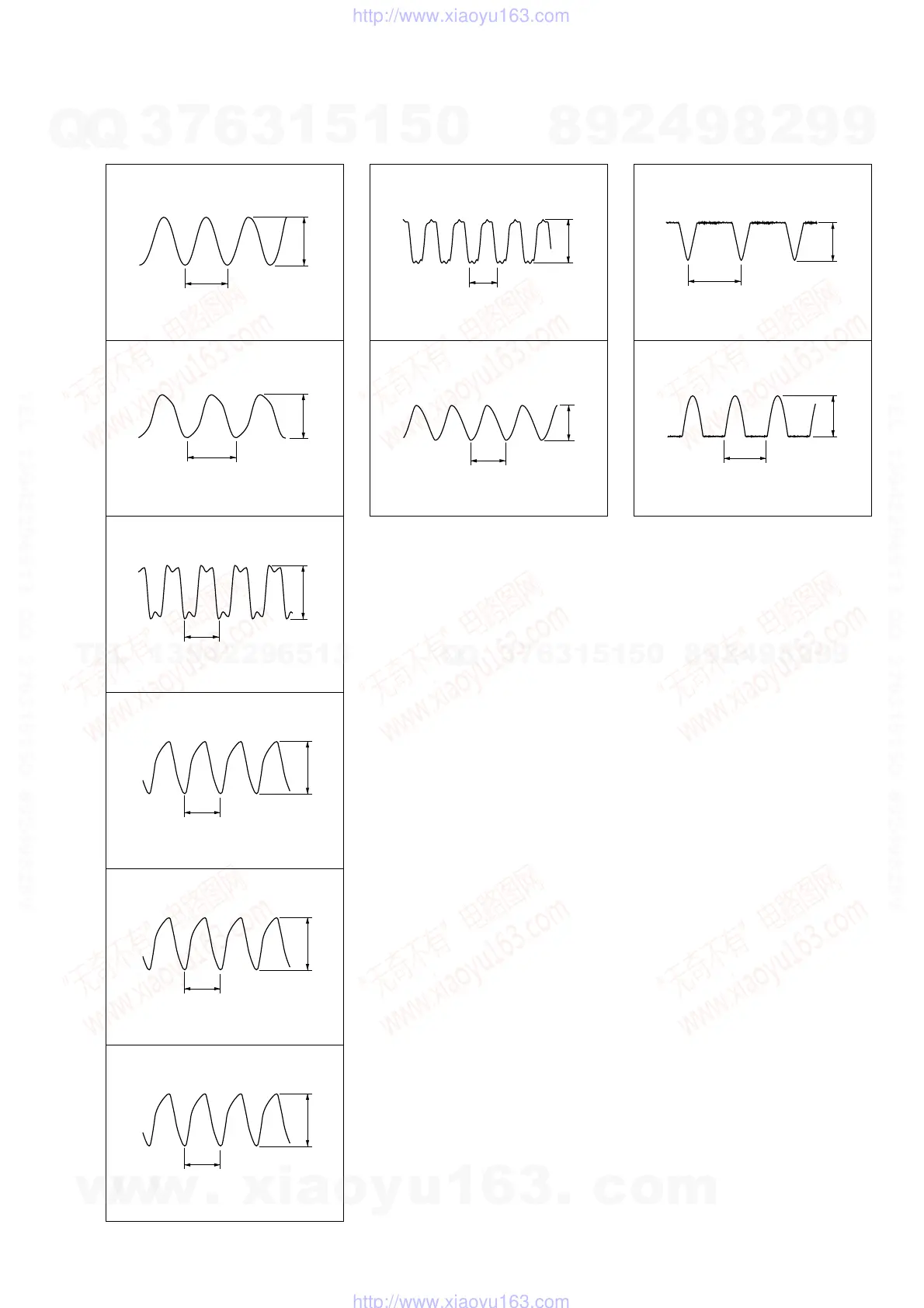

• Waveforms
– MAIN Board –

IC1003 [WD (XTAL)
500 mV/DIV, 20 ns/DIV
40 ns
1.1 Vp-p

IC1005 RE (Xout)
2 V/DIV, 100 ns/DIV
200 ns
3.4 Vp-p

IC1704 XB (XOUT(O))
2 V/DIV, 50 ns/DIV
81 ns
4 Vp-p

IC3004  (3Y)
1 V/DIV, 10 ns/DIV
20.2 ns
2.6 Vp-p

IC3000 RG (XFSOOUT)
1 V/DIV, 10 ns/DIV
20.2 ns
2.4 Vp-p

IC3001 RG (XFSOOUT)
1 V/DIV, 10 ns/DIV
20.2 ns
2.4 Vp-p
XB
IC3511 JG (XTALOUT)
2 V/DIV, 20 ns/DIV
35.2 ns
4.4 Vp-p
XT
IC3519 RB (XOUT)
2 V/DIV, 50 ns/DIV
100 ns
3.5 Vp-p
RT
Q711 (Collector)
20 V/DIV, 10 μs/DIV
13 μs
22.4 Vp-p
RB
Q711 (Base)
2 V/DIV, 10 μs/DIV
13 μs
3 Vp-p
– HDMI Board – – DISPLAY Board –
