53
STR-KS360/KS360S

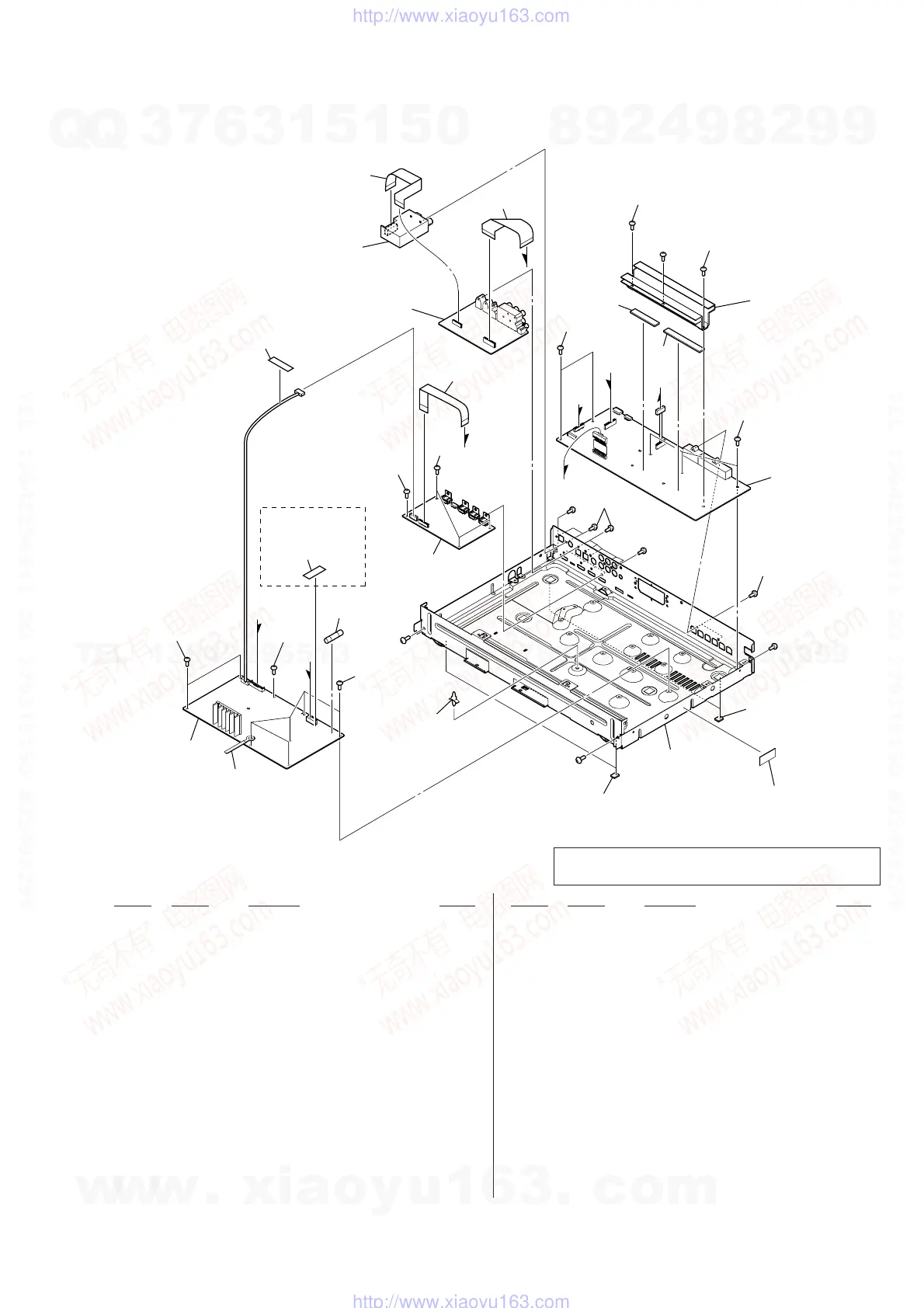

7-3. MAIN BOARD SECTION
* 101 4-924-098-21 HOLDER, PC BOARD
102 4-237-065-01 CLAMP (L35)
103 A-1629-285-A SMPS BOARD, COMPLETE (US, CND)
103 A-1629-286-A SMPS BOARD, COMPLETE (AEP, UK, AUS)
104 3-077-331-01 +BV3 (3-CR)
105 3-077-331-11 +BV3 (3-CR)
106 3-378-435-01 CUSHION, SARANET
9 107 A-1629-328-A HDMI BOARD, COMPLETE (for SERVICE)
109 1-828-954-11 WIRE (FLAT TYPE) (9 CORE) (US, CND, AUS)
109 1-828-964-11 WIRE (FLAT TYPE) (11 CORE) (AEP, UK)
110 1-693-728-31 TUNER (FM/AM) (US, CND)
110 1-693-737-21 TUNER (FM/AM) (AEP, UK)
110 1-693-749-21 TUNER (FM/AM) (AUS)
111 1-828-349-11 WIRE (FLAT TYPE) (17 CORE)
112 1-828-388-11 WIRE (FLAT TYPE) (25 CORE)
113 4-254-947-01 SHEET (AMP), RADIATION
114 4-254-947-11 SHEET (AMP), RADIATION
115 A-1617-595-A MAIN BOARD, COMPLETE (KS360)
115 A-1617-596-A MAIN BOARD, COMPLETE
(KS360S: AEP, UK (for HT-SS360))
115 A-1617-598-A MAIN BOARD, COMPLETE (KS360S: US, CND)
115 A-1617-599-A MAIN BOARD, COMPLETE
(KS360S: AEP, UK (for HT-SF360))
115 A-1617-600-A MAIN BOARD, COMPLETE (KS360S: AUS)
116 4-232-478-31 FOOT
0 F901 1-533-311-12 FUSE, GLASS CYLINDRICAL (DIA.5) (8A/125V)
(US, CND)
0 F901 1-576-232-51 FUSE (H.B.C.) (T5AH/250V) (AEP, UK, AUS)
#1 7-685-645-79 SCREW +BVTP 3X6 TYPE2 IT-3
#2 7-685-649-79 SCREW +BVTP 3X14 TYPE2 IT-3
#3 7-685-871-01 SCREW +BVTT 3X6 (S)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
#2
#3
#1
F901
#1
#1
#1
not supplied
(KS360/KS360S:
US, CND)
not supplied
not supplied
not supplied
101
102
103
104
104
106
114
113
107
104
104
104
105
105
104
115
116
116
104
104
104
111
"
"
#
#
$
$
not supplied
(IO board)
109
110
112
%
%
Note: If wire (fl at type) is replaced, install it after bending
it in the same form as that before replacement.
