Sony STR-KS360 - DISASSEMBLY PROCEDURES; FRONT PANEL BLOCK AND MAIN BOARD REMOVAL STEPS

STR-KS360/KS360S
9

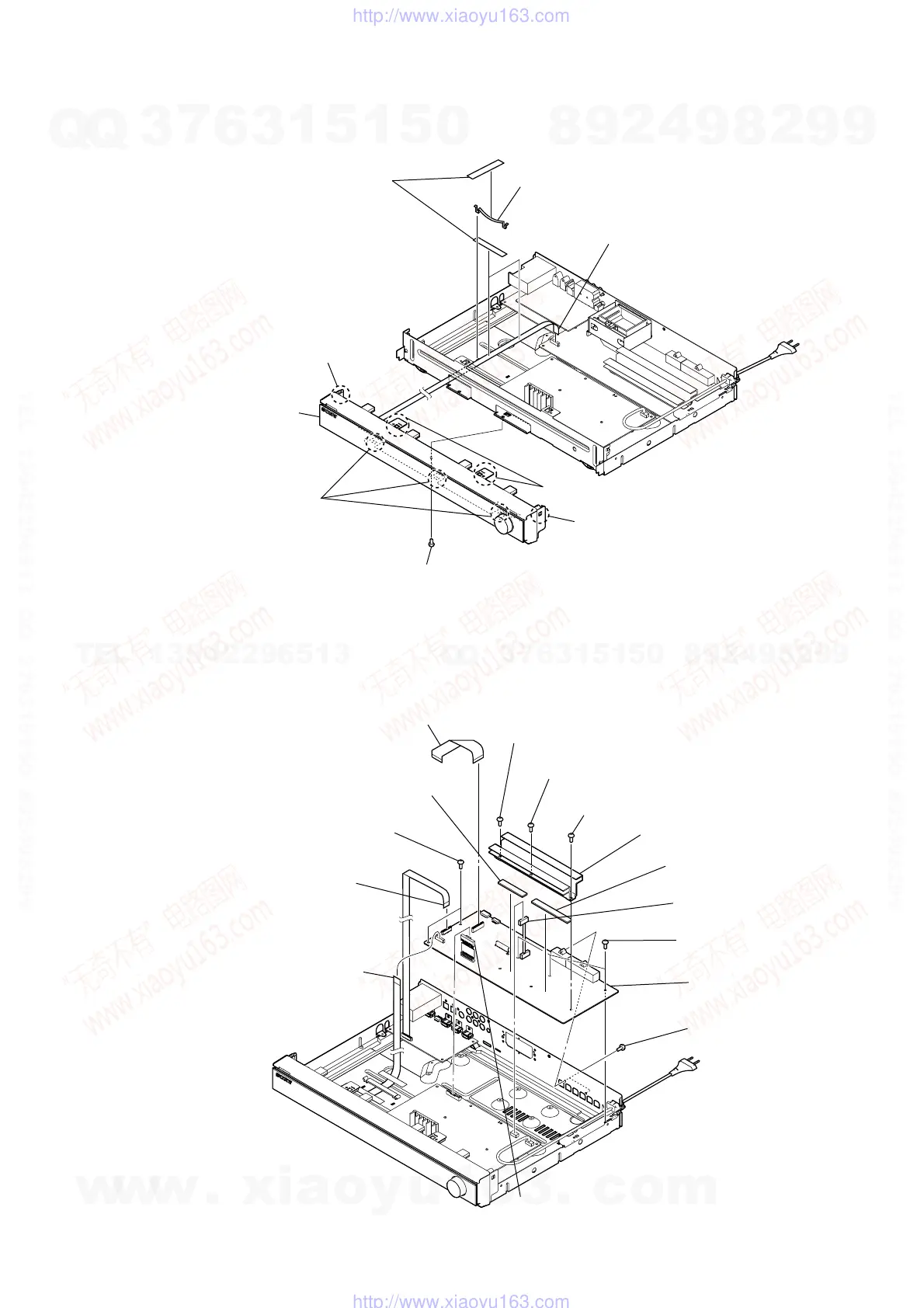

3-5. FRONT PANEL BLOCK
3-6. MAIN BOARD
 wire (flat type) (15 core)
(CNS700)
 three saranet
cushions
 clamp (FCR-60)
 screw
(BV3)
 two claws
 claw
 front panel block
 claw
 three claws
 screw
(BVTP3 × 14)
 heat sink (AMP)
RE MAIN board
RB radiation
sheet (AMP)
RT radiation
sheet (AMP)
 wire (flat type) (15 core)
(CNS700)
 wire (flat type) (25 core)
(CNS201)
 wire (flat type) (17 core)
(CN1003)
 connector
(CN906)
 connector
(CN904)
 two screws
(BV3)
 three screws
(BV3)
 screw
(BV3)
 screw
(BV3)
 two screws
(BV3)
