Sony STR-SL5 - Antenna Setup and Connection

6
GB

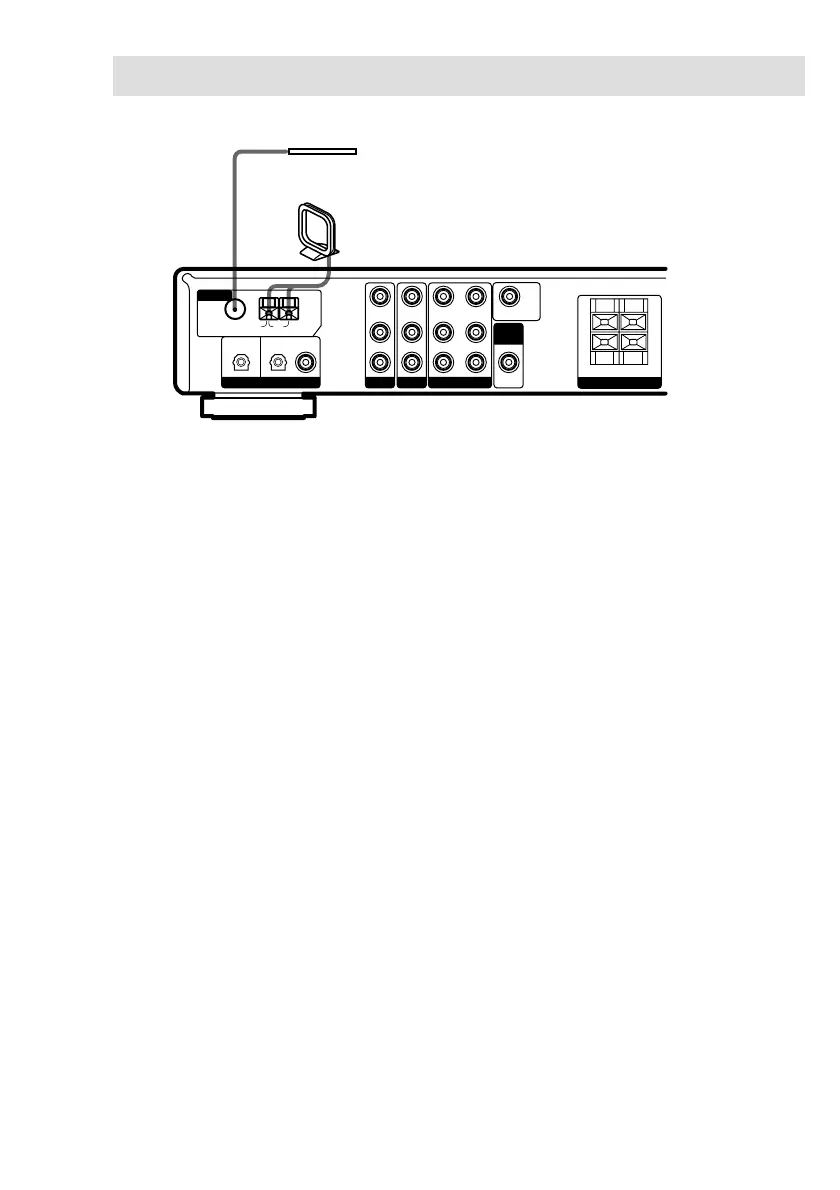

Antenna hookups
Notes on antenna hookups
• To prevent noise pickup, keep the AM loop
antenna away from the receiver and other
components.
• Be sure to fully extend the FM wire antenna.
• After connecting the FM wire antenna, keep it
as horizontal as possible.
• Do not use the U SIGNAL GND terminal for
grounding the receiver.
ANTENNA
L
R
VIDEO IN
IN IN INOUT
OUT
IMPEDANCE USE 8–16 Ω
R–FRONT–L
VIDEO IN VIDEO OUT VIDEO IN MONITOR OUT
75 Ω COAXIAL
FM
AM
U
VIDEO
DVD
TV/SAT
COAX IN
DVDTV/ SAT DIGITAL
SUB
WOOFER
SPEAKERS
+
–
+
–
OPTICAL IN OPTICAL IN
FM wire antenna
(supplied)
AM loop antenna
(supplied)
