Sony STR-V200 - Antenna Hookups

5
Getting Started
Getting Started
Important
If you connect an outdoor antenna, ground it against
lightning. To prevent a gas explosion, do not connect
the ground wire to a gas pipe.
Note
To prevent noise pickup, keep the AM loop antenna away
from the receiver and TV.
z If you have poor AM reception
Connect a 20 to 50 ft. insulated wire (not supplied) to
the ANTENNA AM terminal in addition to the AM loop
antenna. Try to extend the wire outdoors and keep it
horizontal.

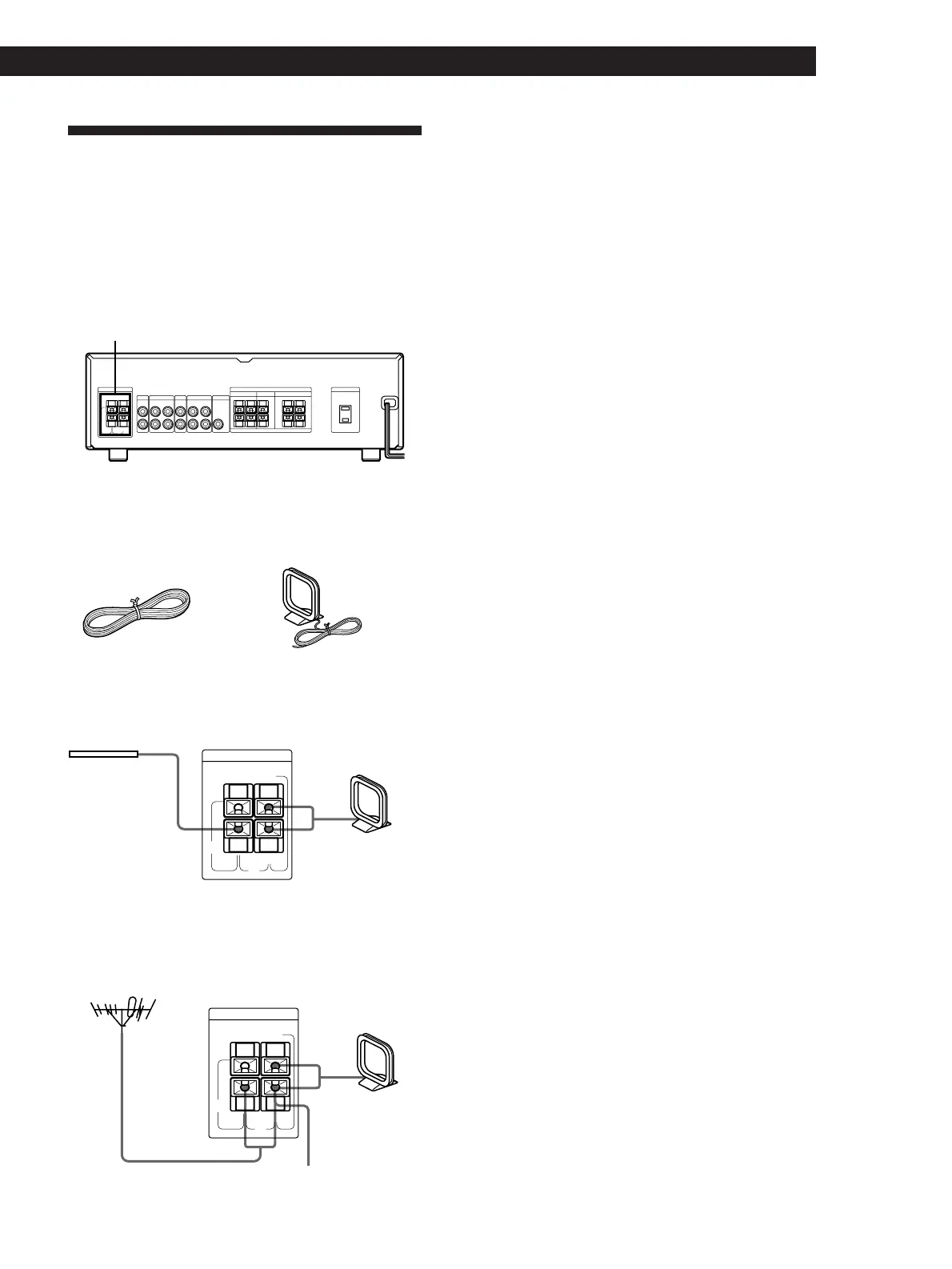

Antenna Hookups
Overview
This section describes how to connect AM and FM
antennas to the receiver. If you want to receive radio
broadcasts with the receiver, complete these
connections first, then go to the following pages.
AM
IN IN
REC
OUT
AUDIO
IN
AUDIO
IN
AUDIO
OUT
AUDIO
OUT
AC 120V 60Hz
SWITCHED 120V/1A MAX
IMPEDANCE USE 8-16Ω
ANTENNA
CD TAPE/MD
TV/DBS VIDEO MIX
REAR CENTER FRONT
SPEAKERS AC OUTLET
R
+
–
+
–
+
–
+
–
LRL
L
R
FM
75 Ω
FM
300 Ω
y
ANTENNA
What antennas will I need?
Hookups
FM wire antenna Receiver AM loop antenna
AM
ANTENNA
FM
75 Ω
FM
300 Ω
y
z If you have poor FM reception
Connect a 75-ohm coaxial cable (not supplied) to an FM
outdoor antenna.
FM outdoor antenna
Receiver
v
AM
ANTENNA
FM
75 Ω
FM
300 Ω
y
To ground
• FM wire antenna
(supplied) (1)
• AM loop antenna
(supplied) (1)
After connecting
the wire antenna,
keep it as
horizontal as
possible.
Ground wire
(not supplied)
