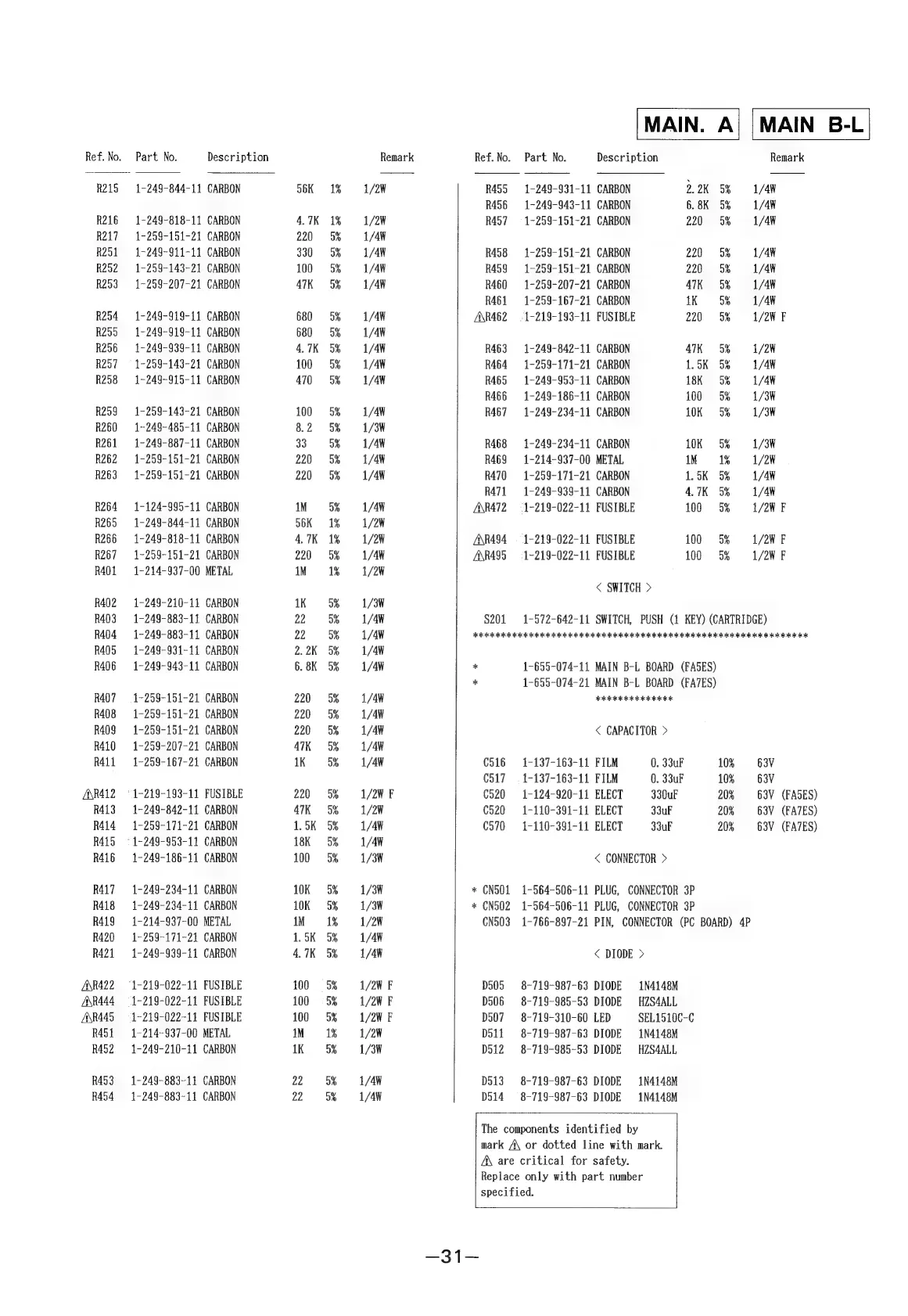

Sony TA-FA5ES - Electrical Parts List (Main Boards); Main A and Main B-L Board Parts

Ref. No. Part No. Description Remark Ref.No. Part No. Description Remark
R215 1-249-844-11 CARBON 58K 1% 1/2W R455 1-249-931-11 CARBON 2. 2K ny 1/4W
R456 1-249-943-11 CARBON 6.8K 5% 1/4W
R216 1-249-818-11 CARBON 4.7K 1% 1/2W R457. = 1-259-151-21 CARBON 220 5% 1/4W
R217. = 1-259-151-21 CARBON 220 5% 1/4W
R251 1-249~-911-11 CARBON 330 5% 1/4W R458 1-259-151-21 CARBON 220 5% 1/4W
R252 1-259-143-21 CARBON 100 5% 1/4W R459 1-259-151-21 CARBON 220 5% 1/4W
R253 1-259-207-21 CARBON 47K 5% 1/4W R460 1-259-207-21 CARBON ATK =% 1/4W
R461 1-259-167-21 CARBON 1K OM 1/4¥
R254 1-249-919-11 CARBON 680 5% 1/4W A\R462 =: 1-219-193-11 FUSIBLE 220 5% 1/2W F
R255 1-249-919-11 CARBON 680 5% 1/4W
R256 1-249-939-11 CARBON 4.7K 5% 1/4W R463 1-249-842-11 CARBON ATK 5h 1/2W
R257 = 1-259-143-21 CARBON 100 5% 1/4W R464 1-259-171-21 CARBON 1.5K 5% 1/4W
R258 1-249-915-11 CARBON 470 = 5% 1/4W R465 1-249-953-11 CARBON 18K 5% 1/4W
R466 1-249-186-11 CARBON i100 5% 1/3W
R259 1-259-143-21 CARBON 100 = 5% 1/4W R467 1~249-234-11 CARBON 10K 5% 1/3W
R260 1-249-485-11 CARBON 8.2 5% 1/3W
R261 1-249-887-11 CARBON 33 5% 1/4W R468 1-249-234-11 CARBON 10K 5% 1/3W
R262 1-259-151-21 CARBON 220 5% 1/4W R469 = 1-214-937-00 METAL 1M 1h 1/20
R263 1-259-151-21 CARBON 220 «5% 1/4W R470 =1-259-171-21 CARBON 1.5K 5% 1/4W
R471 1-249-$39-11 CARBON 4.7K 5% 1/4W
R264 1-124-995-11 CARBON 1M yA 1/4W ZN\R472, =: 1-219-022-11 FUSIBLE 100 «5% 1/2W F
R265 1-249-844-11 CARBON 56K = «1% 1/2
R266 1-249-818-11 CARBON 4,7K 1% 1/2W A\R494 =: 1-219-022-11 FUSIBLE 100 «5% 1/26 F
R267 1-259-151-21 CARBON 220 5% 1/4W A\R495 =: 1-219-022-11 FUSIBLE 100 5% 1/2W F
R401 1-214-937-00 METAL iM 1% 1/2W
< SWITCH >
R402 1-249-210-11 CARBON 1K o% 1/3W
R403 1-249-883-11 CARBON 22 Hy 1/4W $201 1-572-642-11 SWITCH, PUSH (1 KEY) (CARTRIDGE)
R404 1-249-883-11 CARBON 22 5% 1/4W SSC COO CIO GC foo oo moi iooiol ok dala ioiok oi iiolok iefotokotototokok tok x
R405 1-249-931-11 CARBON 2.2K 5% 1/4W
R406 1-249-943-11 CARBON 6.8K 5% 1/4W * 1-655-074-11 MAIN B-L BOARD (FASES)
* 1-655-074-21 MAIN B-L BOARD (FA7ES)
R407 = 1-259-151-21 CARBON 220 5% 1/4W Feb ik
R408 1-259-151-21 CARBON 220 = 5% 1/4W
R409 1-259-151-21 CARBON 220 5% 1/4W < CAPACITOR >
R410 1-259-207-21 CARBON ATK 5% 1/4W
R411 1-259-167-21 CARBON 1K 5% 1/4W C516 = =1-137-163-11 FILM 0. 33uF 10% 63V
C517. = 1-137-163-11 FILM 0. 33uF 10% 63V
A\R412 =: 1-219-193-11 FUSIBLE 220 5% 1/2W F C520 =1-124-920-11 ELECT 330uF 20% 63V (FADSES)
R413 1-249-842-11 CARBON 47K 5% 1/2W C520 = =1-110-391-11 ELECT 33uF 20% 63V (FATES)
R414 = 1-259-171-21 CARBON 1.5K 5% 1/4W C570 =1-110-391-11 ELECT 33uF 20% 63V (FATES)
R415 = 1-249-953-11 CARBON 18K 5% 1/4¥
R416 1-249-186-11 CARBON 100 = 5% 1/3W < CONNECTOR >
R417 =1-249-234-11 CARBON 10K 5% 1/3W * CND01 1-564-506-11 PLUG, CONNECTOR 3P
R418 1-249-234-11 CARBON 10K 5% 1/3W * (N502 1-564-506-11 PLUG, CONNECTOR 3P
R419 = 1-214-937-00 METAL 1M 1% 1/2W CN503 1-766-897-21 PIN, CONNECTOR (PC BOARD) 4P
R420 =1-259-171-21 CARBON 1.5K 5% 1/4W
R421 1-249-939-11 CARBON 4.7K 5% 1/4W < DIODE >
A\R422 =: 1-219-022-11 FUSIBLE 100 = 5% 1/2W F D505 8-719-987-63 DIODE 1N4148M
A\R444 =: 1-219-022-11 FUSIBLE 100 = 5% 1/2W F D506 8-719-985-53 DIODE HZS4ALL
ANR445 =: 1-219-022-11 FUSIBLE 100 = 5% 1/2W F D507 =8-719-310-60 LED SEL1510¢-C
R451 = 1-214-937-00 METAL IM 1% 1/2W D511 8-719-987-63 DIODE 1N4148M
R452 1-249-210-11 CARBON 1K om 1/3¥ D512 =8-719-985-53 DIODE HZS4ALL
R453 1-249-883-11 CARBON 22 Ky 1/4W D513. 8-719-987-63 DIODE 1N4148M
R454 1-249-883-11 CARBON 22 ny 4 1/4W D514 = 8-719-987-63 DIODE 1N4148M
The components identified by
mark A\ or dotted line with mark.
A\ are critical for safety.
Replace only with part number
specified.
—31-—
