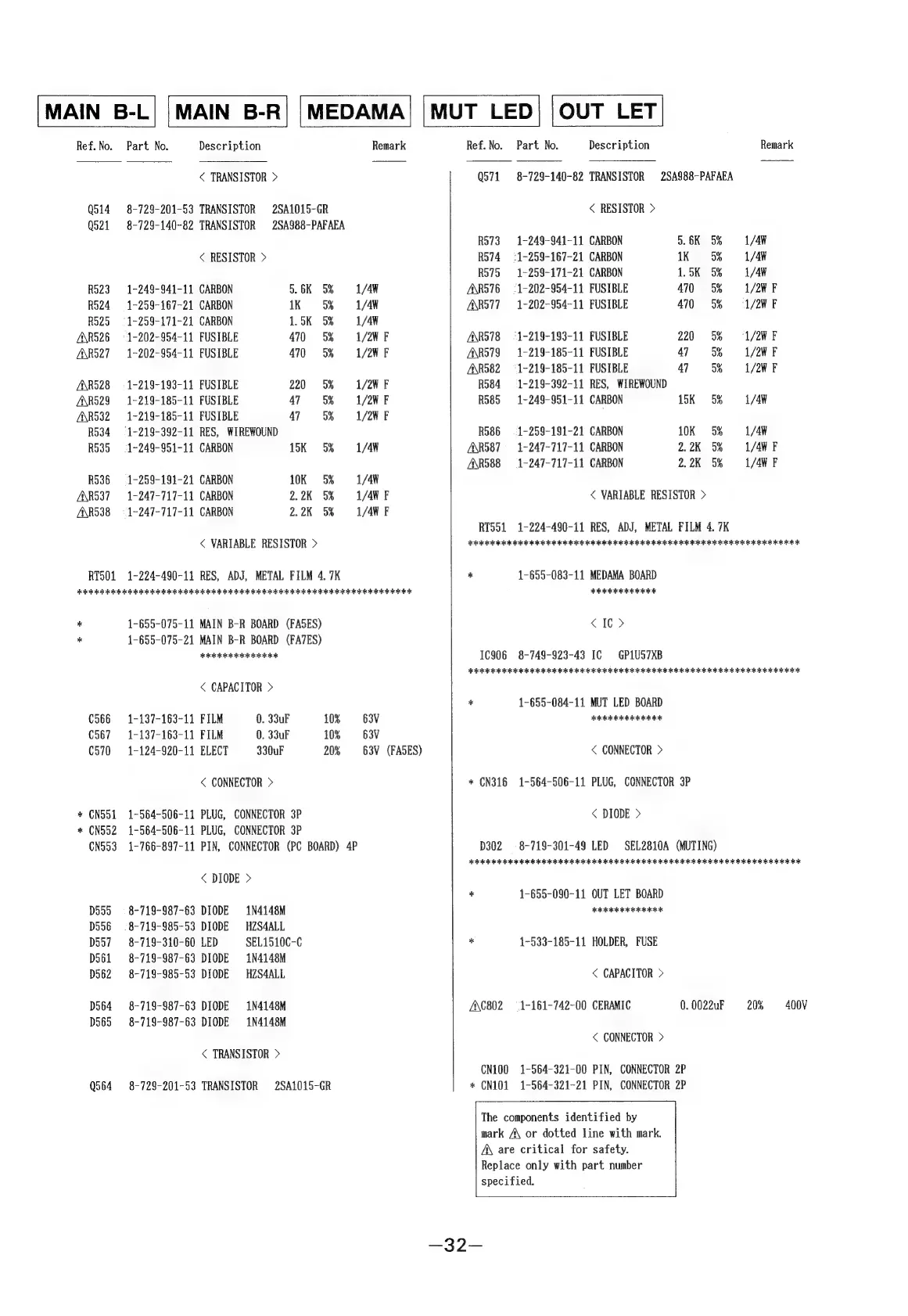

Sony TA-FA5ES - Electrical Parts List (Various Boards); Main B-L, B-R, Medama, Mut LED, Out Let Parts

Ref. No. Part No. Description Remark
< TRANSISTOR >
Q514 8-729-201-53 TRANSISTOR 2SA1015-GR
Q521 8-729-140-82 TRANSISTOR 2SA988-PAFAEA
< RESISTOR >
R523: 1-249-941-11 CARBON 5.6K 5% 1/4W
R524 = 1-259-167-21 CARBON 1K 5% 41/4W
R525 = 1-259-171-21 CARBON 1.5K 5% 1/4W
A\R526 ==: 1-202-954-11 FUSIBLE 470 3% 1/20 F
A\R527 ~—-1-202-954-11 FUSIBLE 470 5% 1/20 F
A\R528 = 1-219-193-11 FUSIBLE 220 5% 1/2WF
ANR529—-1-219-185-11 FUSIBLE 47 5% 1/2W F
ANR532—-1-219-185-11 FUSIBLE 47 5% 1 /2W F
R534 =: 1-219-392-11 RES, WIREWOUND
R535 =: 1-249-951-11 CARBON 15K 5% 41/4W
R536 =: 1-259-191-21 CARBON 10K 5% 1/4W
A\R537—s-1-247-717-11 CARBON 2.2K 5% 1/48 F
A\R538 ==: 1-247-717-11 CARBON 2.2K 5% 1/4WF
< VARIABLE RESISTOR >
RT501 1-224-490-11 RES, ADJ, METAL FILM 4. 7K
FISICA AOR FR IO III A RIOR IIR ARR IOI OR IOI
* 1-655-075-11 MAIN B-R BOARD (FASES)
* 1-655-075-21 MAIN B-R BOARD (FA7ES)
FOO IO TOO IK
< CAPACITOR >
C566 1-137-163-11 FILM 0. 33uF 10% 63V
C567 1-137-163-11 FILM Q. 33uF 10% 63V
C570 = =1-124-920-11 ELECT 330uF 20% 63V (FASES)
< CONNECTOR >
*
CN551 1-564~-506-11 PLUG, CONNECTOR 3P
CN552 1-564-506-11 PLUG, CONNECTOR 3P
CN553 1-766-897-11 PIN, CONNECTOR (PC BOARD) 4P
*
< DIODE >
D555 = 8-719-987-63 DIODE 1N4148M
D556 = 8-719-985-53 DIODE HZS4ALL
D557 = 8-719-310-60 LED SEL1510€-€
D561 8-719-987-63 DIODE 1N4148M
D562 8-719-985-53 DIODE HZS4ALL
D564 8-719-987-63 DIODE 1N4148M
D565 8-719-987-63 DIODE 1N4148M
< TRANSISTOR >
Q564 8-729-201-53 TRANSISTOR 2SA1015-GR
Ref. No. Part No. Description Remark
Q571 8-729-140-82 TRANSISTOR 2SA988-PAFAEA
< RESISTOR >
R573: 1-249-941-11 CARBON 0.6K 5% 1/4W
R574 =: 1-259-167-21 CARBON 1K 5% 1/4W
R575: 1-259-171-21 CARBON 1.5K 5% 1/4W
A\R576 ==: 1-202-954-11 FUSIBLE 470 5% = 1/20 F
A\R577_—s- 1-202-954-11 FUSIBLE 470 5% =: 1/2W F
ANR578 =: 1-219-193-11 FUSIBLE 220 5% =: 1/2W F
ANRS79 ~—-1-219-185-11 FUSIBLE 47 5% 1/2 F
A\R582 =: 1-219-185-11 FUSIBLE 47 5% 1/20 F
R584 =: 1-219-392-11 RES, WIREWOUND
R585 =1-249-951-11 CARBON 15K 5% 1/48
R586 =. 1-259-191-21 CARBON 10K 5% 1/4W
A\R587 ~~ 1-247-717-11 CARBON 2.2K 5% 1/40 F
A\R588 =: 1-247-717-11 CARBON 2.2K 5% 1/40 F
< VARIABLE RESISTOR >
RT551 1-224-490-11 RES, ADJ, METAL FILM 4. 7K
ROR ORO I IO IORI IR RIO RR RR RIOR og RC
6d 1-655-083-11 MEDAMA BOARD
Fel toiioiokiotokk
< IC >
1¢906 8-749-923-43 IC GP1U57XB
FESO IOI GO II ICO III I II IO RI OR OR RK
‘ 1-655-084-11 MUT LED BOARD
Jobber
< CONNECTOR >
* (N316 1-564-506-11 PLUG, CONNECTOR 3P
< DIODE >
D302 © 8-719-301-49 LED SEL2810A (MUTING)
Io lk lio I TO I IG I i i i kk kkk te kodok gk dk
* 1-655-090-11 OUT LET BOARD
Joloeoiooiooiok
* 1-533-185-11 HOLDER, FUSE
< CAPACITOR >
ANC802 =: 1-161-742-00 CERAMIC 0.0022uF 20% 400V
< CONNECTOR >
CN100 1-564-321-00 PIN, CONNECTOR 2P
* (N101 1-564-321-21 PIN, CONNECTOR 2P
The components identified by
mark A\ or dotted line with mark
A\ are critical for safety.
Replace only with part number
specified.
