Sony TA-FA5ES - Circuit Board Layouts; Circuit Board Location Overview

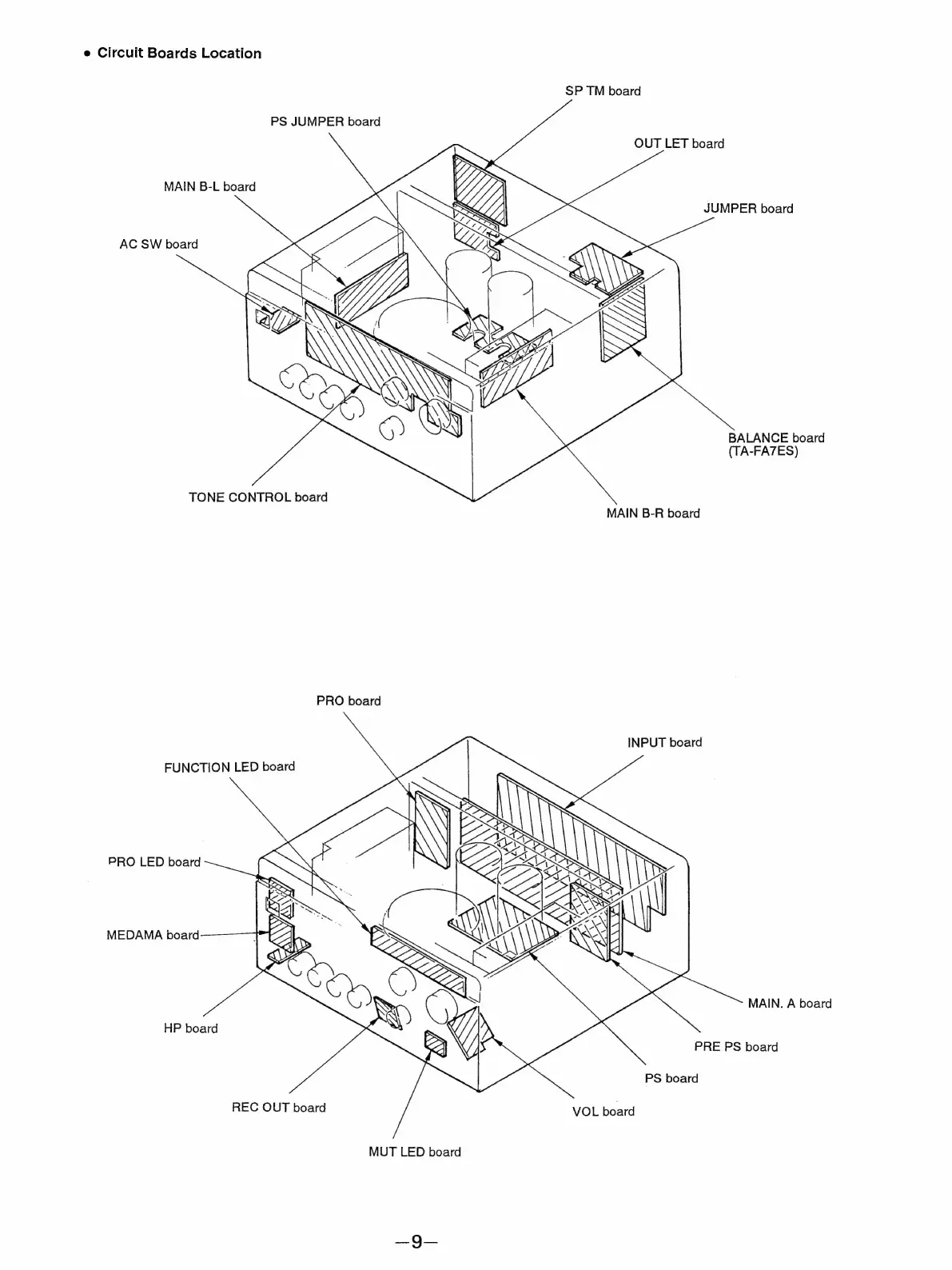

e Circuit Boards Location
SP TM board
PS JUMPER board
OUT LET board
MAIN B-L board
JUMPER board
AC SW board
BALANCE board
(TA-FA7ES)
TONE CONTROL board
MAIN B-R board
PRO board
INPUT board
FUNCTION LED board
PRO LED board
yy
Wy
XS
\Y/ p.
=
nwa
MEDAMA board
MAIN. A board
HP board
PRE PS board
PS board
REC
OUT
board
VOL
board
MUT LED board
