TA-FE370/FE570

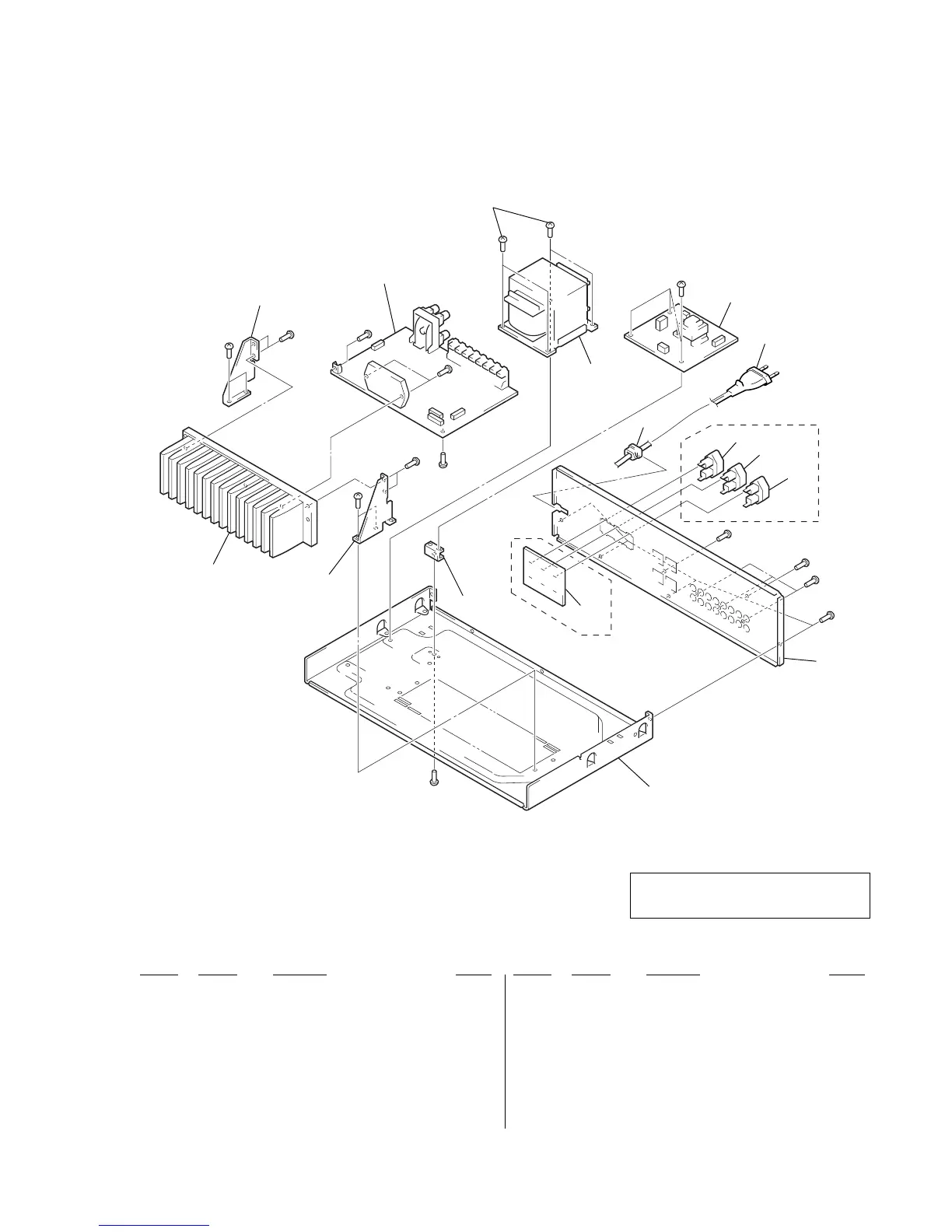

5-3. CHASSIS SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 A-4476-571-A MAIN BOARD, COMPLETE (FE570)
101 A-4476-581-A MAIN BOARD, COMPLETE (FE370)
102 4-900-386-01 SCREW
103 1-681-418-11 STANDBY BOARD
0 104 1-575-651-21 CORD, POWER
* 105 3-703-244-00 BUSHING (2104), CORD
106 4-233-359-01 PANEL, BACK (FE570: AEP)
106 4-233-359-11 PANEL, BACK (FE570: UK)
106 4-233-359-21 PANEL, BACK (FE370: AEP)
106 4-233-359-31 PANEL, BACK (FE370: UK)
107 1-681-425-11 AC OUTLET BOARD (AEP)
0 CN4 1-526-794-11 OUTLET, AC (AEP)
0 CN5 1-526-794-11 OUTLET, AC (AEP)
0 CN6 1-526-794-11 OUTLET, AC (AEP)
0 T1 1-437-254-11 TRANSFORMER, POWER (FE570)
0 T1 1-437-255-11 TRANSFORMER, POWER (FE370)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
#2 7-685-650-79 SCREW +BVTP 3X16 TYPE2 N-S
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
