13

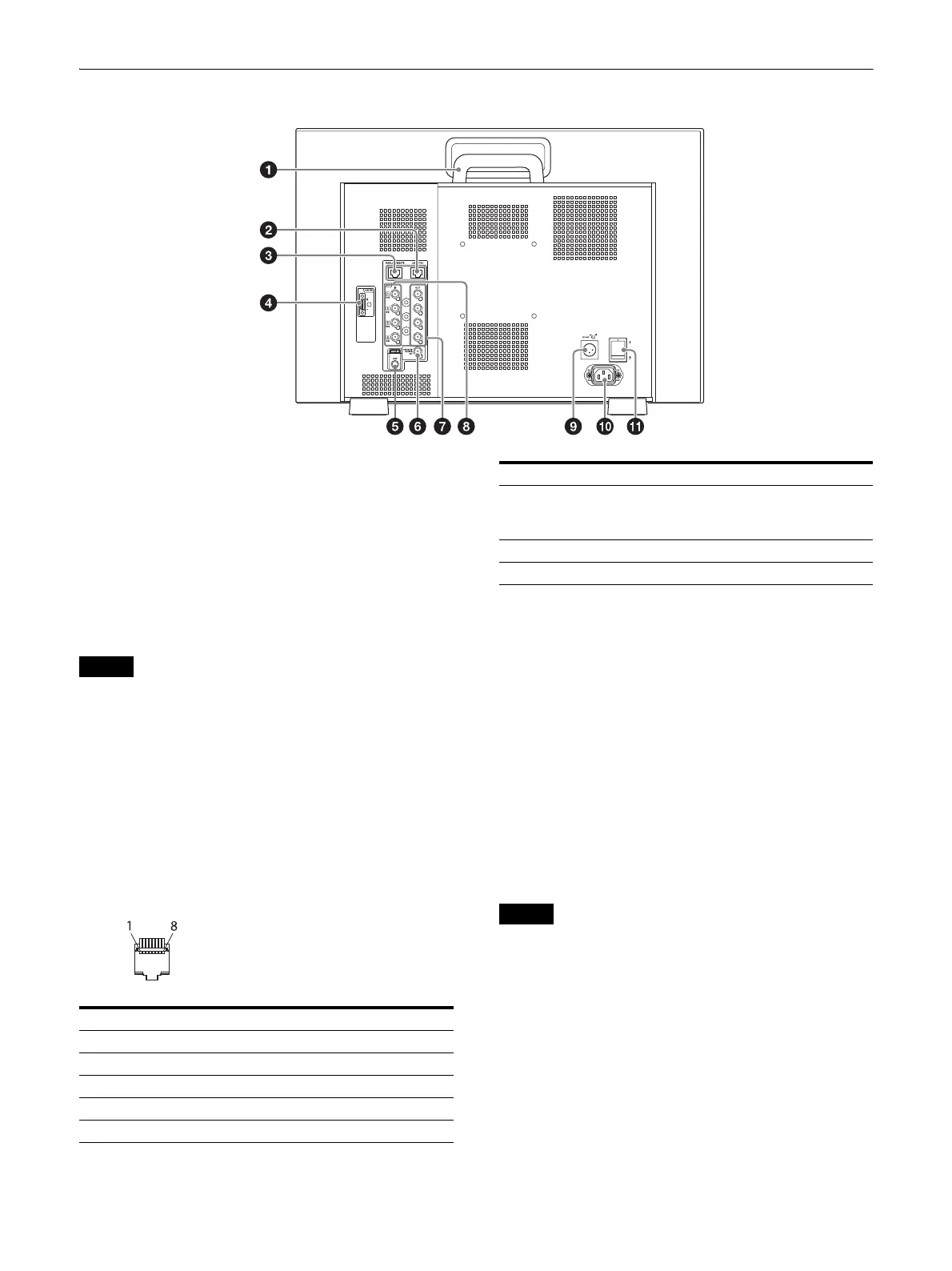

Rear Panel
Handle (For PVM-X2400 only)
When using the handle on PVM-X1800, attach
the supplied handle according to the steps on
page 16.
LAN (10/100) connector
Connect to the controller or an external device by
using a 10BASE-T/100BASE-TX LAN cable
(shielded type, optional).
The connection speed may be affected by the
network system. This unit does not guarantee
the communication speed or quality of 10BASE-
T/100BASE-TX.
PARALLEL REMOTE connector (RJ-45, 8-
pin)
Forms a parallel control switch and controls this
unit externally.
Pin assignment
Wiring required to use the Remote Control
Connect the function you want to use with a
Remote Control to the Ground (Pin 5).
HDMI IN (HDMI input) connector
Input connector for HDMI signals.
HDMI (High-Definition Multimedia Interface) is
an interface that supports both video and audio
on a single digital connection, allowing you to
enjoy high quality digital picture and sound. The
HDMI specification supports HDCP (High-
bandwidth Digital Content Protection), a copy
protection technology that incorporates coding
technology for digital video signals.
To input the HDMI signal equivalent to 4K, use an
HDMI cable bearing the Premium High Speed
logo within a length of 3 meters (Sony product
recommended).
To input other signals, we also recommend using
a Premium High Speed HDMI cable within a
length of 3 meters.
AUDIO output connector (stereo mini jack)
The input audio signal set in the currently
selected channel is output.
Pin number Functions
1 “Ch.1” is specified.
2 “Ch.2” is specified.
3 “Ch.3” is specified.
4 “Ch.4” is specified.
5GND
6 All the markers set under “Marker
Preset” in the “User Preset Setting”
menu are all turned on at once.
7 Tally Green
8 Tally Red
Pin number Functions
