31

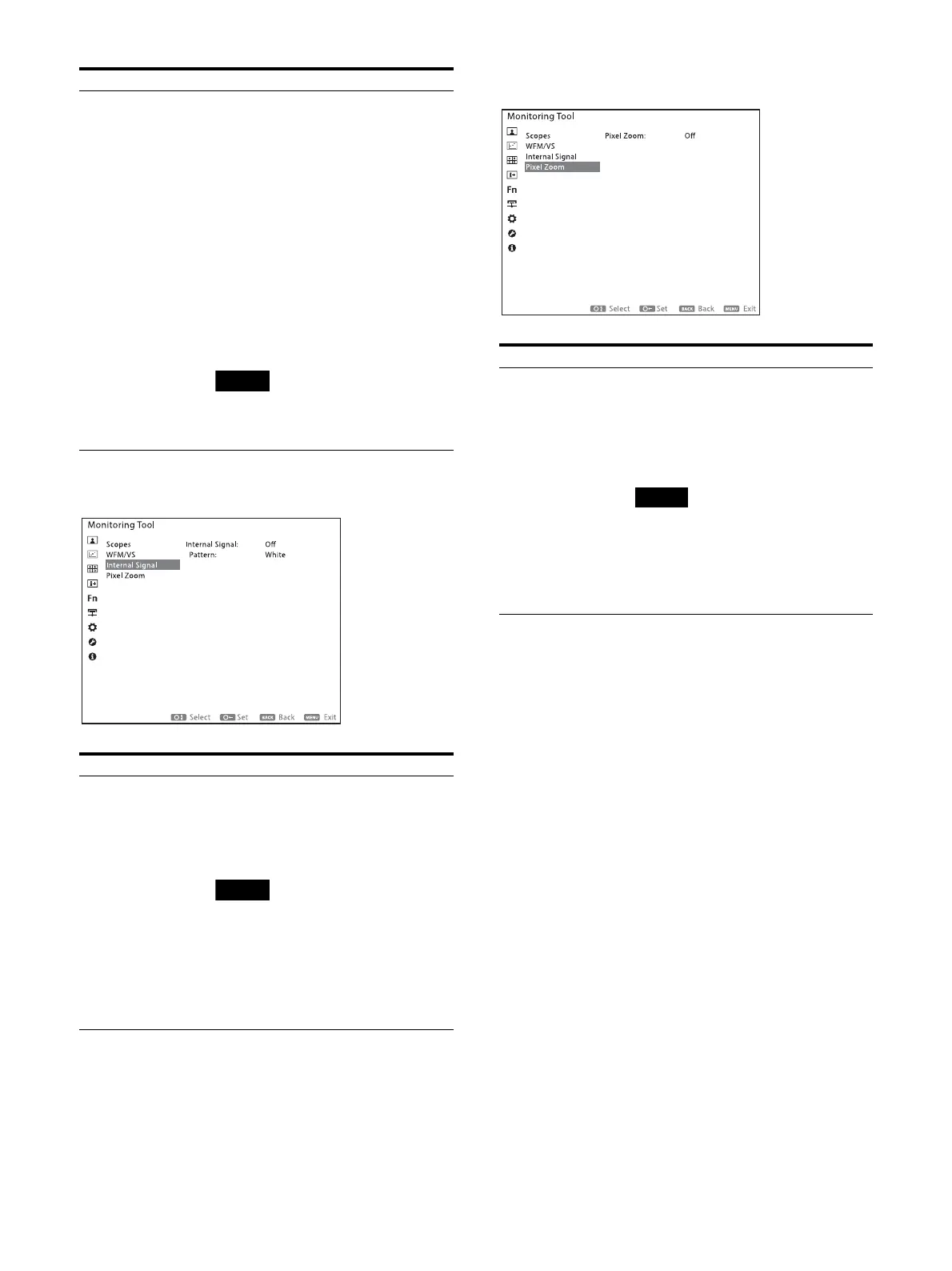

Internal Signal
Pixel Zoom
Line Select On: Displays the waveform of the
line specified for “Position” as
described below in WFM (Wave
Form Monitor) and Vector
(vector scope).
Off: Displays the normal waveform.
When “On” is selected
Color: Select the display color of the
line.
Position: Set where the line is to be
displayed. Turn the ADJUST
knob to set the position.
Increasing the value moves the
line downwards and decreasing
the value moves it upwards.
If “Line Select” is “On,” the line is
displayed even when “WFM” is set to
“Off” under “Display” of “Scopes.”
Submenu Setting
Internal Signal Turns the internal signal display On/
Off.
On: The internal signal is displayed.
Off: The internal signal is not
displayed.
While the internal signal is displayed,
Auto Power Down is not available.
Pattern Select the pattern of the internal
signal.
Gray
White
Color Bars
Submenu Setting
Submenu Setting
Pixel Zoom Sets whether to use the pixel zoom.
When using the pixel zoom, the center
part of the signal is doubled without
scaling interpolation processing. More
sensitive areas of the signal can be
enlarged for examination.
The pixel zoom can be used only
when signals with a resolution
greater than or equal to 1920 × 1080
are input.
Turning the Pixel Zoom to “On”
automatically activates Native Scan.
To Next Page
