Sony TRINITRON GDM-500PS - Service Position; H and J Boards Removal

GDM-500PS/500PST/500PST9

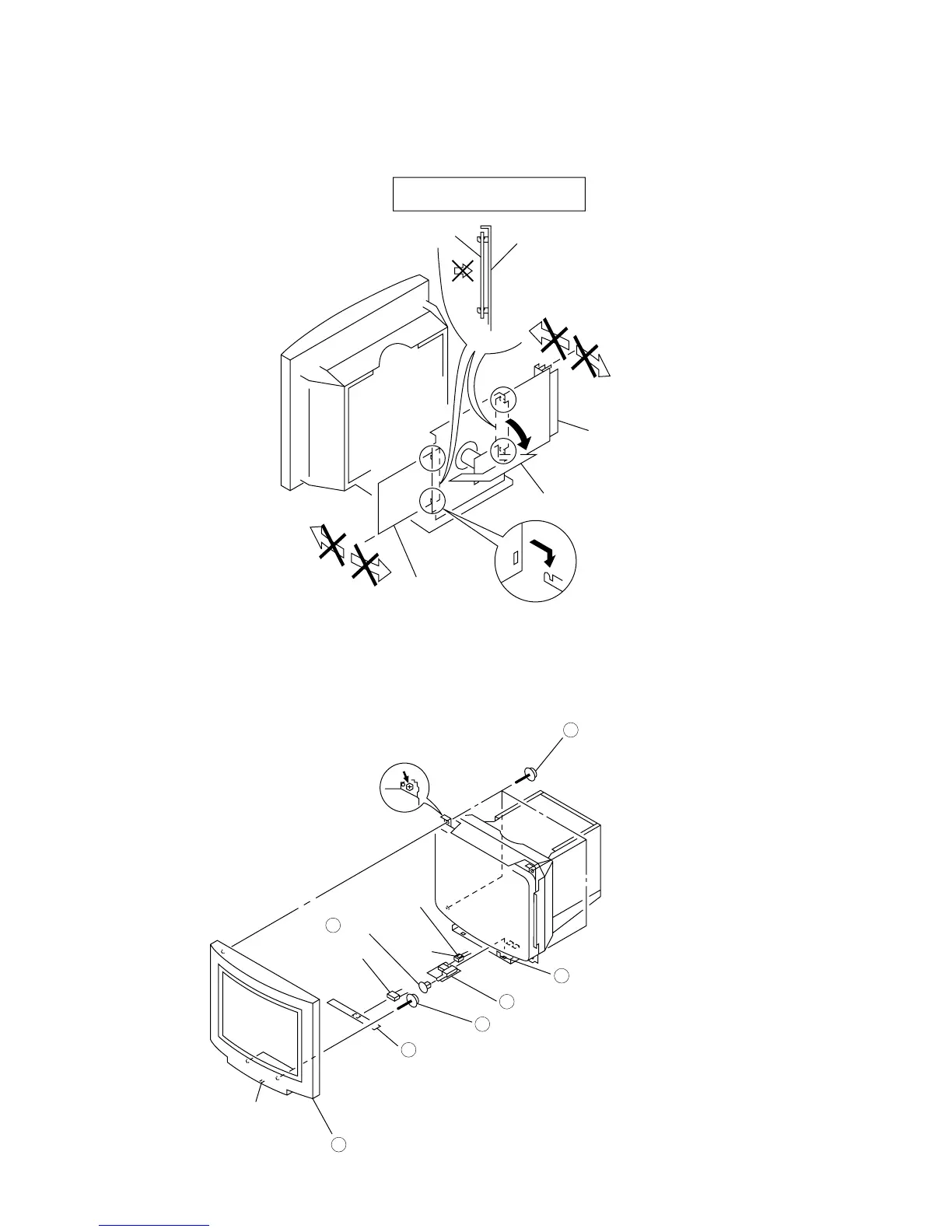

2-7. SERVICE POSITION
2-8. H AND J BOARDS REMOVAL
2-4
D board (Refer to 2-2.)
Rear shield
D,G boards
A or A3 board (Refer to 2-4.)
G board
(Refer to 2-3.)
CAUTION : SHORT
*
If the claw is hooked,
opening and closing
the board is impossible.
Do not try to do it by force.
*
If the claw is hooked,
opening and closing
the board is impossible.
Do not try to do it by force.
Four screws
(Tapping screw 5: except AEP
for UK-made set )
(Self tapping screw 5: AEP for
UK-made set)
CN801
H board
Two screws
(+ BVWHTP 3 x 12)
Bezel
1
2
3
4
Claw
J board
7
CN891
Shaft
Claw
Claw
5
6
