Sony TRINITRON GDM-500PS - 6 Exploded Views; Chassis

GDM-500PS/500PST/500PST9
1 X-4035-037-1 BEZEL ASSY
[EQ,SH,U/C/AEP for Japan-made set] 2,3
1 X-4035-513-1 BEZEL ASSY
[U/C for USA-made set] 2,3
1 X-4200-449-1 BEZEL ASSY [AEP for UK-made set] 2,3
2 4-061-598-01 BUTTON POWER
[EQ,SH,U/C/AEP for Japan-made set]
2 4-064-127-01 BUTTON POWER [U/C for USA-made set]
2 4-204-321-01 BUTTON, POWER [AEP for UK-made set]
3 4-042-593-01 SPRING, COMPRESSION
[except U/C for USA-made set]
3 4-042-593-11 SPRING, COMPRESSION [U/C for USA-made set]
4 * 8-933-278-00 H BOARD, COMPLETE
5 4-029-432-01 SCREW (3X12), (+) BVWHTP
6 4-365-808-01 SCREW (5), TAPPING [except AEP for UK-made set]
6 4-203-648-01 SCREW (5), SELF TAPPING [AEP for UK-made set]
7 * 1-694-313-12 TERMINAL BOARD ASSY, I/O
8 4-389-025-01 SCREW (M4) (EXT TOOTH WASHER)
9 ! 1-251-382-12 INLET, AC 3P (WITH NOISE FILTER)
10 4-052-345-01 SCREW, (3X8) (+K), TAPPING
11 4-060-368-12 SHEET, CONNCETOR
12 * 8-933-275-00 A BOARD, COMPLETE
12 * 8-933-364-00 A3 BOARD, COMPLETE
13 * 8-933-276-00 D BOARD, COMPLETE 14
14 ! X-4035-170-1 TRANSFORMER ASSY, FLYBACK (NX-4142//J1D4)
15 4-062-115-01 SCREW +P 3.5X20 TYPE2
16 * 4-060-359-01 HOLDER, PRINTED CIRCUIT BOARD
17 * 3-701-903-11 HOLDER, PRINTED CIRCUIT BOARD
• Items marked " * " are not stocked since
they are seldom required for routine
service. Some delay should be anticipated
when ordering these items.
• Items with no part number and no
description are not stocked because they
are seldom required for routine service.
• The construction parts of an assembled
part are indicated with a collation number
in the remark column.

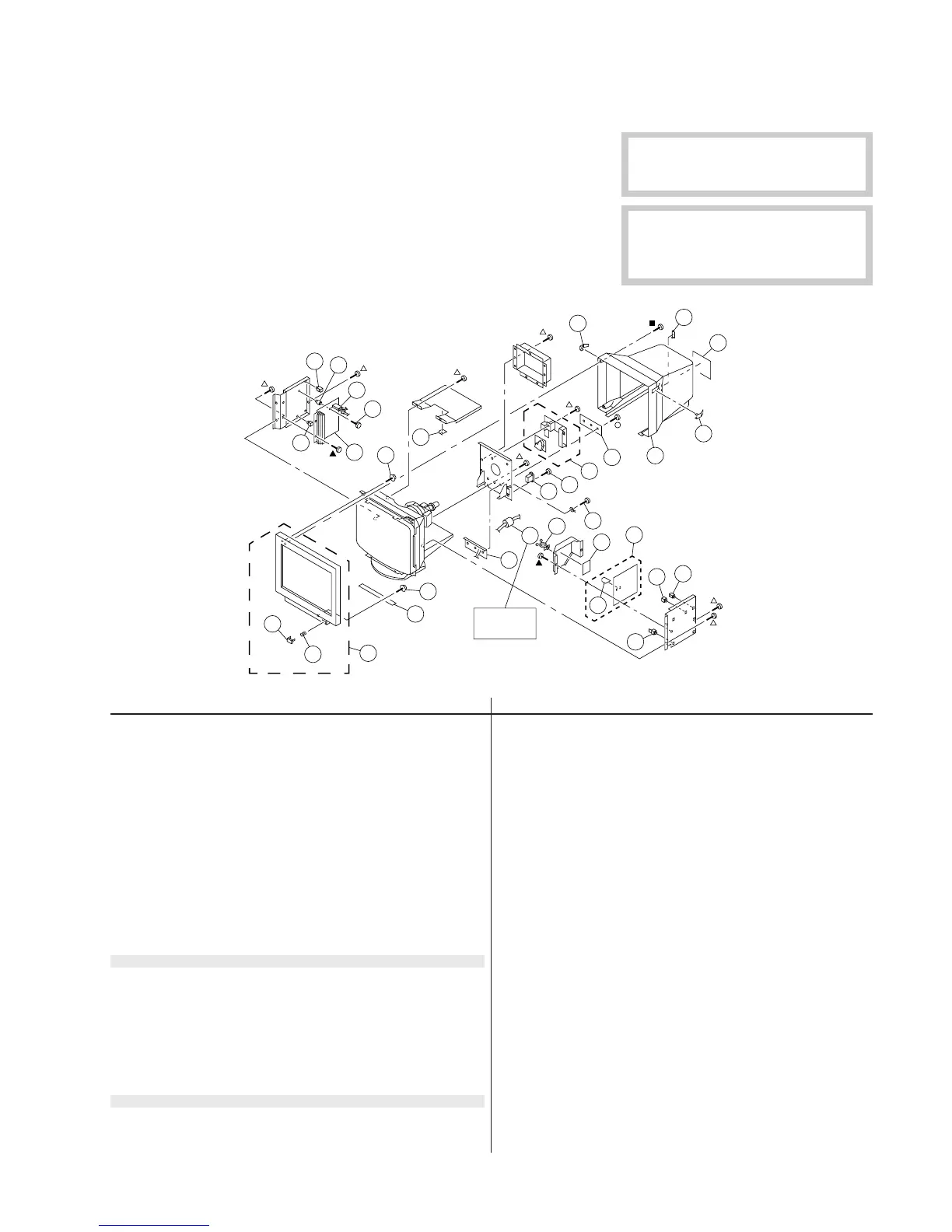

6-1. CHASSIS
4 7-685-647-79 +BVTP 3X10
p 7-685-663-71 +BVTP 4X16
® 7-685-872-09 +BVTT 3X8
¢ 7-685-881-09 +BVTT 4X8
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
6-1
SECTION 6
EXPLODED VIEWS
The components identified by shading
and mark
¡ are critical for safety.
Replace only with part number specified.
Les composants identifiés par un tramé
et une marque
¡ sont critiques pour la
sécurité. Ne les remplacer que par une
pièce portant le numéro spécifié.
10
11
21
1
12
22
2
13
23
3
14
24
15
26
25
5
16
6
17
7
28
18
19
9
20
4
17
18
8
23
27
29
U/C for
USA-made set
18 * 4-382-848-01 HOLDER, PRINTED CIRCUIT BOARD
19 * 3-703-141-00 HOLDER, PRINTED CIRCUIT BOARD
20 * 8-933-277-00 G BOARD, COMPLETE 21
21 * 8-933-269-00 GA BOARD, COMPLETE
22 4-061-604-01 CABINET [EQ,SH,U/C/AEP for Japan-made set]
22 4-064-123-01 CABINET [U/C for USA-made set]
22 4-204-317-31 CABINET [AEP for UK-made set]
23 4-061-605-01 COVER, SCREW
[EQ,SH,U/C/AEP for Japan-made set]
23 4-064-132-01 COVER, SCREW [U/C for USA-made set]
23 4-204-327-31 COVER, SCREW [AEP for UK-made set]
24 4-060-358-21 COVER, ECS [EQ,SH,U/C/AEP for Japan-made set]
24 4-061-155-11 COVER, ECS [U/C for USA-made set]
24 4-204-328-31 COVER, ECS [AEP for UK-made set]
25 * 4-062-585-01 LABEL, INFORMATION [U/C for Japan-made set]
25 * 4-062-586-01 LABEL, INFORMATION
[500PST AEP for Japan-made set]
25 * 4-064-134-01 LABEL, INFORMATION [U/C for USA-made set]
25 * 4-064-599-01 LABEL, INFORMATION [EQ]
25 * 4-064-598-01 LABEL, INFORMATION [SH]
25 * 4-204-329-02 LABEL, INFORMATION
[500PST AEP for UK-made set]
25 * 4-204-840-01 LABEL, INFORMATION
[500PST9 AEP for UK-made set]
25 4-070-098-01 LABEL, INFORMATION
[500PST9 AEP for Japan-made set]
26 * 4-063-711-01 SUPPORT, HV CABLE
27 * 4-061-694-01 SHEET, INSULATE
28 1-543-793-11 FITER, CLAMP (FERRITE CORE)
[U/C for USA-made set]
29 2-132-434-01 CLIP, WIRE
Note: A complete board and A3 complete board have
interchangeability though it is a little different because
the material of the circuit board is different.
