Sony TRINITRON KV-16WT1 - Picture Tube Removal

KV-16WT1

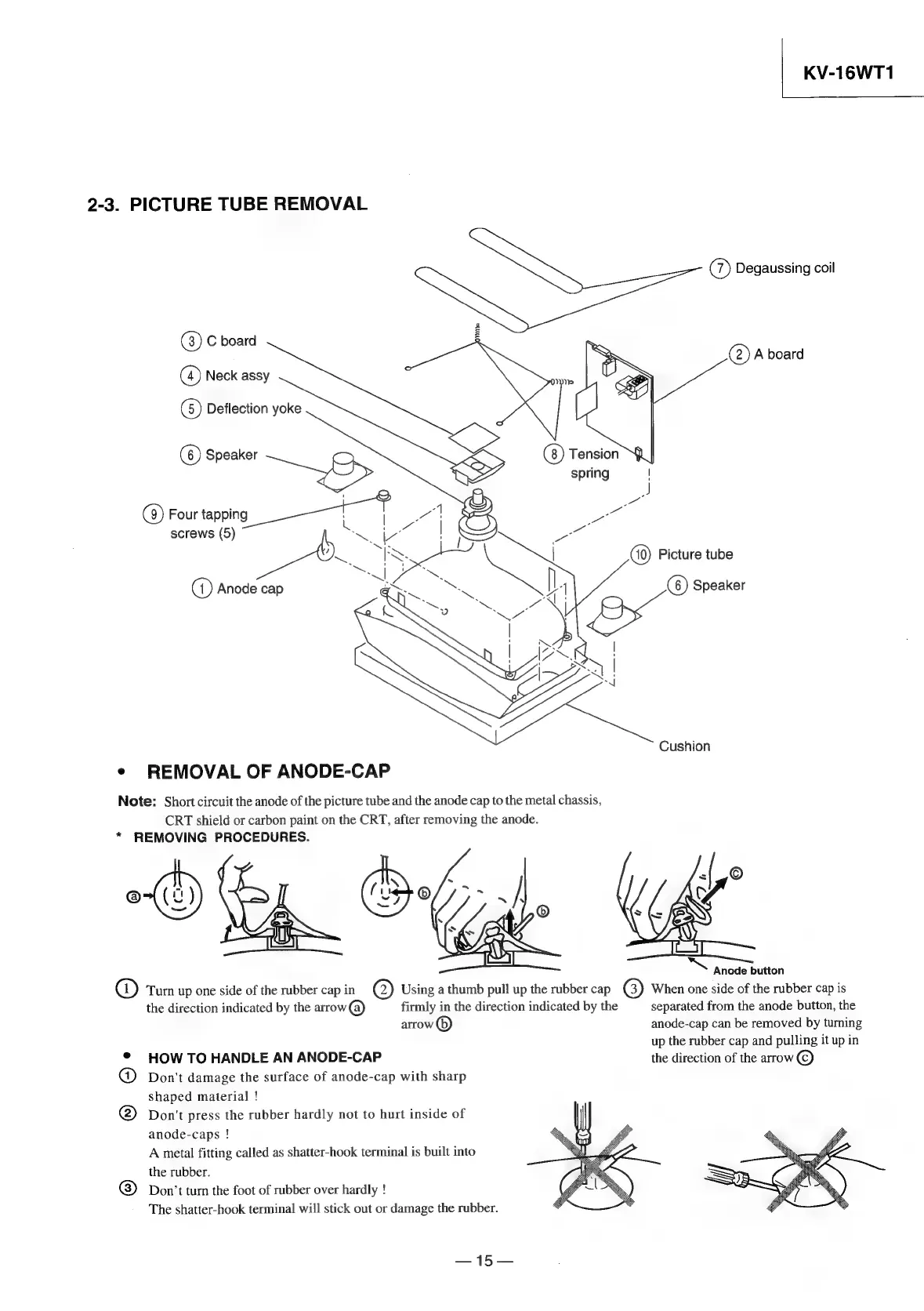

2-3. PICTURE TUBE REMOVAL
(3) C board
(4) Neck assy
(G) Deflection yoke
(6) Speaker YD
@) Four en ae al
on
J
i | a
screws (5) NY 4 ;
_ wR, (10) Picture tube
~N Pa
~~ Se
(4) Anode cap
@) Degaussing coil
Cushion
e REMOVAL OF ANODE-CAP
Note: Short circuit the anode of the picture tube and the anode cap to the metal chassis,
CRT shield or carbon paint on the CRT, after removing the anode.
* REMOVING PROCEDURES.
G) Turn up one side of the rubber cap in Q) Using a thumb pull up the rubber cap GB) When one side of the rubber cap is
the direction indicated by the arrow (a) firmly in the direction indicated by the separated from the anode button, the
arrow ® anode-cap can be removed by turning
up the rubber cap and pulling it up in
® HOW TO HANDLE AN ANODE-CAP the direction of the arrow ©
@® Don't damage the surface of anode-cap with sharp
shaped material !
@ Don't press the rubber hardly not to hurt inside of
anode-caps !
A metal fitting called as shatter-hook terminal is built into
the rubber.
@ Don’t turn the foot of rubber over hardly !
The shatter-hook terminal will stick out or damage the rubber.
—15—
