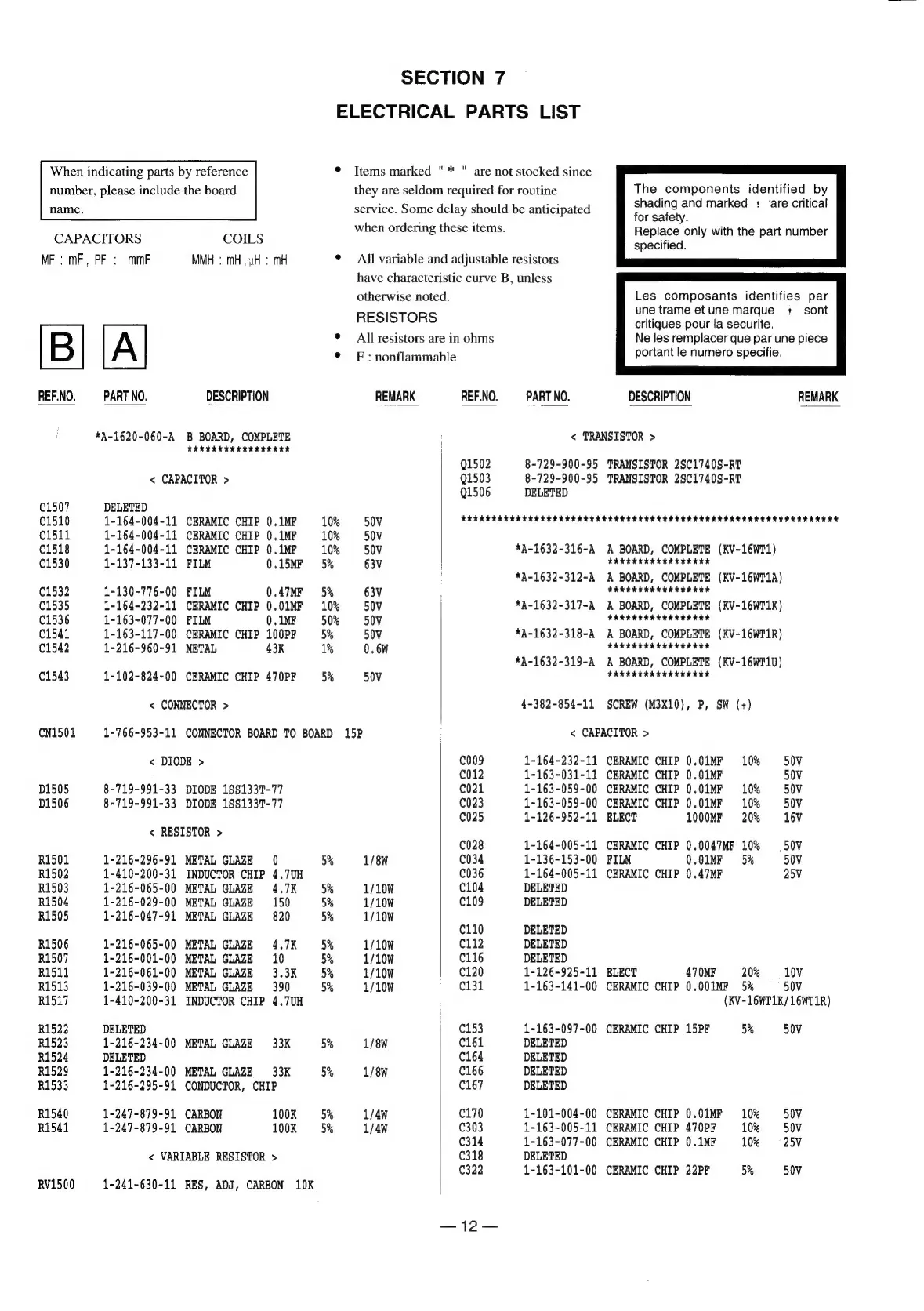

Sony TRINITRON KV-16WT1 - 7 Electrical Parts List

SECTION 7
ELECTRICAL PARTS LIST
When indicating parts by reference ¢ Items marked "* " are not stocked since
number, please include the board they are seldom required for routine The components identified by
name. service. Some delay should be anticipated esha marked 1 “are. critical
when ordering these items. ; i
CAPACITORS COILS g en with the part number
MF: mF, PF : mmF MMH : mH, uH : mH ¢ All variable and adjustable resistors
have characteristic curve B, unless
otherwise noted. Les composants identifies par
une trame et une marque _: sont
RESISTORS a te
critiques pour la securite.
A ¢ All resistors are in ohms Ne les remplacer que par une piece
© E-:nonflammable portant le numero specifie.
REFNO, PARTNO. DESCRIPTION REMARK REFNO. PART NO. DESCRIPTION REMARK
*2-1620-060-A B BOARD, COMPLETE < TRANSISTOR >
KREKEKEEKEEKEEREEEREKE
91502 8-729-900-95 TRANSISTOR 2SC1740S-RT
< CAPACITOR > 91503 8-729-900-95 TRANSISTOR 2SC1740S-RT
Q1506 DELETED
C1507 DELETED
C1510 1-164-004-11 CERAMIC CHIP 0.1MF 10% 50V JAS ISIE IGG IO JOSE IH II ISI TR IT TTI TTI TER TEI IIE
C1511 1-164-004-11 CERAMIC CHIP 0.1MF 10% 50V
C1518 1-164-004-11 CERAMIC CHIP 0.1MF 10% 50V *A-1632-316-A A BOARD, COMPLETE (KV-16WT1)
C1530 1-137-133-11 FILM 0.15MF 5% 63V ' UERRERRES ERR RSA
; *A-1632-312-A A BOARD, COMPLETE (KV-16WT1A)
C1532 1-130-776-00 FILM 0.47MF 5% 63V . SARATERE STRESSES
C1535 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V | *A-1632-317-A A BOARD, COMPLETE (KV-16WT1K)
C1536 1-163-077-00 FILM 0.1MF 50% 50V TERETE ESTAR TEER
C1541 1-163-117-00 CERAMIC CHIP 100PF 5% 50V *A-1632-318-A A BOARD, COMPLETE (KV-16WT1R)
C1542 1-216-960-91 METAL 43K 1% 0.6W SERUARSAEREERED ES
*A-1632-319-A A BOARD, COMPLETE (KV-16WT1U)
C1543 1-102-824-00 CERAMIC CHIP 470PF 5% 50V SELERSEASESEAARES
< CONNECTOR > 4-382-854-11 SCREW (M3X10), P, SW (+)
CN1501 1-766-953-11 CONNECTOR BOARD TO BOARD 15P < CAPACITOR >
< DIODE > C009 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V
C012 1-163-031-11 CERAMIC CHIP 0.01MF 50V
D1505 8-719-991-33 DIODE 158133T-77 C021 1-163-059-00 CERAMIC CHIP 0.01MF 10% 50V
D1506 8-719-991-33 DIODE 1$$133T-77 C023 1-163-059-00 CERAMIC CHIP 0.01MF 10% 50V
c025 1-126-952-11 ELECT 1O00MF 20% 16V
< RESISTOR >
C028 1-164-005-11 CERAMIC CHIP 0.0047MF 10% 50V
R1501 1-216-296-91 METAL GLAZE 0 5% 1/8W C034 1-136-153-00 FILM 0.01MF 5% 50V
R1502 1-410-200-31 INDUCTOR CHIP 4.7UH C036 1-164-005-11 CERAMIC CHIP 0.47MF a5V
R1503 1-216-065-00 METAL GLAZE 4.7K 5% 1/10W C104 DELETED
R1504 1-216-029-00 METAL GLAZE 150 5% 1/10W c109 DELETED
R1505 1-216-047-91 METAL GLAZE 820 5% 1/10W
C110 DELETED
R1506 1-216-065-00 METAL GLAZE 4.7K 5% 1/10W C112 DELETED
R1507 1-216-001-00 METAL GLAZE 10 5% 1/10W C116 DELETED
R1511 1-216-061-00 METAL GLAZE 3.3K 5% 1/10W C120 1-126-925-11 ELECT A70MF = 20% = 10V
R1513 1-216-039-00 METAL GLAZE 390 5% 1/10W C131 1-163-141-00 CERAMIC CHIP 0.001MF 5% 50V
R1517 1-410-200-31 INDUCTOR CHIP 4.7UH (KV-16WT1K/16WT1R)
R1522 DELETED | C153 1-163-097-00 CERAMIC CHIP 15PF 5% 50V
R1523 1-216-234-00 METAL GLAZE 33K 5% 1/8W C161 DELETED
R1524 DELETED C164 DELETED
R1529 1-216-234-00 METAL GLAZE 33K 5% 1/8W C166 DELETED
R1533 1-216-295-91 CONDUCTOR, CHIP C167 DELETED
R1540 1-247-879-91 CARBON 100K 5% 1/4W C170 1-101-004-00 CERAMIC CHIP 0.01MF 10% 50V
R1541 1-247-879-91 CARBON 100K = 5% 1/4W C303 1-163-005-11 CERAMIC CHIP 470PF 10% 50V
C314 1-163-077-00 CERAMIC CHIP 0.1MF 10% = a5v
< VARIABLE RESISTOR > C318 DELETED
C322 1-163-101-00 CERAMIC CHIP 22PF 5% 50V
RV1500 1-241-630-11 RES, ADJ, CARBON 10K
