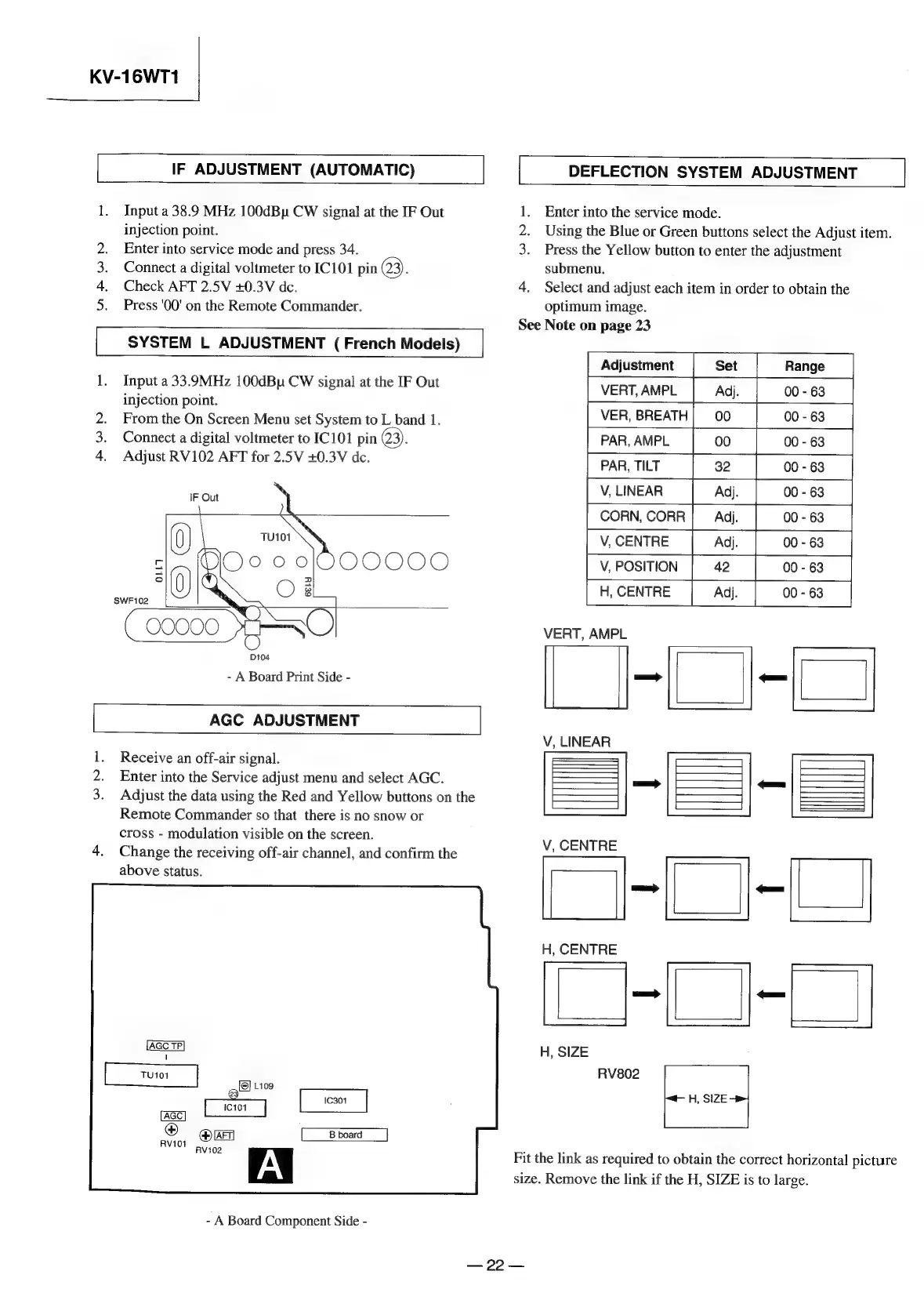

Sony TRINITRON KV-16WT1 - IF Adjustment (Automatic); Deflection System Adjustment; System L Adjustment (French Models); AGC Adjustment

KV-16WT1
| IF ADJUSTMENT (AUTOMATIC)
Say te Gs BS
{ DEFLECTION SYSTEM ADJUSTMENT |
Input a 38.9 MHz 100dBu CW signal at the IF Out
injection point.
Enter into service mode and press 34.
Connect a digital voltmeter to IC101 pin Q3).
Check AFT 2.5V +0.3V de.
Press '00' on the Remote Commander.
SYSTEM L ADJUSTMENT ( French Models)
Input a 33.9MHz 100dBu CW signal at the IF Out
injection point.
From the On Screen Menu set System to L band 1.
Connect a digital voltmeter to IC101 pin Q3).
Adjust RV102 AFT for 2.5V +0.3V de.
IF Out
D104
- A Board Print Side -
AGC ADJUSTMENT
Receive an off-air signal.
Enter into the Service adjust menu and select AGC.
Adjust the data using the Red and Yellow buttons on the
Remote Commander so that there is no snow or
cross - modulation visible on the screen.
Change the receiving off-air channel, and confirm the
above status.
AGC TP.
1
TU101
©} L109
@ 1C301
(C101
AGC
2 @ AFT
— EN \
- A Board Component Side -
1. Enter into the service mode.
2. Using the Blue or Green buttons select the Adjust item.
3. Press the Yellow button to enter the adjustment
submenu.
4. Select and adjust each item in order to obtain the
optimum image.
See Note on page 23
Adjustment Set Range
VERT,AMPL | Adj. 00-63 |
eRe 00 [00-63 |
PAR, AMPL 00 00 - 63
PAR, TILT 32 00 - 63
V, LINEAR [Aa 00 - 63
CORN, CORR | = Adj. 00 - 63
a [4s 00-63 |
V, POSITION 42 00 - 63
H, CENTRE Adj. 00-63 |
VERT, AMPL
| LJ
V, LINEAR
= =_—
|
V, CENTRE
-LI-
H, CENTRE
LL I-
H, SIZE
RV802
H, SIZE
Fit the link as required to obtain the correct horizontal picture
size. Remove the link if the H, SIZE is to large.
— 22 —
