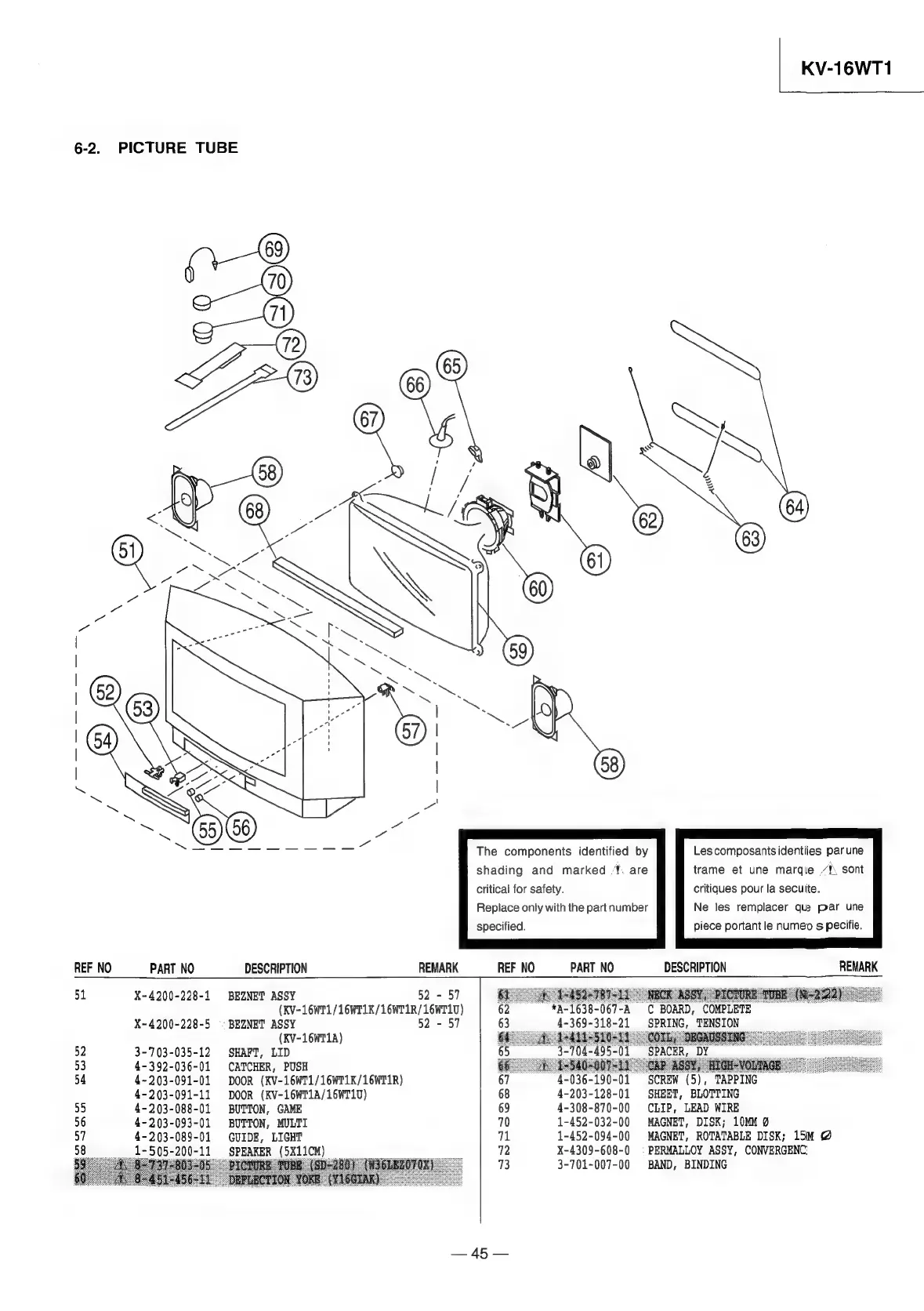

6-2. PICTURE TUBE
ee Od a re The components identified by Lescomposanisidentiies parune
shading and marked .. are trame et une marqie 4, sont
critical for safety. critiques pour la secuite.
Replace only with the part number Ne les remplacer que par une
specified. piece portant le numeo s pecifie.
REF NO PART NO DESCRIPTION REMARK REF NO PART NO DESCRIPTION REMARK
51 X-4200-228-1 BEZNET ASSY 52 - 57 a 1052
(RV-16WTL/16WTLK/16WT1R/16WT1U) *A-16
X-4200-228-5 | BEZNET ASSY 52 - 57 63 4-369-318-21 SPRING, TENSION
(KV-16WT1A) i
52 3-703-035-12 SHAFT, LID
53 4-392-036-01 CATCHER, PUSH 66
54 4-203-091-01 DOOR (KV-16WT1/16WT1K/16WTR) 67 4-036-190-01 SCREW (5), TAPPING
4-203-091-11 DOOR (KV-16WT1A/16WT1U) 68 4-203-128-01 SHEET, BLOTTING
55 4-203-088-01 BUTTON, GAME 69 4-308-870-00 CLIP, LEAD WIRE
56 4-203-093-01 BUTTON, MULTI 70 1-452-032-00 MAGNET, DISK; 10MM @
57 4-203-089-01 GUIDE, LIGHT 71 1-452-094-00 MAGNET, ROTATABLE DISK; 15m @
1 72 X-4309-608-0 | PERMALLOY ASSY, CONVERGENC:
3 3-701-007-00 BAND, BINDING
