Sony TRINITRON KV-2565MT - Picture Tube Removal; Anode Cap Removal; Anode Cap Handling Precautions

KV-2965MT |
: RM-827S

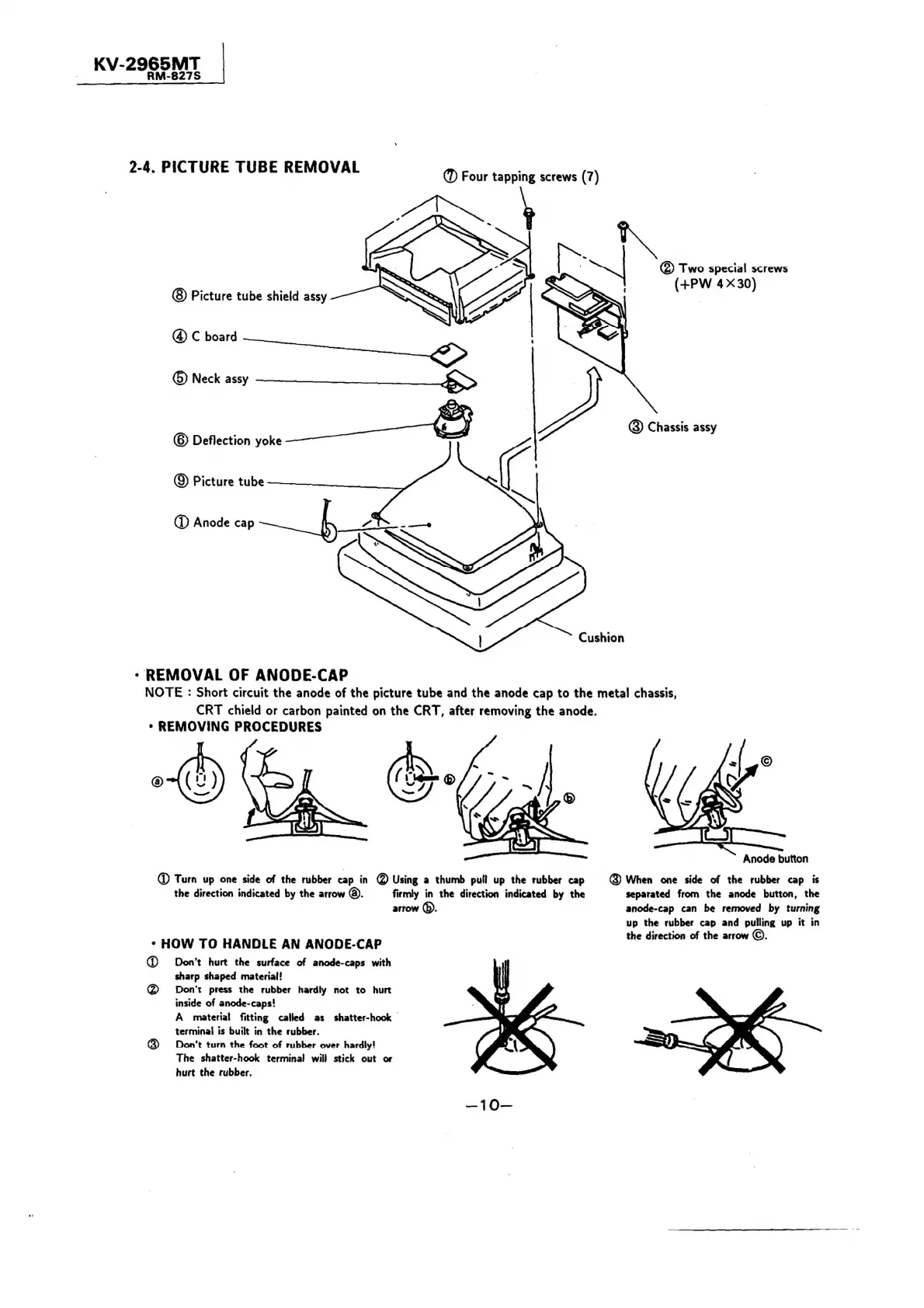

2-4, PICTURE TUBE REMOVAL
@ Four tapping screws (7)
@ Two special! screws
(+PW 4X30)
@) Picture tube shield assy |
@) C board
6) Neck assy £5
@) Chassis assy
© Deflection yoke _ 8
&) Picture tube
@ Anode cap — | ho
- REMOVAL OF ANODE-CAP
NOTE : Short circuit the anode of the picture tube and the anode cap to the metal chassis,
CRT chield or carbon painted on the CRT, after removing the anode.
* REMOVING PROCEDURES
|
O
Cushion
Anode button
@ Turn up one side of the rubber cap in @ Using a thumb pull up the rubber cap |G When one side of the rubber cap is
the direction indicated by the arrow @. firmly in the direction indicated by the separated from the anode button, the
arrow ()). anode-cap can be removed by turning
up the rubber cap and oo up it in
the direction of the arrow (©).
* HOW TO HANDLE AN ANODE-CAP
@ Don’t hurt the surface of anode-caps with
sharp shaped material!
@ Don't press the rubber hardly not to hurt
inside of anode-caps!
A material fitting called as shatter-hook
terminal is built in the rubber.
@ Don't turn the foot of rubber over hardly!
The shatter-hook terminal will stick out or
hurt the rubber.
