KV-28WF3/32WF3
27
V SIZE
V POS
V LIN
H SIZE
H PIN CUSH
H TILT
H UP COR
H LOWER COR
AFC V BOW
AFC V ANGLE
H POS

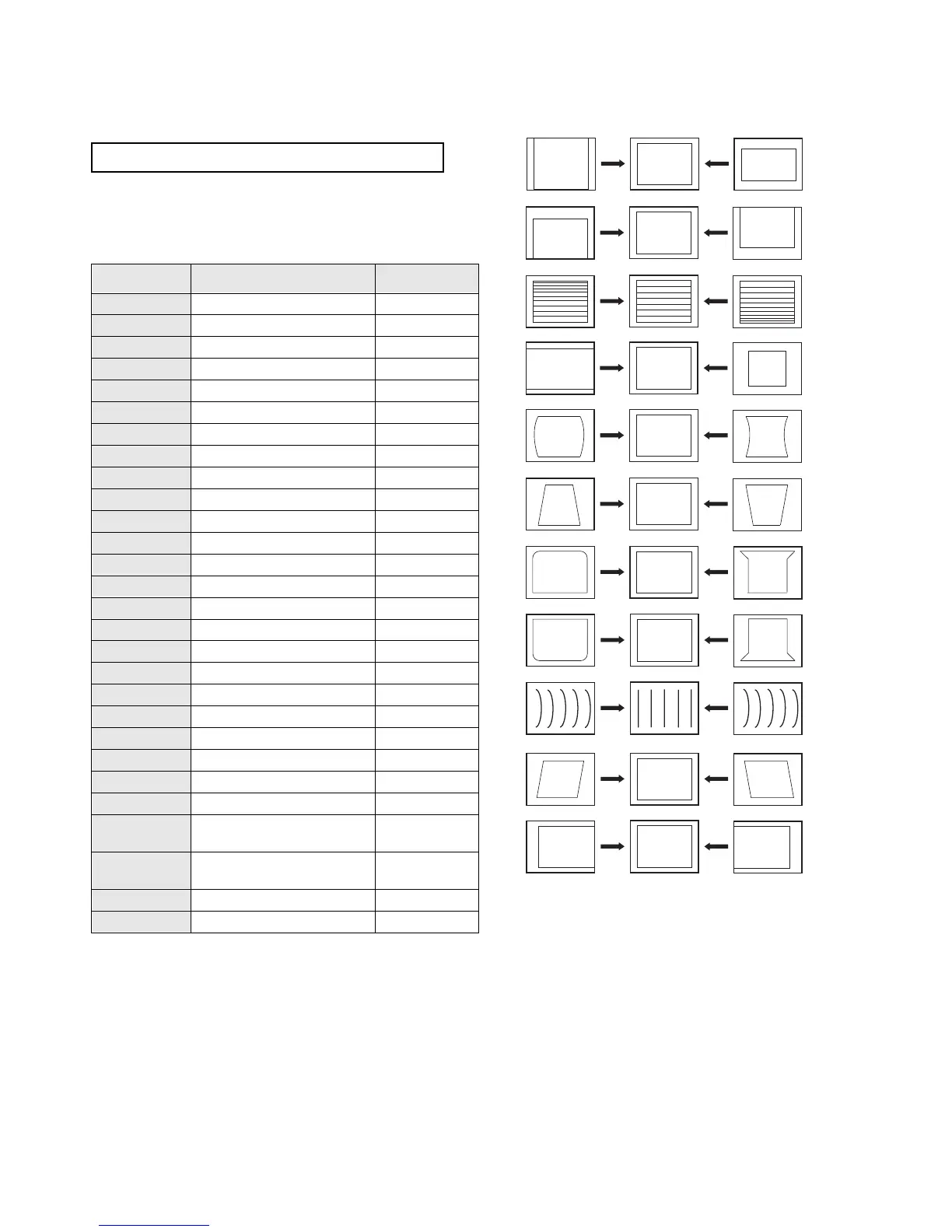

DEFLECTION SYSTEM ADJUSTMENT
1. Enter into the service mode and select ‘Deflection cont’. The
‘Deflect cont. SDA9361’ adjustment menu will be displayed.
2. Select and adjust each item in order to get an optimum image.
Item No Adjustment item Data Amount
1 V Size Adj
2 V Centre Adj
3 V Linearity Adj
4 S Correction Adj
5 H Size Adj
6 Pin Amp Adj
7 Up Corner Correction Adj
8 Low Corner Correction Adj
9 V Bow Adj
10 Pin Phase Adj
11 V Angle Adj
12 HDE ON
13 VR 0
14 RABL ON
15 Blk Dis OFF
16 2FH 2xLine Freq ON
17 Stand-by Mode OFF
18 Vertical ON
19 BSE Blk Select OFF
20 SSE Start Scan OFF
21 SRSE Start Red Scan OFF
22 GBE Guard Board OFF
23 STE Scan time table OFF
24 NSA Self Adaption ON
25 V EHT comp 28” = 111
32” = 90
26 H EHT comp 28” = 85
32” = 90
27 H Centre 32
28 PWM Start 0
