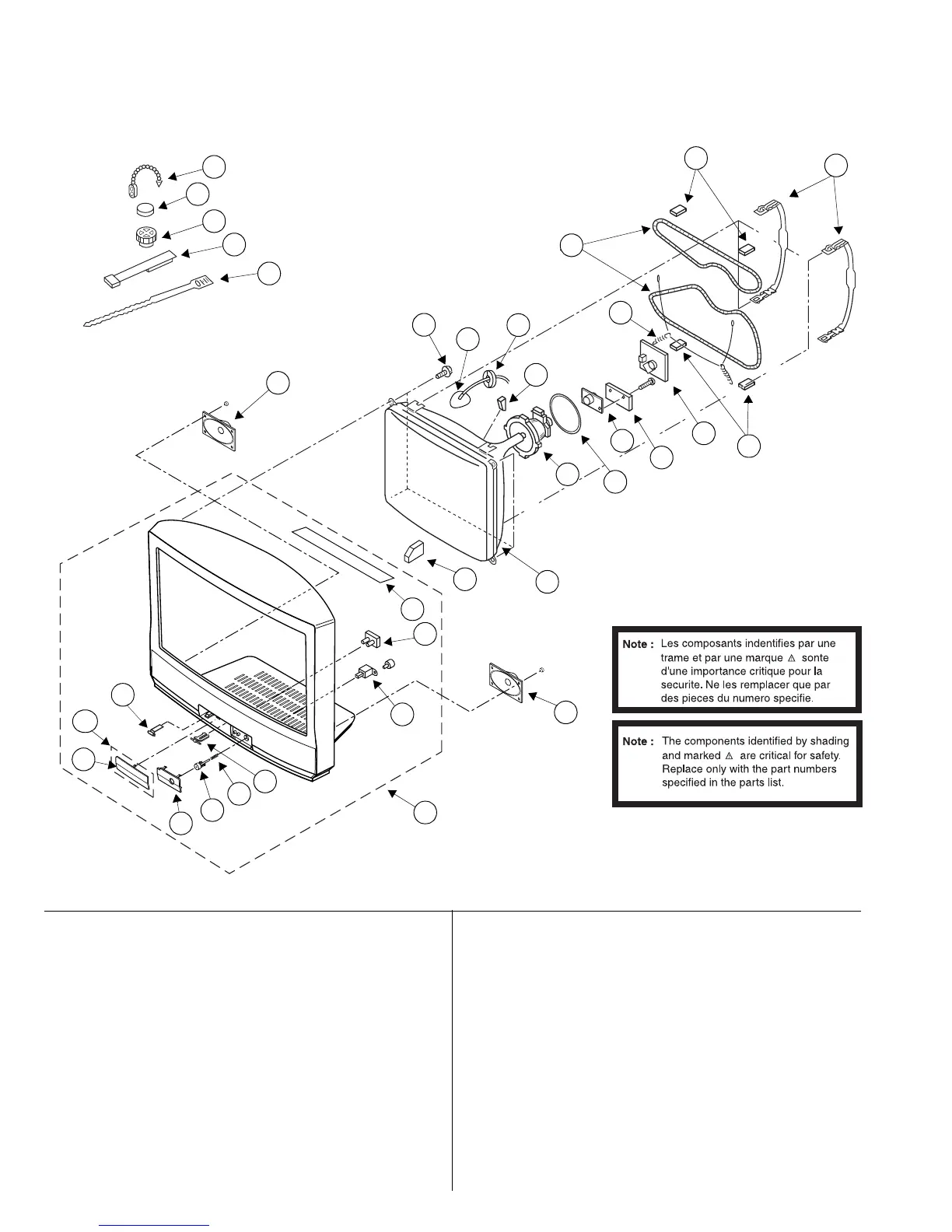

6-2. PICTURE TUBE
92
51 X-4200-344-1 BEZNET ASSY 52-61
(KV-28WF3A/28WF3B/28WF3D/28WF3E/28WF3K)
X-4200-343-1 BEZNET ASSY
(KV-32WF3A/32WF3B/32WF3D/32WF3E/32WF3K)
52 4-045-250-01 DAMPER
53 X-4200-369-1 DOOR, ASSY
(KV-28WF3A/28WF3B/28WF3D/28WF3E/28WF3K)
54 4-203-723-01 DOOR
(KV-28WF3A/28WF3B/28WF3D/28WF3E/28WF3K)
4-203-723-21 DOOR
(KV-32WF3A/32WF3B/32WF3D/32WF3E/32WF3K)
55 4-203-724-01 WINDOW, ORNAMENTAL
56 4-203-722-02 BUTTON, POWER
(KV-28WF3A/28WF3B/28WF3D/28WF3E/28WF3K)
4-203-722-11 BUTTON, POWER
(KV-32WF3A/32WF3B/32WF3D/32WF3E/32WF3K)
57 4-202-964-01 SPRING
(KV-28WF3A/28WF3B/28WF3D/28WF3E/28WF3K)
4-202-964-11 SPRING
(KV-32WF3A/32WF3B/32WF3D/32WF3E/32WF3K)
58 3-703-035-11 SHAFT, LID
(KV-28WF3A/28WF3B/28WF3D/28WF3E/28WF3K)
4-202-555-01 SHAFT, DOOR
(KV-32WF3A/32WF3B/32WF3D/32WF3E/32WF3K)
59 4-042-940-21 UNIT, LOCK
60 4-203-739-01 GUIDE, LIGHT
(KV-28WF3A/28WF3B/28WF3D/28WF3E/28WF3K)
4-203-739-11 GUIDE, LIGHT
(KV-32WF3A/32WF3B/32WF3D/32WF3E/32WF3K)
