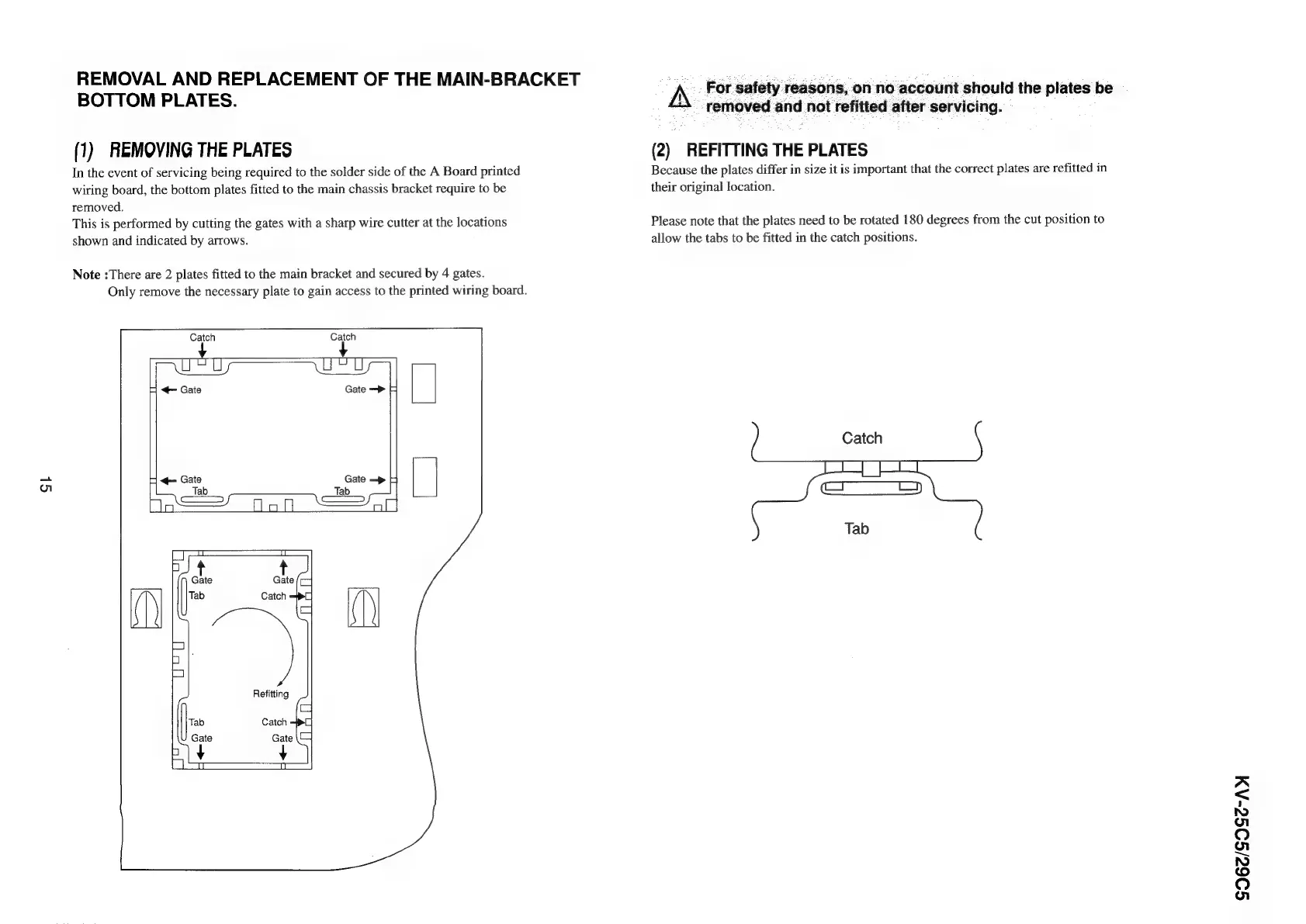

REMOVAL AND REPLACEMENT OF THE MAIN-BRACKET
BOTTOM PLATES.
(1) REMOVING THE PLATES
In the event of servicing being required to the solder side of the A Board printed
wiring board, the bottom plates fitted to the main chassis bracket require to be
removed.
This is performed by cutting the gates with a sharp wire cutter at the locations
shown and indicated by arrows.
Note :There are 2 plates fitted to the main bracket and secured by 4 gates.
Only remove the necessary plate to gain access to the printed wiring board.
Catch
Catch
UUU Tat a
H Gate Gate —>
Refitting
=
Tab Catch
7 Gate Gate (Co
U I
: A -For safety reasons, on no account should the plates be
_ + removed and not refitted after servicing.
(2) REFITTING THE PLATES
Because
the
plates
differ
in
size
it
is
important
that
the
correct
plates
are
refitted
in
their original location.
Please note that the plates need to be rotated 180 degrees from the cut position to
allow the tabs to be fitted in the catch positions.
Catch
Tab
