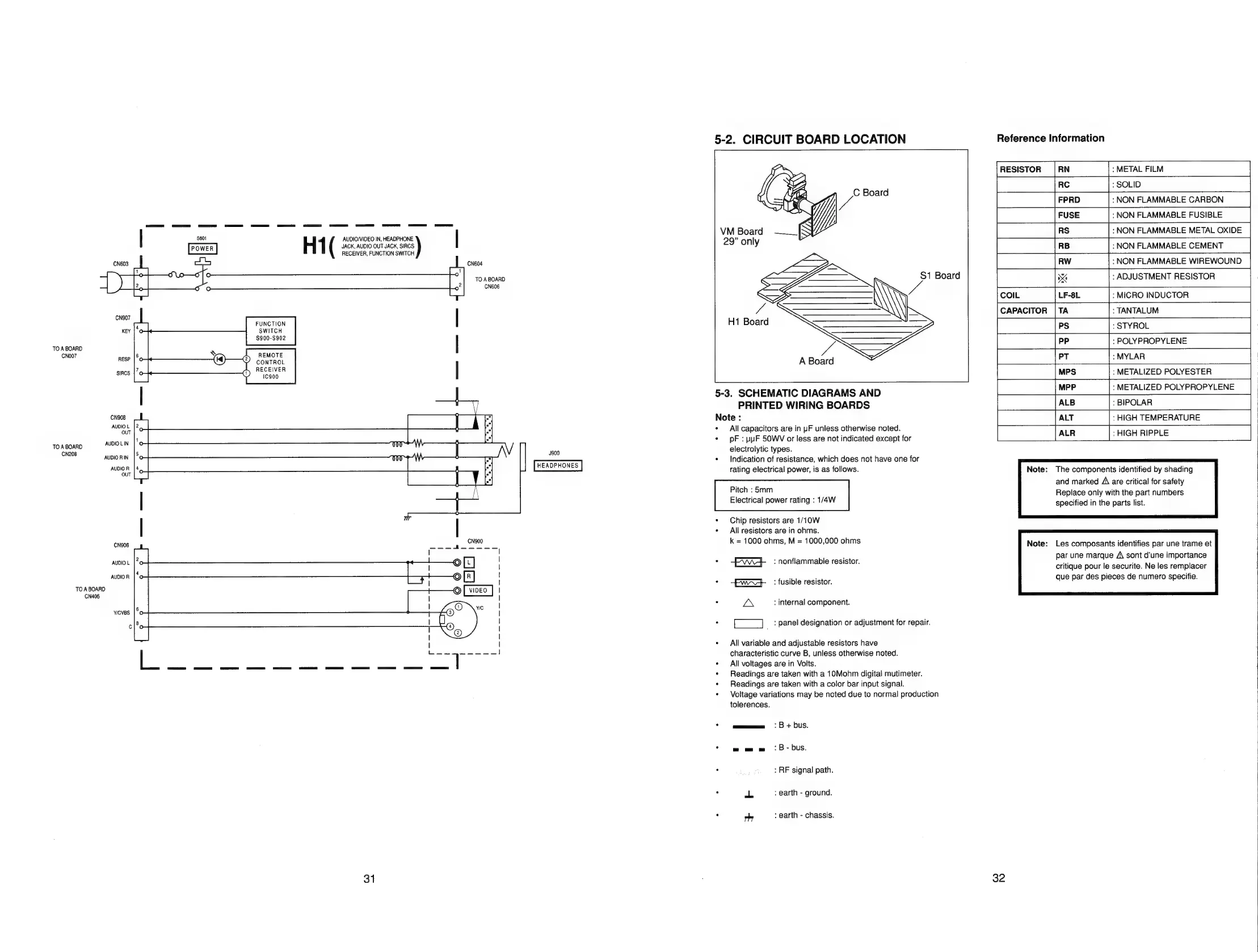

Sony TRINITRON KV-29C5D - Circuit Board Locations and Diagrams; Circuit Board Locations and Schematics

| H1(
CN603 : fe
CN907
FUNCTION
SWITCH
$900-S902
KEY
TO ABOARD
cNOO7 REMOTE
en CONTROL
RECEIVER
SIRCS 10900
cN908
AUDIOL
OUT
TO ABOARD AUDIO LIN
CN208 AUDIO RIN
AUDIO R
OUT
CN906
AUDIO L
AUDIO R
TO ABOARD
cN406
Y/CVBS
c
a aa og ee ee
AUDIO/VIDEO IN, HEADPHONE
JACK, AUDIO OUT JACK, SIRCS
RECEIVER, FUNCTION SWITCH
31
5-2. CIRCUIT BOARD LOCATION
C Board
S1 Board
SS
H1
Board
SS
A Board
5-3. SCHEMATIC DIAGRAMS AND
PRINTED WIRING BOARDS
Note :
+ All capacitors are in pF unless otherwise noted.
¢ pF : pF 50WV or less are not indicated except for
electrolytic types.
* Indication of resistance, which does not have one for
rating electrical power, is as follows.
Pitch : 5mm
Electrical power rating : 1/4W
* Chip resistors are 1/10W
* All resistors are in ohms.
k = 1000 ohms, M = 1000,000 ohms
* -RAWG} SC: nonflammable resistor.
° EWG}: fusible resistor.
. LS. : internal component.
* [-] _ : panel designation or adjustment for repair.
+ All variable and adjustable resistors have
characteristic curve B, unless otherwise noted.
« All voltages are in Volts.
* Readings are taken with a 10Mohm digital mutimeter.
* Readings are taken with a color bar input signal.
* Voltage variations may be noted due to normal production
tolerences.
mum «=|: B + DUS.
= m= m» :B-bus.
. : RF signal path.
. LL : earth - ground.
. aed : earth - chassis.
32
Reference Information
RESISTOR
wed
rc [so SSSCS—~*S
FR _|:NONFLANMABLE CARGON
FUSE _[:NON FLAMMABLE FUSBLE
RS | NON FLAMMABLE METAL ONDE
re
ew
: NON FLAMMABLE CEMENT
: NON FLAMMABLE WIREWOUND
:
pois
pe_|:POWWPROPYIENE
wes [weraureorovesren |
[Mee |: merauize0 PowrRoPviENe _|
: BIPOLAR
: HIGH TEMPERATURE
: HIGH RIPPLE
The components identified by shading
and marked A\ are critical for safety
Replace only with the part numbers
specified in the parts list.
Les composants identifies par une trame et
par une marque A sont d'une importance
critique pour le securite. Ne les remplacer
que par des pieces de numero specifie.
