20
Operating Instructions

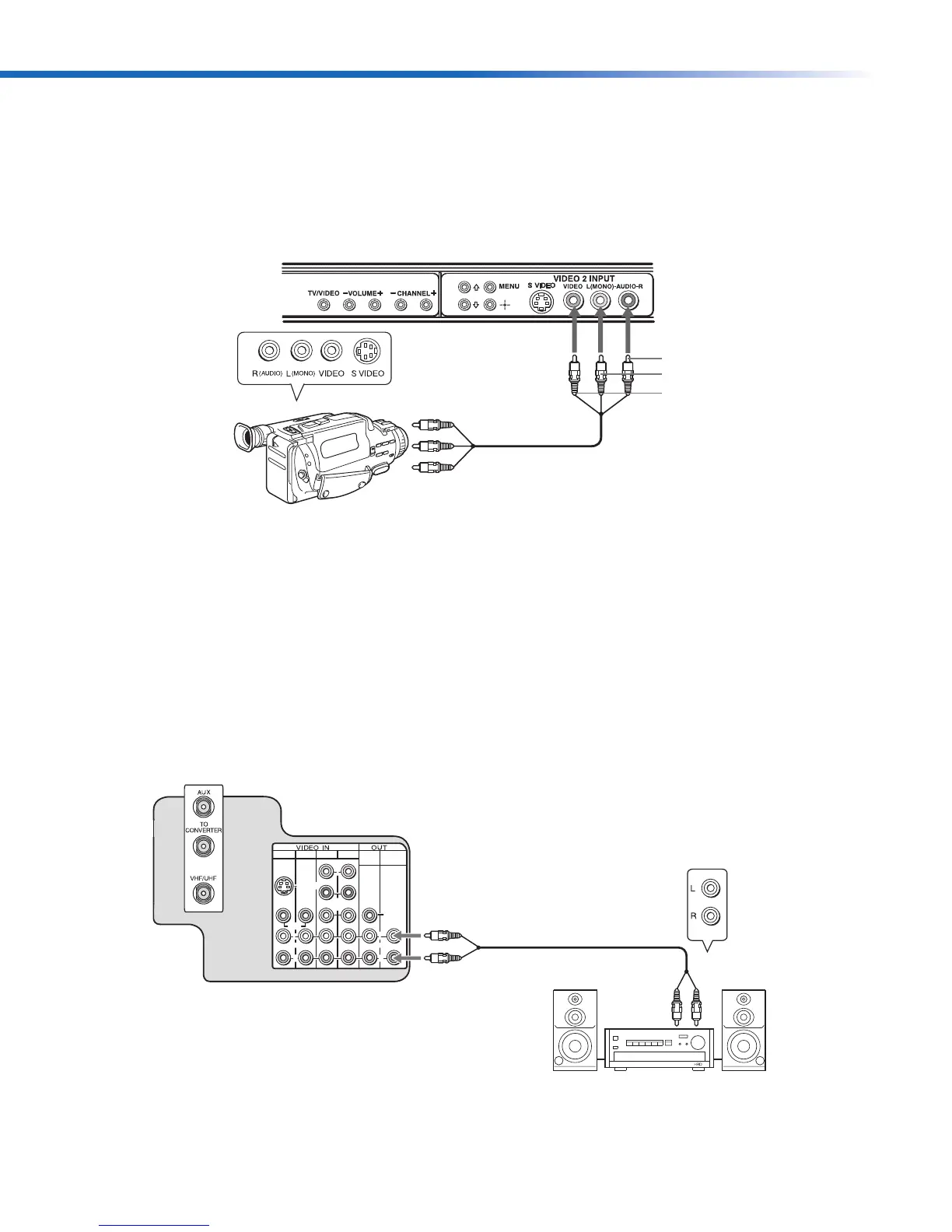

Connecting a Camcorder
To connect your camcorder, you can use the Audio/Video inputs on either the front or rear
panel of the TV. Using the audio/video cables (not supplied), connect the AUDIO/VIDEO
OUT on your camcorder to the AUDIO/VIDEO IN on your TV.
Optional connection
❏ For better picture quality, use S VIDEO instead of the yellow video cable. S VIDEO does
not provide sound, so you still must connect the audio cables.
Connecting an Audio System
1 Using audio/video cables (not supplied), connect AUDIO OUT on your TV to one of the
unused line inputs (e.g. TV, AUX, TAPE2) on your stereo.
2
Set the Speaker option to Off. For more instructions, see "Using the Audio Menu" on page 31.
3
Open the Audio Out option on the Audio Menu and select Fixed to control the volume through
the connected audio system. For more instructions, see "Using the Audio Menu" on page 32.
A/V output
Audio R (red)
Audio L (white)
Video (yellow)
Front A/V Panel
1
3
4
5
MONITOR
AUDIO OUT
(VAR/FIX)
VIDEO
L
(MONO)
R
L
R
(MONO)
VIDEO
S VIDEO
Y
P B
P R
Rear of TV
AUDIO-L (white)
AUDIO-R (red)
Line
input
