KV-32FS10/32FV15/32XBR250/34FV10/34FV15/34FV15C/34FX250C/34FV15K
34FV15T/36FS10/36FV15/36XBR250/38FX250/38FX250C/38FX250T/38FV15K
1
A
B
C
D
E
F
G
H
I
23456789101112
— 41 — — 42 — — 43 — — 44 —

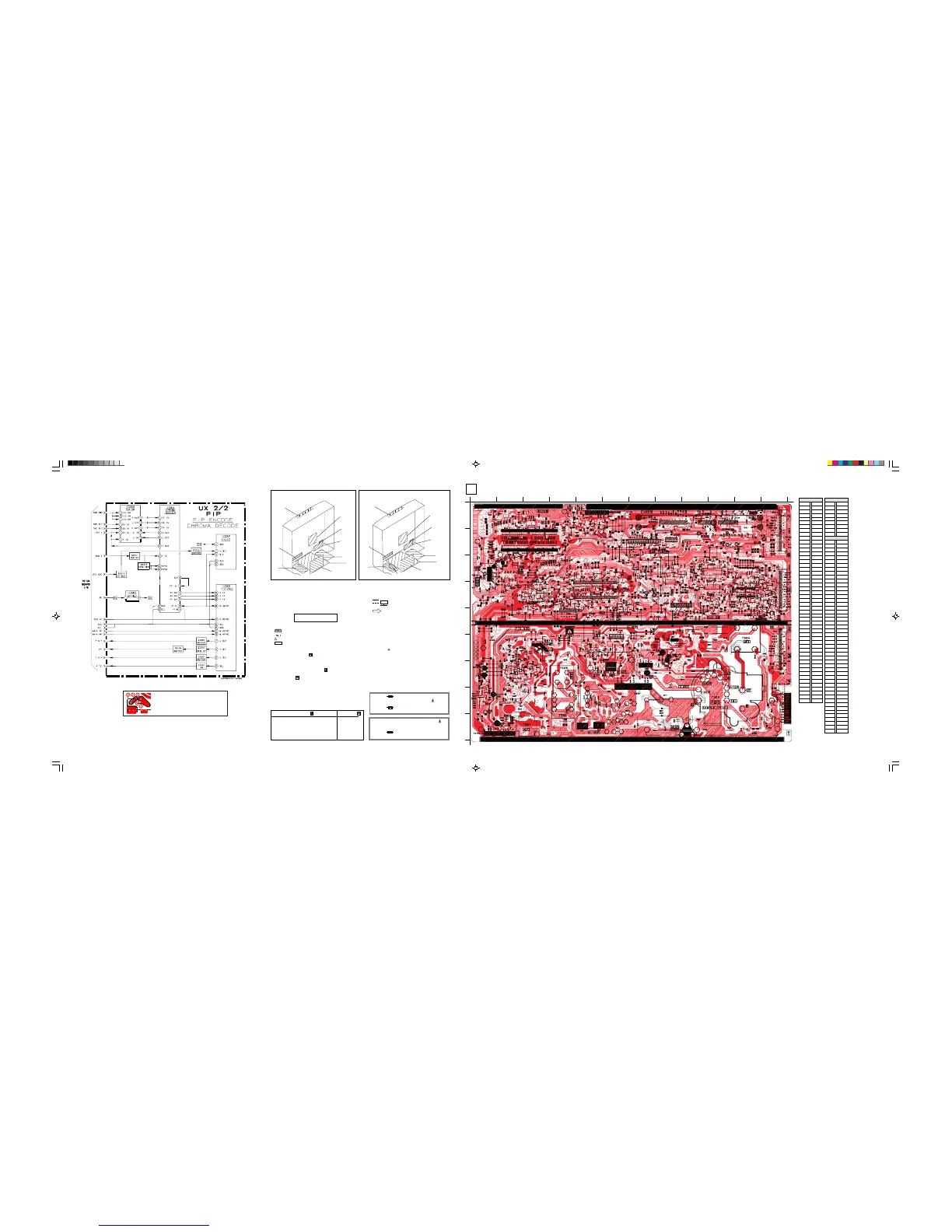

6-5 BLOCK DIAGRAM (5/5)
(KV-32XBR250/34FX250C/36XBR250/38FX250/38FX250C/38FX250T)
6-7. PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS
• All capacitors are in µF unless otherwise noted. pF : µµF 50WV or less are not
indicated except for electrolytics and tantalums.
• All electrolytics are in 50V unless otherwise specified.
• All resistors are in ohms.
KΩ=1000Ω, MΩ=1000kΩ
• Indication of resistance, which does not have one for rating electrical power, is
as follows: Pitch : 5mm
Rating electrical power :
1
/
4
W
•
1
/
4
W in resistance,
1
/
10
W and
1
/
8
W in chip resistance.
• : nonflammable resistor.
•
: fusible resistor.
•
: internal component.
• : panel designation and adjustment for repair.
• All variable and adjustable resistors have characteristic curve B, unless other-
wise noted.
• The components identified by in this basic schematic diagram have been
carefully factory-selected for each set in order to satisfy regulations regarding
X-ray radiation.
Should replacement be required, replace only with the value originally used.
• When replacing components identified by , make the necessary adjust-
ments indicated. If results do not meet the specified value, change the compo-
nent identified by and repeat the adjustment until the specified value is
achieved. (Refer to R530 and R531 adjustment on Page 21.)
• When replacing the part in below table, be sure to perform the related adjust-
ment.
• Readings are taken with a color-bar signal input.
• Readings are taken with a 10MΩ digital multimeter.
• Voltages are DC with respect to ground unless otherwise noted.
• Voltage variations may be noted due to normal production tolerances.
• All voltages are in V.
S : Measurement impossibility.
•
: B+line.
•
v
: B-line.
(Actual measured value may be different).
• : signal path. (RF)
• Circled numbers are waveform references.
Reference information
RESISTOR : RN METAL FILM
: RC SOLID
: FPRD NONFLAMMABLE CARBON
: FUSE NONFLAMMABLE FUSIBLE
: RW NONFLAMMABLE WIREWOUND
: RS NONFLAMMABLE METAL OXIDE
: RB NONFLAMMABLE CEMENT
: ADJUSTMENT RESISTOR
COIL : LF-8L MICRO INDUCTOR
CAPACITOR : TA TANTALUM
: PS STYROL
: PP POLYPROPYLENE
: PT MYLAR
: MPS METALIZED POLYESTER
: MPP METALIZED POLYPROPYLENE
: ALB BIPOLAR
: ALT HIGH TEMPERATURE
: ALR HIGH RIPPLE
R530,R531
Part replaced ( ) Adjustment( )
IC355, IC501, D302, D519, D520, D521,C531, C532,
Q301, R356, R359, R361, R387, R529, R530, R531,
R532, R533, R550,T503 .............................A BOARD
IC643, R661.................................................G BOARD
IC6003, R6088...........................................GA BOARD
6-6. CIRCUIT BOARDS LOCATION
The symbol display is on the component side.
The components identified by shading and mark are
critical for safety. Replace only with part number specified.
The symbol indicates a fast operating fuse.
Replace only with fuse of same rating as marked.
Les composants identifiés per un tramé et une marque
sont critiques pour la sécurité. Ne les remplacer que par une
piéce portant le numéro spécifié.
Le symbole indique une fusible a action rapide. Doit
etre remplacee par une fusible de meme yaleur, comme maque.
NOTE:
Portions of this circuit marked as shown are high
voltage areas. Use care to prevent electric shocks
during inspection or repair.
A BOARD LOCATOR LIST
DIODE IC
D001 A - 5 IC001 B-2
D002 D -2 IC002 C -2
D003 A -5 IC352 D-9
D004 C-2 IC353 D-10
D011 A - 5 IC354 C-9
D012 C-1 IC355 D-5
D013 C -5 IC501 G- 2
D014 D -3 IC561 G- 6
D015 C -3 IC1001 D -8
D016 D -4
TRANSISTOR
D018 D -4 Q001 A -5
D019 C -8 Q002 C -4
D301 C -7 Q003 H-1
D302 E -3 Q004 H-1
D303 D- 4 Q005 B- 5
D368 C -7 Q006 H-1
D384 F-6 Q007 I-1
D388 C -6 Q010 D -3
D501 H -2 Q011 D- 3
D502 I-8 Q012 D -3
D503 I-8 Q013 D -3
D504 I -7 Q014 D -3
D505 I-6 Q015 D -3
D506 H -5 Q016 D -2
D507 H -2 Q017 A - 5
D510 F -8 Q103 B -8
D511 F - 9 Q104 B -8
D512 F -9 Q301 E -3
D513 F -9 Q303 E -7
D515 G -4 Q304 E-5
D516 H -2 Q305 E-5
D518 H -3 Q306 E-5
D519 G -9 Q307 C- 6
D520 F -2 Q310 E -4
D521 F -2 Q311 E - 4
D522 G -2 Q314 E- 9
D523 H -3 Q351 E-10
D524 H-3 Q359 E-12
D530 G -8 Q361 D-10
D531 G -9 Q362 E-11
D534 G-8 Q364 E-12
D535 G -3 Q369 D -8
D536 G -3 Q370 D-11
D561 H -7 Q501 I -2
D1003 E-10 Q502 J -9
D1004 E-10 Q503 G-3
D1101 A - 7 Q504 G-3
D1102 B-11 Q507 F- 9
D1103 A-12 Q511 H - 2
D1104 A - 7 Q512 F- 3
D1301 D-12 Q561 G -6
D1302 D-11 Q562 F -5
Q1102 A-12
Q1103 A-10
Q1301 D-11
Q1302 D-11
Q1303 E-12
Q1352 D-11
Q1353 D-11
Q1354 D-10
A
[ MICON, Y/C/J, TUNER, PIN-MOD, V-DEF, H-DEF ]
C
A
G/GA
HB
HX
WA
UX
AK
HA
(KV-32XBR250/34FX250C/36XBR250
38FX250/38FX250C/38FX250T ONLY)
T
ALL MODELS (Except KV-32XBR250/34FX250C
36XBR250/38FX250/38FX250C/38FX250T
C
A
G/GA
HB
HX
WA
UY
AK
HA
FOLDOUT 37-44 5/10/99, 8:23 AM2
