Sony TRINITRON KV-36FS10 User Manual

KV-32FS10/32FV15/32XBR250/34FV10/34FV15/34FV15C/34FX250C/34FV15K/
34FV15T/36FS10/36FV15/36XBR250/38FX250/38FX250C/38FX250T/38FV15K
: Modified Items
☛

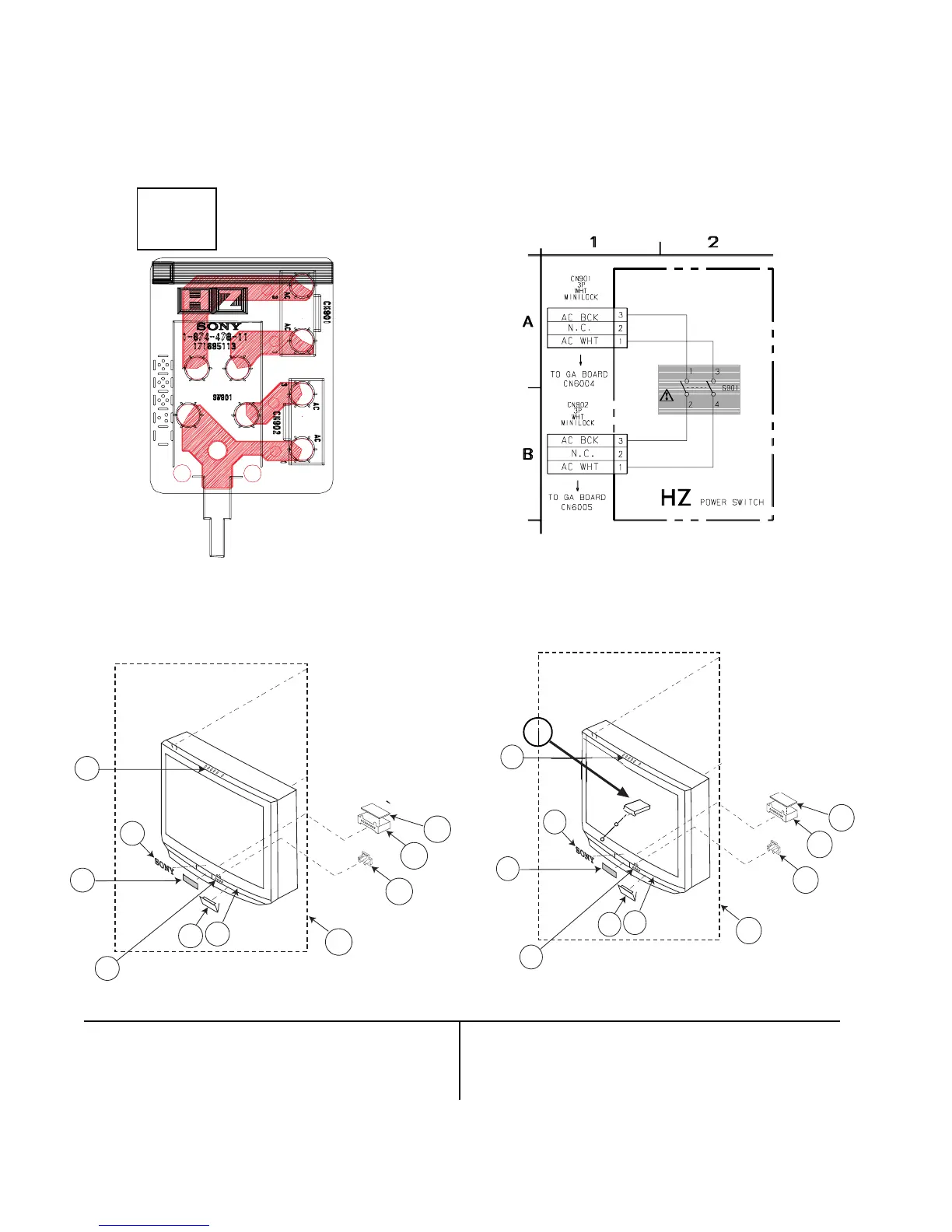

Section 6-7. PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS
(KV-34FV15K and KV-38FV15K only)
52
6
57
58
59
53
55
50
51
54
56
52
6
57
58
59
53
55
50
51
54
56
☛
61
Ref. No Part No. Description Remarks Ref. No. Part No. Description Remarks
☛
50 X-4036-679-2 BEZNET ASSY 51-53
(KV-34FV15K only)
50 X-4036-684-1 BEZNET ASSY 51-53
(KV-38FV15K only)
Needs to be added - - - - - - - - - - - - - - - - >
50 X-4036-811-2 BEZNET ASSY 51-53
(KV-34FV15K only)
50 X-4037-186-2 BEZNET ASSY 51-53
(KV-38FV15K only)
61 4-068-995-01 BUTTON, MAIN POWER
☛
☛
HZ
[POWER SWITCH]
☛
Section 7-3. PICTURE TUBE (Page 81)
Incorrect Correct
☛
HZ Board Schematic Diagram

Sony TRINITRON KV-36FS10 Specifications

General

Screen Size	36 inches
Display Type	CRT
Resolution	480i
Aspect Ratio	4:3
Comb Filter	3D Digital Comb Filter
Speakers	2
Inputs	Composite, S-Video, Component
