Getting Started
-EN
7
VIDEO IN MON/TV
OUT
123
VIDEO
AUDIO
L
(MONO)
R
S VIDEO
When connecting a monaural VCR
Connect the yellow plug to VIDEO and the black plug to AUDIO-L (MONO).
When connecting video game equipment
Connect video game equipment to the VIDEO 3 INPUT jacks at the front of your TV or the VIDEO IN 3 jacks at the rear of your TV.
When connecting a VCR to the (antenna) terminal
Preset the signal output from the VCR to the program position 0.
When connecting video equipment to the VIDEO 3 INPUT jacks or the VIDEO IN 3 jacks
Do not connect video equipment to the VIDEO 3 INPUT jacks at the front and the VIDEO IN 3 jacks at the rear of your TV simultaneously;
otherwise the picture will not be displayed properly on the screen.
If both S Video and video signals are input simultaneously
The S Video input signal is selected. To view a video input signal, disconnect the S Video connection.
Note on the video input
When no signal is input, the screen becomes blue.

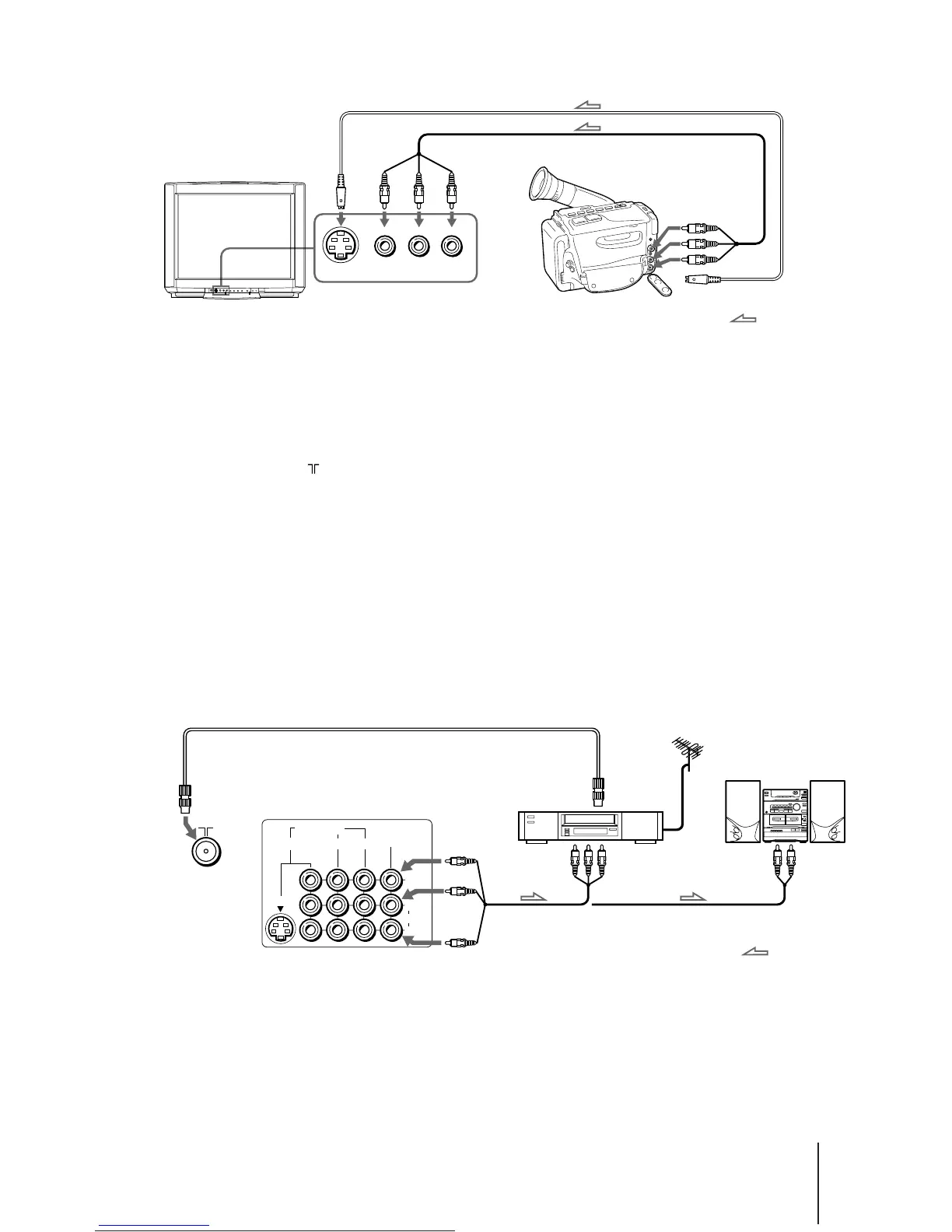

Connecting audio/video equipment using MON/TV OUT jacks
VIDEO
VIDEO 3 INPUT
S VIDEO
(MONO)
L–AUDIO–R
Front of TV
Camcorder
to S video output
to video and
audio outputs
: Signal flow
Rear of TV
VCR
to
antenna
output
to video and
audio inputs
VIDEO (yellow)
AUDIO-L (white)
AUDIO-R (red)
Audio system
to audio
inputs
: Signal flow
to
antenna
socket
or
To Next Page
