Sony TRINITRON KV-E2911D - Page 2

KV-E2511D
RM-689

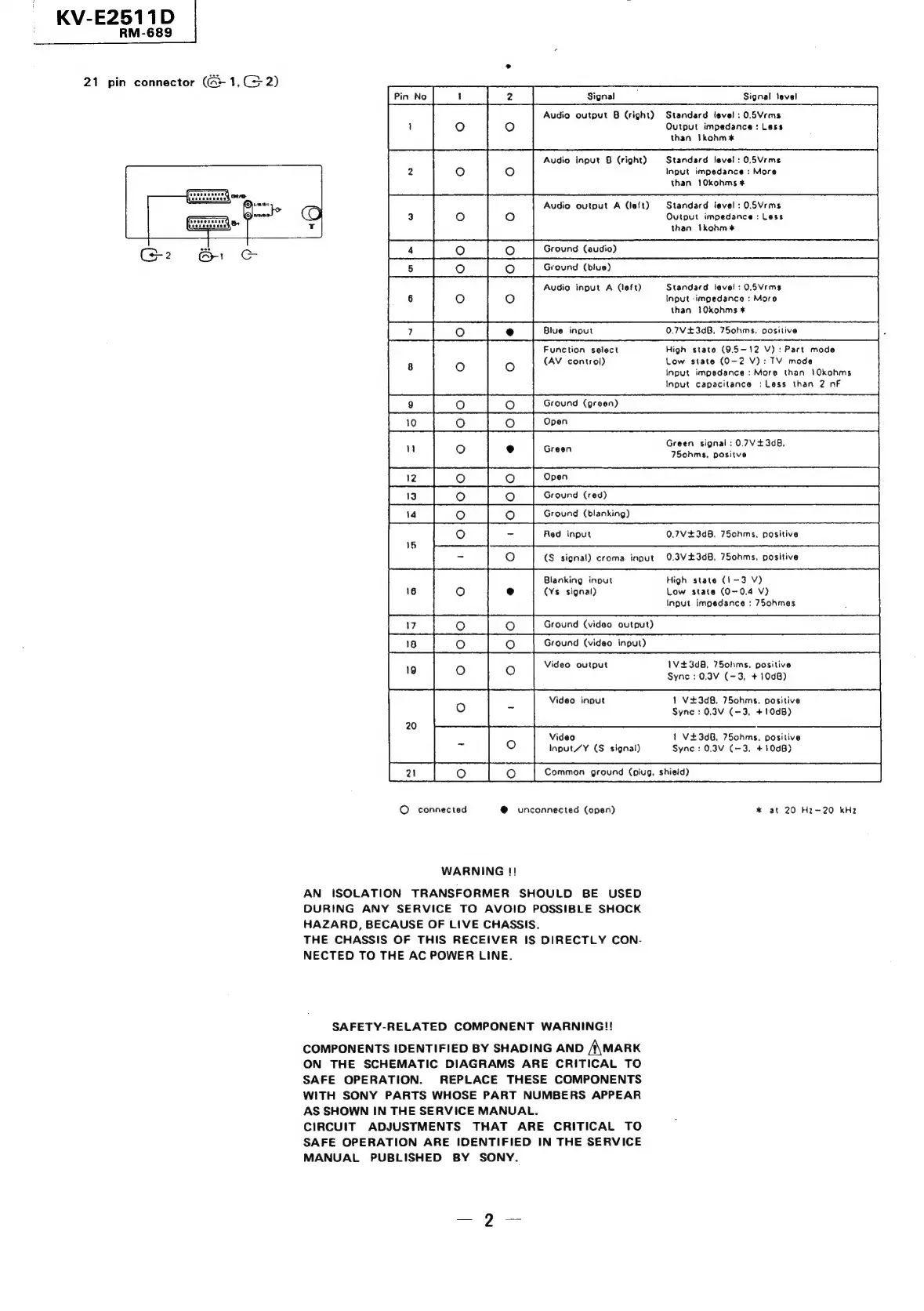

21 pin connector (A+ 1, C$ 2)
Audio output B (right) Standard level : 0.5Vrms
Output impedance: Less
than \kohm*
Audio input 8 (right) Standard level: 0.5Vrms
Input impedance : More
than 10kohms *
Audio output A (left) Standard level: 0.5Vrms
Output impedance: Less
than tkohm*
Ground (audio)
Ground (biue)
Audio input A (left) Standard level: 0.5Vrms
Input ‘impedance : More
than l0kohms *
Blue input 0.7V£3dB. 750hms. positive ,
Function select High stato (9.5-12 V): Part mode
(AV control) Low state (0-2 V): TV moda
Input impedance : More than 1Okohms
Input capacitance : Less than 2 nF
Ground (groen)
Green Green signal: 0.7V+3dB,
75ohms, positve
Open
Ground (red)
Ground (blanking)
Red input 0.7V+IdB, 75o0hms., positive
~~
5
(S signal) croma input 0.3V£3dB, 75ohms. positive
Blanking inout High state (1~3 V)
(Ys signal) Low state (0-0.4 V)
Input impedance : 75ohmes
Ground (video output)
Ground (video input)
Video output 1V+3dB8, 750hms. positive
Syne : 0.9V (-3, + 10dB)
Video input 1 V+3d8. 75o0hms. positive
Syne : 0.3V (-3, +10d8)
Video 1 V£3d8. 75o0hms, positive
Input /Y (S_ signal) Syne :0.3V (-3, +10dB)
Common ground (olug, shield)
© connected @ unconnected (open) * at 20 Hz-20 kHz
WARNING !!
AN ISOLATION TRANSFORMER SHOULD BE USED
DURING ANY SERVICE TO AVOID POSSIBLE SHOCK
HAZARD, BECAUSE OF LIVE CHASSIS.
THE CHASSIS OF THIS RECEIVER IS DIRECTLY CON-
NECTED TO THE AC POWER LINE.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY SHADING AND A\MARK
ON THE SCHEMATIC DIAGRAMS ARE CRITICAL TO
SAFE OPERATION. REPLACE THESE COMPONENTS
WITH SONY PARTS WHOSE PART NUMBERS APPEAR
AS SHOWN IN THE SERVICE MANUAL.
CIRCUIT ADJUSTMENTS THAT ARE CRITICAL TO
SAFE OPERATION ARE IDENTIFIED IN THE SERVICE
MANUAL PUBLISHED BY SONY.
=-2. =
