Sony TRINITRON KV-E2911D - Picture Tube

KV-E2511D
RM-689

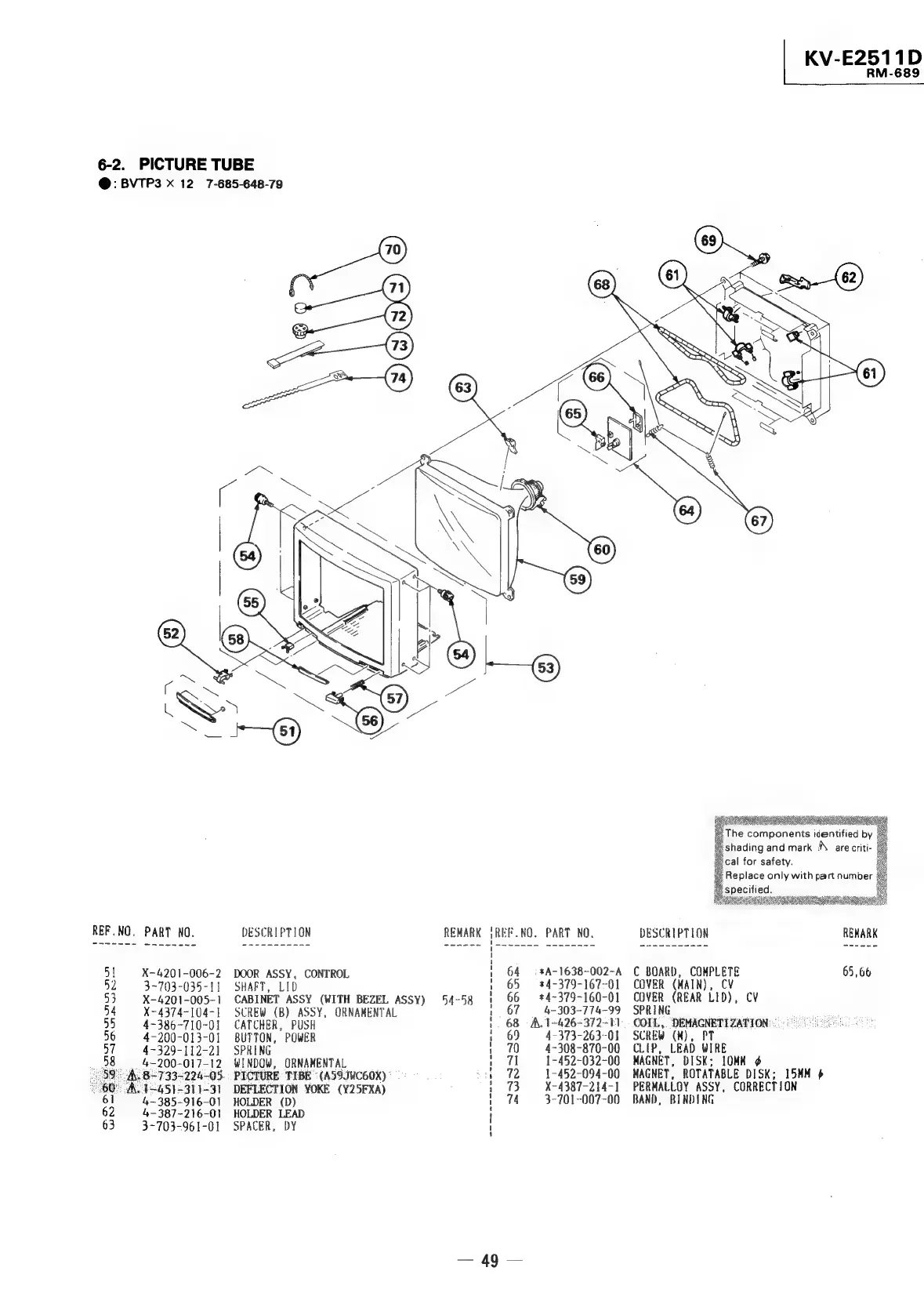

6-2. PICTURE TUBE
@: BVTP3 xX 12 7-685-648-79
..,.... -.srsiéié<éo,ZW
REFNO.
PART
NO.
DESCRIPTION
REMARK
(REFNO.
PART
NO.
DESCRIPTION
REMARK
64 = *A-1638-002-A C BOARD, COMPLETE 65,66
65 *4-379-167-01 COVER (MAIN), CV
66 +*4-379-160-01 COVER (REAR LID), CV
67 4-303-774-99 SPRING
i]
1
1
5! X-4201-006-2 DOOR ASSY, CONTROL
52 3~703-035-11 SHAFT, LID !
53 X-4201-005-1 CABINET ASSY (WITH BEZEL ASSY) 54-58 |
54 X-4374-104-1 SCREW (B) ASSY, ORNAMENTAL \
55 4-386-710-01 CATCHER, PUSH 1. 68 A, 1-426-372-11 COIL,. DEMAGNETIZATION:
56 4-200-013-01 BUTTON, POWER 1 69 4-373-263-01 SCREW (KM), PT
57 4-329-112-21 SPRING 1 70 4-308-870-00 CLIP, LEAD WIRE
58 4-200-017-12 WINDOW, ORNAMENTAL i 71 1-452-032-00 MAGNET, DISK; IOMM ¢
59. A. 8+733-224-05.. PICTURE TIBE °(A59JWC60X) 1 72 1-452-094-00 MAGNET, ROTATABLE DISK; 15MM 6
60° A.L1=451-311-31 DEFLECTION YOKE (Y25FXA) 1 73 X-4387-214-] PERMALLOY ASSY, CORRECTION
61 4~385-916-01 HOLDER (D) 1 74 3-701-007-00 BAND, BINDING
62 4-387-216-01 HOLDER LEAD |
63 3-703-961-01 SPACER, DY
