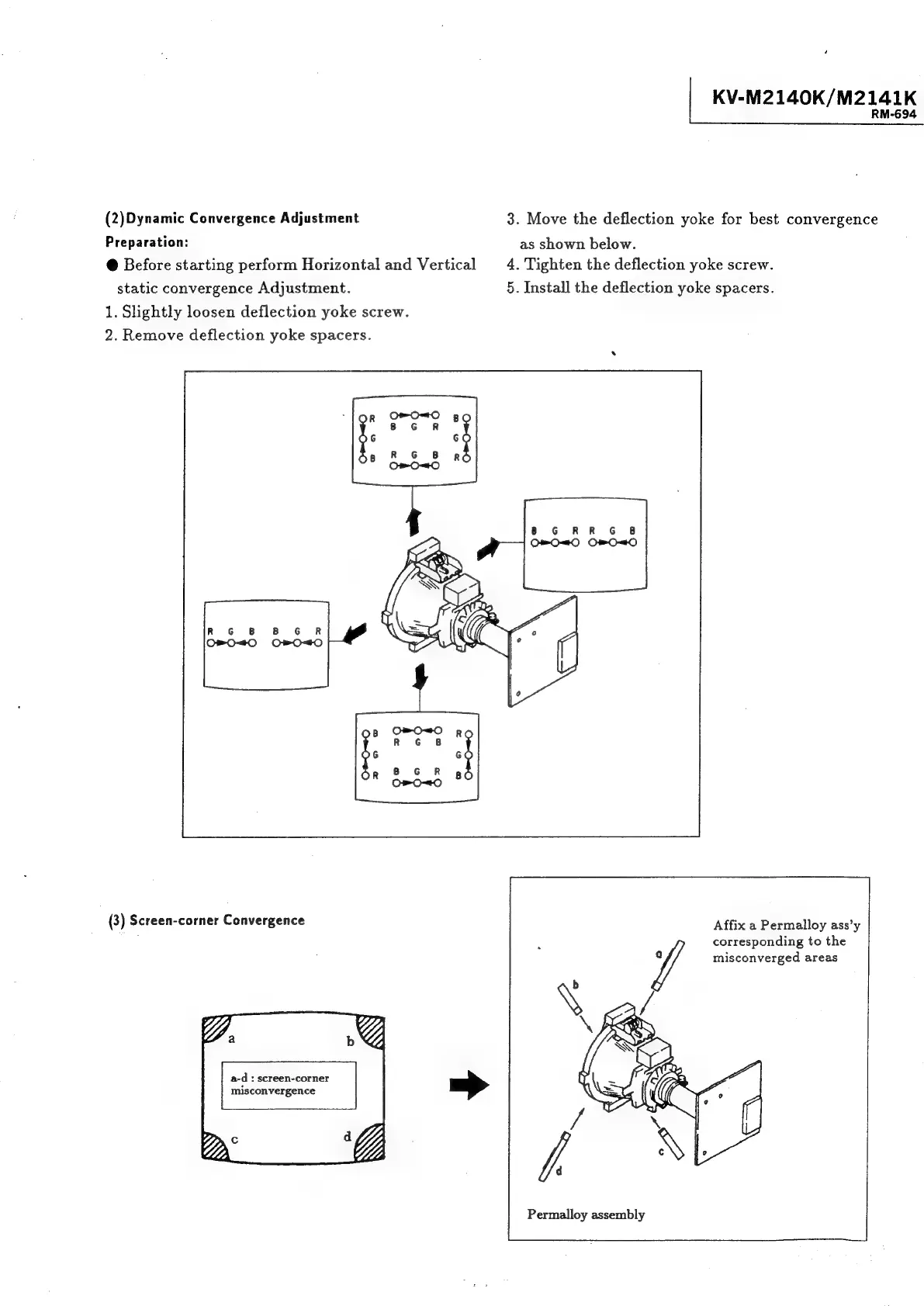

(2)Dynamic Convergence Adjustment
Preparation:
@ Before starting perform Horizontal and Vertical
static convergence Adjustment.
1. Slightly loosen deflection yoke screw.
2. Remove deflection yoke spacers.
| KV-M2140K/M2141K
RM-694
3. Move the deflection yoke for best convergence
as shown below.
4. Tighten the deflection yoke screw.
5. Install the deflection yoke spacers.
(3) Screen-corner Convergence
a-d : screen-corner
misconvergence
Permalloy assembly
Affix a Permalloy ass’y
corresponding to the
misconverged areas
