KV-PG21P40/PG21M70/PG21P70
RM-952
2-6. REPLACEMENT OF PARTS
For replacements of light guide,unscrew them,
exchange with new parts and fix them with
screws respectively.
2-6-2. Replacement of Power Button
2-6-1. Replacement of Light Guide
1 Push to direction of arrow
and remove
2-5. TERMINAL BRACKET REMOVAL
SECTION 2
DISASSEMBLY

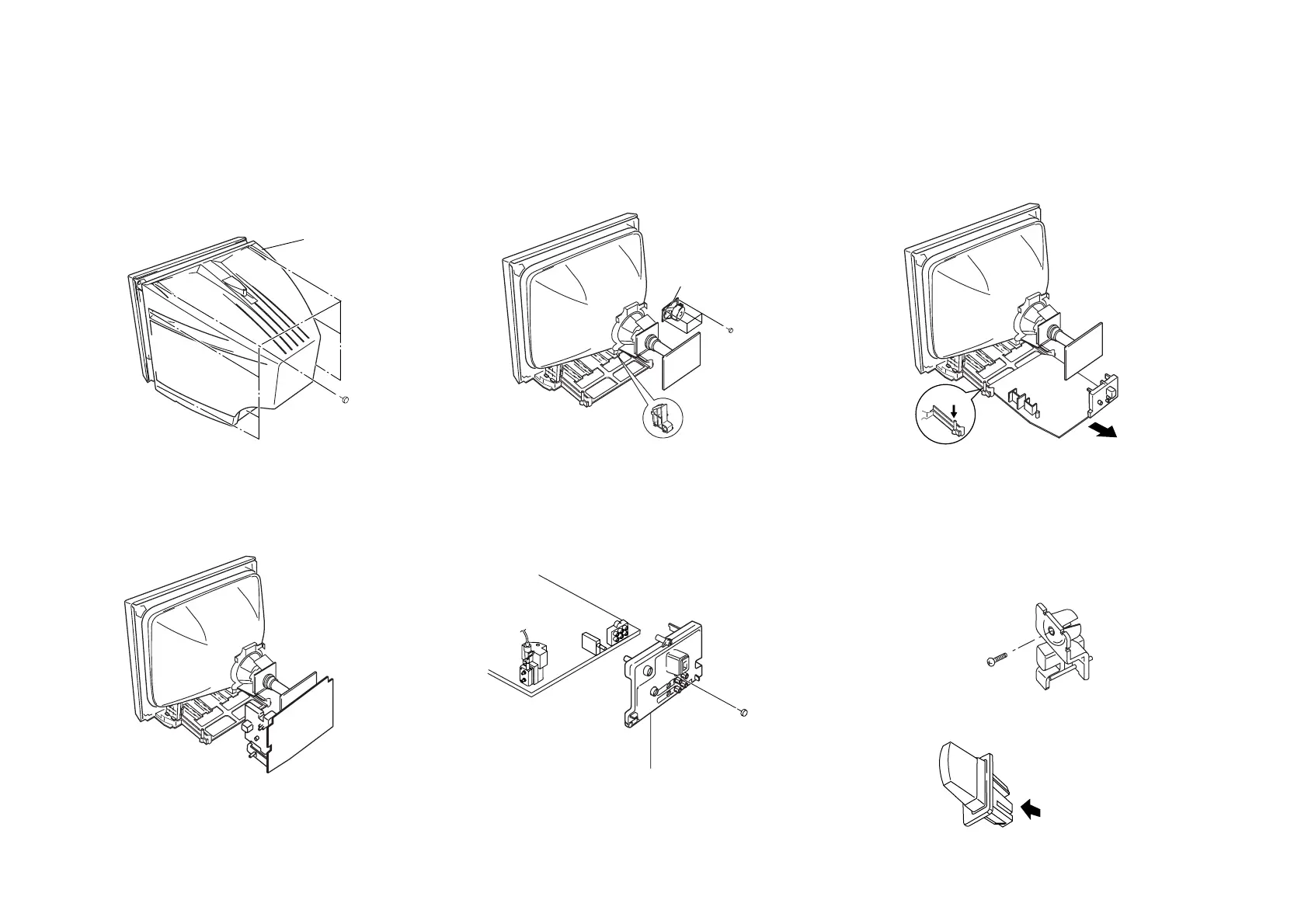

2-1. REAR COVER REMOVAL
2-2. SPEAKER REMOVAL
2-3. CHASSIS ASSY REMOVAL
1 Seven screws
(+BVTP 4 × 16)
1 Rear Cover
1 Four screws
washer head
(BVTP 3 × 12)
Speaker
2-4. SERVICE POSITION
Caution:
Do not take out CRT support block while TV set in
standing position.
Note:
Undress necessary wires that creates tension while
placing the chassis into Service Position.
1 One screw
(+BVTP 4 × 16)
2 Terminal Bracket
To Next Page
