Sony Trinitron PVM-14N1E Service Manual

i
eel

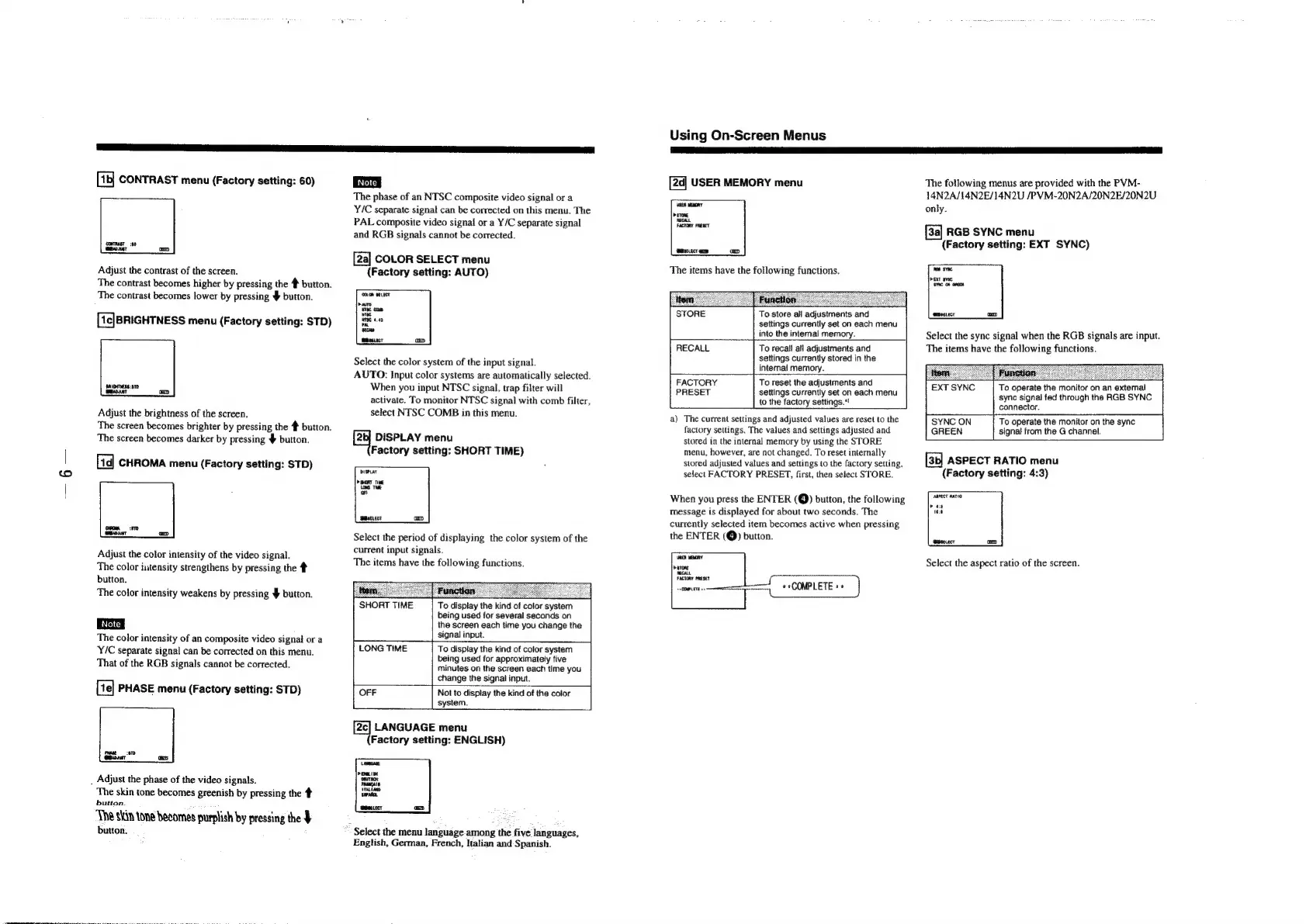

CONTRAST menu (Factory setting: 60)
Adjust the contrast of the screen.
The contrast becomes higher by pressing the # button.
The contrast becomes lower by pressing $ button.
[1c]BRIGHTNESS menu (Factory setting: STD)
Adjust the brightness of the screen.
The screen becomes brighter by pressing the # button.
The screen becomes darker by pressing $ button.
CHROMA menu (Factory setting: STD)
Sle aw
Adjust the color intensity of the video signal.
The color intensity strengthens by pressing the
button.
The color intensity weakens by pressing $ button.
The color intensity of an composite video signal or a
Y/C separate signal can be corrected on this menu.
That of the RGB signals cannot be corrected.
PHASE menu (Factory setting: STD)
. Adjust the phase of the video signals.
The skin tone becomes greenish by pressing the #
button.
The skin tone beoomes purplish by pressing the }
button.
The phase of an NTSC composite video signal or a
Y/C separate signal can be corrected on this menu. The
PAL composite video signal or a Y/C separate signal
and RGB signals cannot be corrected.
COLOR SELECT menu
(Factory setting: AUTO)
Select the color system of the input signal.
AUTO: Input color systems are automatically selected.
When you input NTSC signal, trap filter will
activate. To monitor NTSC signal with comb filter,
select NTSC COMB in this menu.
By DISPLAY menu
Factory setting: SHORT TIME)
Select the period of displaying the color system of the
current input signals.
The items have the following functions.
To display the kind of color system
being used for several seconds on
the screen each time you change the
signal input.
SHORT TIME
LONG TIME To display the kind of color system
being used for approximately five
minutes on the screen each time you
change the signal input.
Not to display the kind of the color
system.
[2c] LANGUAGE menu
(Factory setting: ENGLISH)
Select the menu language among the five languages,
English, German, French, Italian and Spanish.
Using On-Screen Menus
[2d] USER MEMORY menu
SER MEDAY
> eTORE
RECALL
FACTORY PRESET
Sucre aD
The items have the following functions.
To store all adjustments and
settings currently set on each menu
into the internal memory.
RECALL To recall all adjustments and
settings currently stored in the
internal memory.
FACTORY
To reset the adjustments and
PRESET settings currently set on each menu
to the factory settings.”
a) The current settings and adjusted values are reset to the
factory settings. The values and settings adjusted and
stored in the internal memory by using the STORE
menu, however, are not changed. To reset internally
stored adjusted values and settings to the factory setting,
select FACTORY PRESET, first, then select STORE.
When you press the ENTER (@) button, the following
message is displayed for about two seconds. The
currently selected item becomes active when pressing
the ENTER (@) button.
FECAL
FACTORY PRESET
com, «COMPLETE ++ |
Me ee
at eo
The following menus are provided with the PVM-
14N2A/14N2E/14N2U /PVM-20N2A/20N2E/20N2U
only.
RGB SYNC menu
(Factory setting: EXT SYNC)
Select the sync signal when the RGB signals are input.
The items have the following functions.
EXT SYNC To operate the monitor on an external
sync signal fed through the RGB SYNC
connector.
SYNC ON To operate the monitor on the sync
GREEN signal from the G channel.
[3b] ASPECT RATIO menu
(Factory setting: 4:3)
AMPECT RATIO.
mas
168
Select the aspect ratio of the screen.
