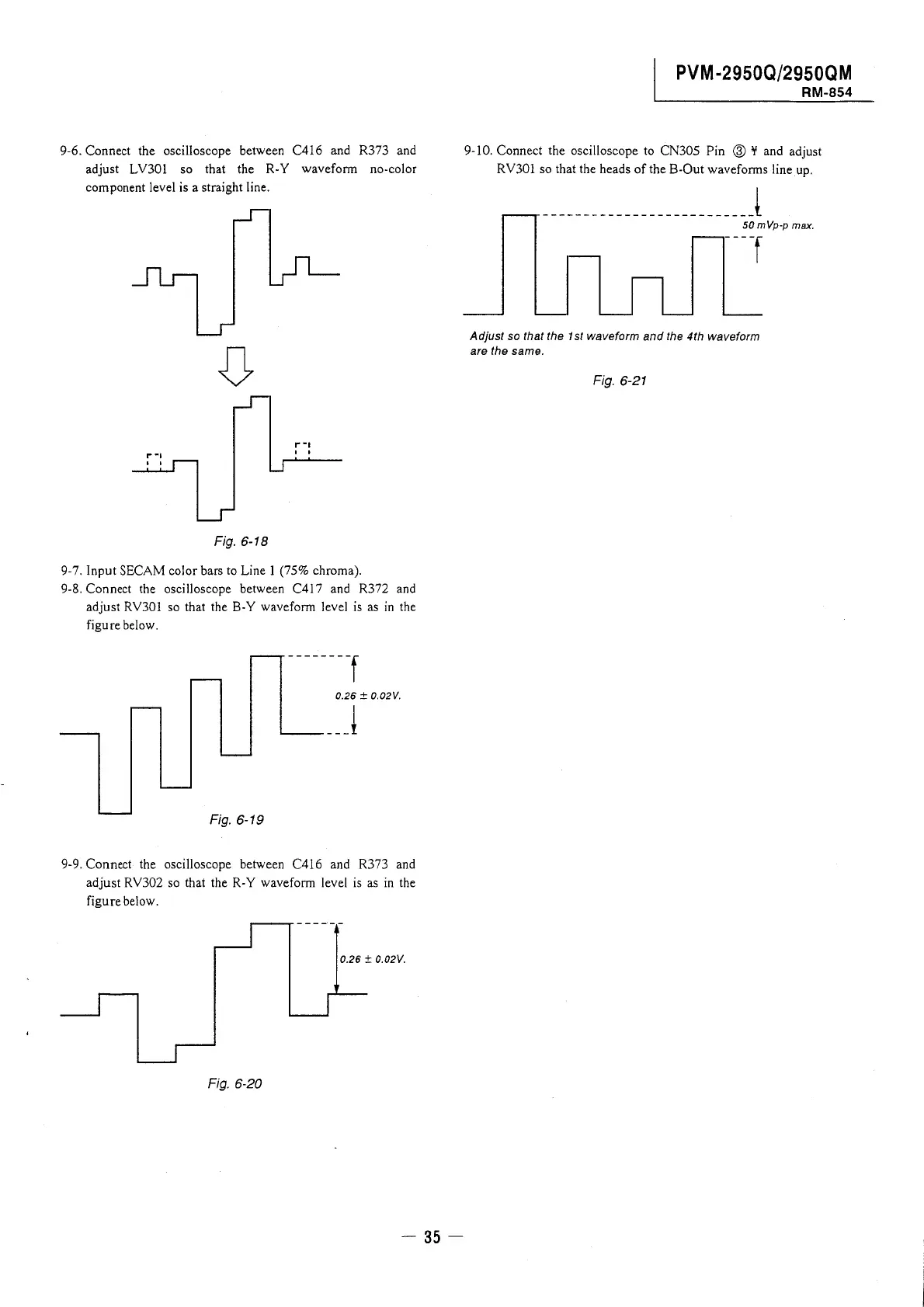

9-6. Connect the oscilloscope between C416 and R373 and
adjust LV301 so that the R-Y wavefonn no-color
component level is a straight line.
Fig. 6-18
I
~
9-7. Input SECAM color bars to Line 1 (75% chroma).
9-8. Connect the oscilloscope between C417 and R372 and
adjust RY301 so that the B-Y wavefonn level is as in the
figure below.
--------f
0.26 ± 0.02V.
__ J
Fig. 6-19
9-9. Connect the oscilloscope between C416 and R373 and
adjust RV302 so that the R-Y wavefonn level is as in the
figure below.
0.26 ± 0.02V.
Fig. 6-20
- 35 -
PVM-2950Q/2950Q M
RM-854
9-10. Connect the oscilloscope to CN305 Pin ® ¥ and adjust
RV301 so that the heads of the B-Out wavefonns line up.
__________________________ l
50 mVp-p max.
Adjust so that the 1st waveform and the 4th waveform
are the same.
Fig. 6-21
