Sony VPL-CS20 Service Manual

VPL-CX20/CS20
1-7

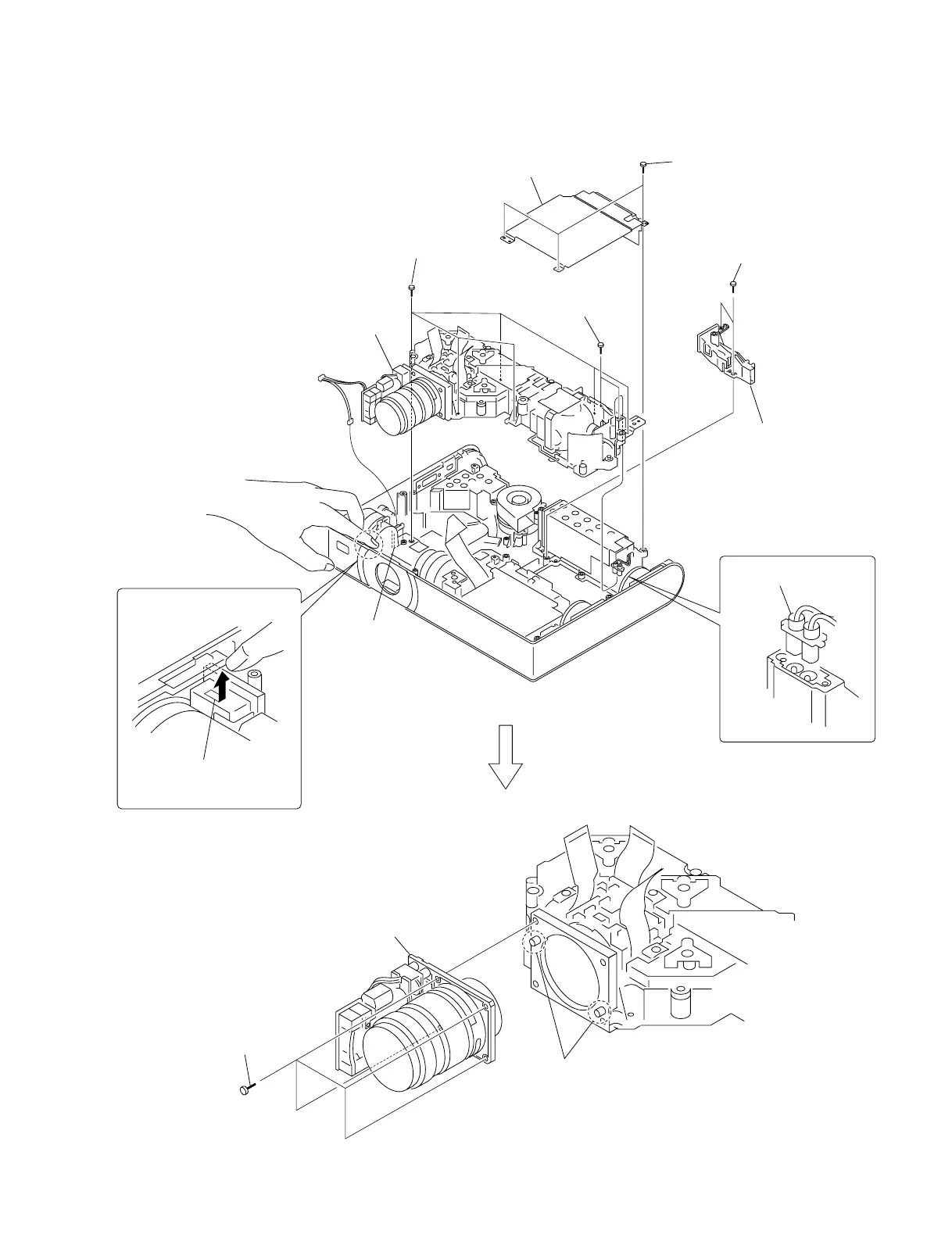

1-3-3. Optics Unit
1 Three screws
(+PSW 2.6 x 5)
6 Two screws
(+BV 3 x 8)
3 Two screws
(+PSW 2.6 x 5)
9 Optics unit
5 Six screws
(+P M2.6 x 8)
4 Lamp duct assembly
2 Lamp plate
7 Lamp power supply
0 Four screws
(+P M2.6 x 8)
!= Projection lens assembly
!- Two claws
8 Remove the optics unit
in the direction of the arrow.
CN2500
V board
