1-5
VPL-CS4/CX4

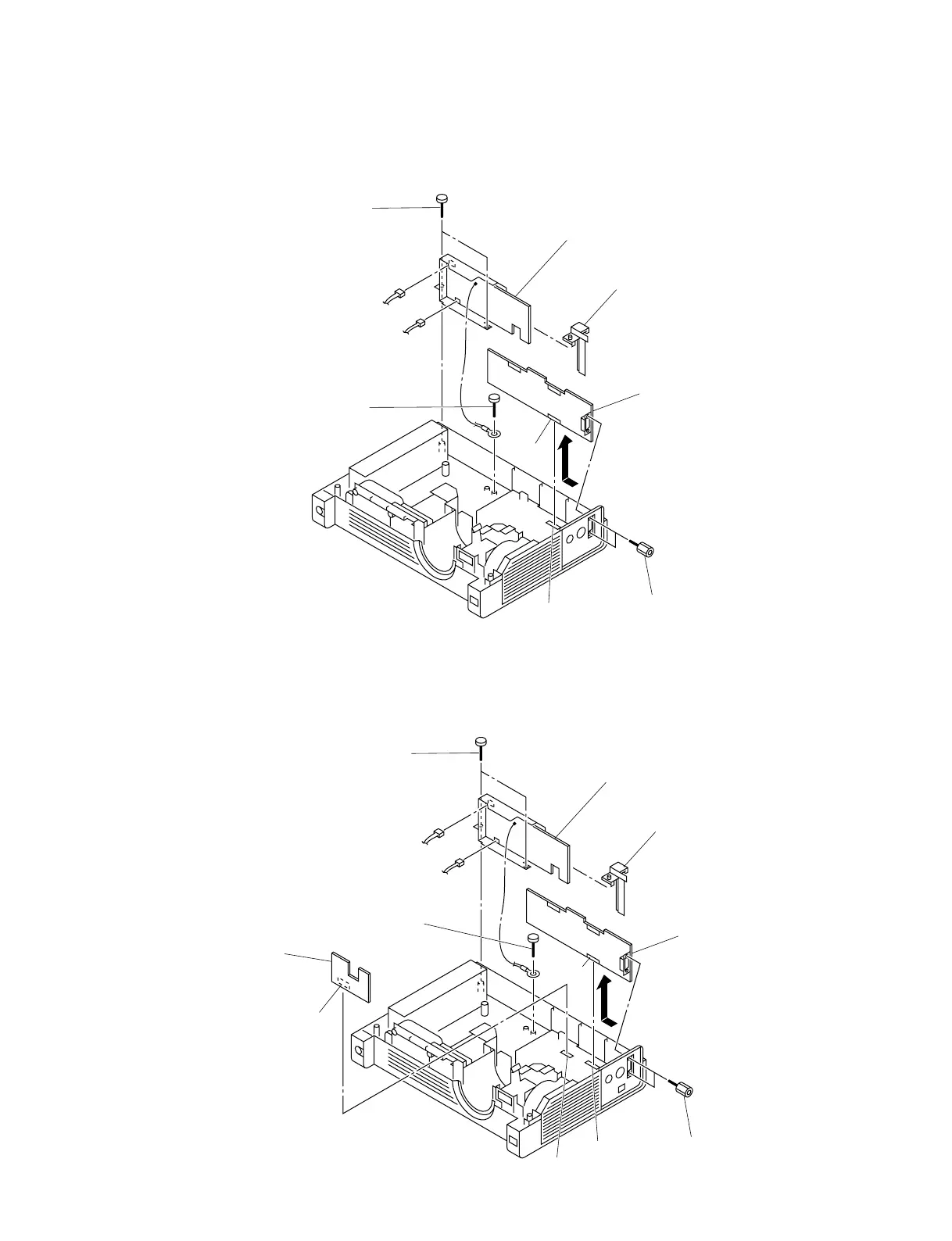

1-2-6. BB and GB Boards Removal (VPL-CS4)
* Remove the optical block assy. (Refer to Sec.1-2-5.)
1-2-7. QA, BB and GB Boards Removal (VPL-CX4)
* Remove the optical block assy. (Refer to Sec.1-2-5.)
6 GB board
1 Holder (MS)
3 BB board
2 Two screws
5 Two screws
(+B3 x 6)
4 Screw
(+B3 x 6)
CN3202
CN3201
GND
CN103
CN101
(BA board)
CN3202
CN3201
GND
CN401
CN101
CN301
7 GB board
2 Holder (MS)
4 BB board
3 Two screws
6 Two screws
(+B3 x 6)
5 Screw
(+B3 x 6)
1 QA board
CN103
