Sony VPL-CS4 - Optics 1

4-8
VPL-CS4/CX4

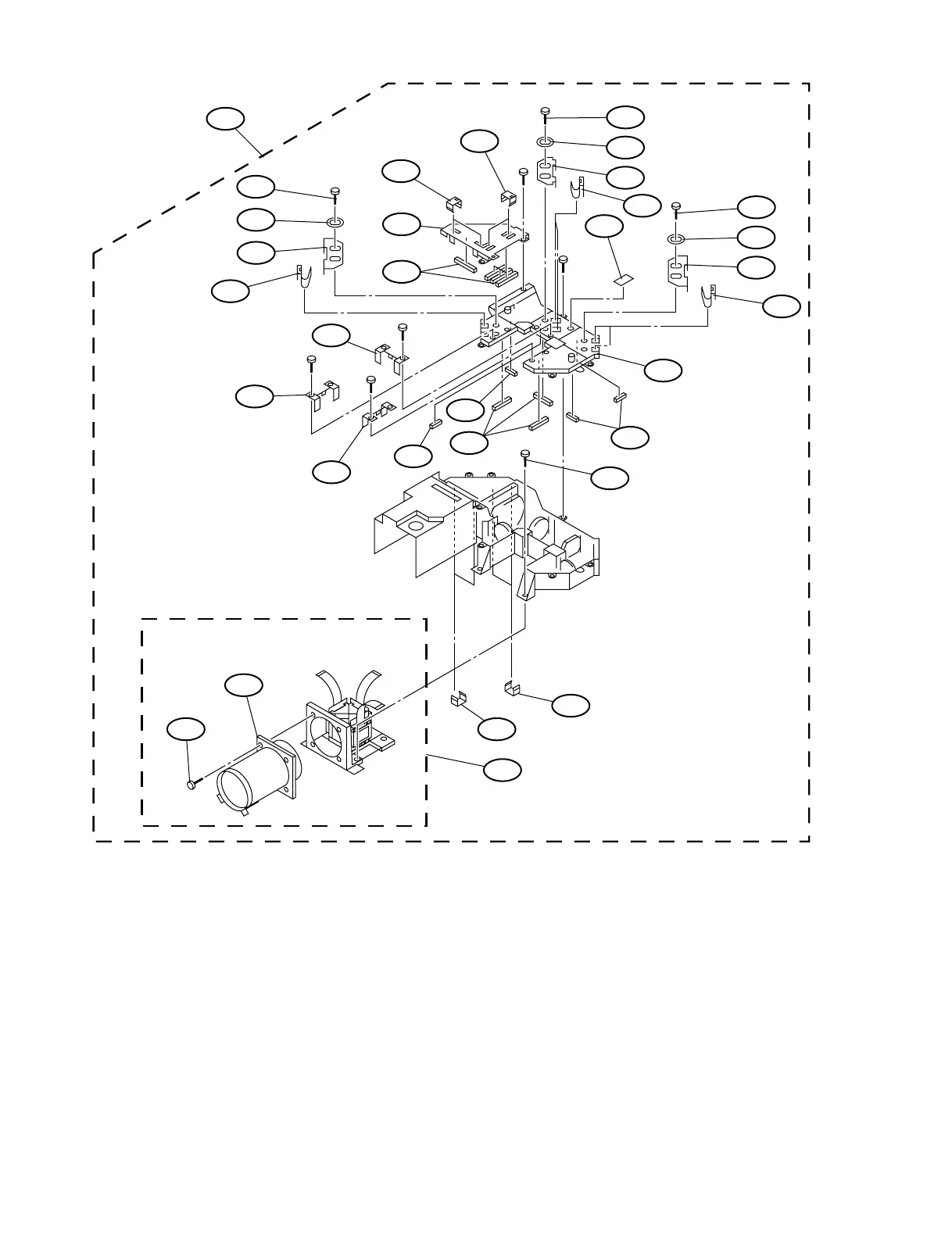

4-2-4. Optics 1
306
315
316
314
306
310
312
306
310
311
308
321
319
309
318
319
313
320
317
310
311
308
307
307
307
303
306
302
+B 2 x 4
+B 3 x 6
+B 3 x 6
+B 2 x 4
+B 2 x 4
301
319
316
315
Optics 1
No. Part No. SP Description
301 A-1501-951-A s OPTICS BLOCK ASSY
(for VPL-CX4)
A-1601-721-A s OPTICS BLOCK ASSY
(for VPL-CS4)
302 A-1601-722-A s PRISM BLOCK ASSY
(for VPL-CS4)
A-1485-366-A s PRISM BLOCK ASSY
(for VPL-CX4)
303 A-1501-908-A s PROJECTION LENS
(for VPL-CS4)
A-1501-950-A s PROJECTION LENS
(for VPL-CX4)
306 4-074-474-01 s SCREW, +BSW M3 x 8
307 4-082-784-01 o HOLDER, IN-POLARIZER
308 4-074-405-01 o FASTENER (RB)
309 4-082-759-01 s SCREW, MACHINE (+) P M4 x 12
310 4-066-174-01 s STOPPER (OPT), ROTATION
No. Part No. SP Description
311 4-082-749-01 o ADJUSTER, RB-MIRROR
312 4-082-750-01 o ADJUSTMENT, G-MIRROR
313 4-082-748-01 o FASTENER (G)
314 4-082-824-01 o COVER (B), UNIT
315 4-082-744-01 o SPRING (FY-PS)
316 4-082-754-01 o SPRING (UV-FY)
317 4-082-763-01 o STOPPER, P/S
318 4-082-764-01 o STOPPER, CH CONDENSER
319 4-082-765-01 o STOPPER, RELAY LENS-2
320 4-074-425-01 s TAPE (A), SEAL
321 4-082-826-01 o COVER (F), UNIT
7-621-772-10 s +B 2x4
7-682-547-04 s +B 3x6
