Sony VPL-CS4 - Lamp Power and GC Board Removal; Projection Lens Removal

1-8
VPL-CS4/CX4

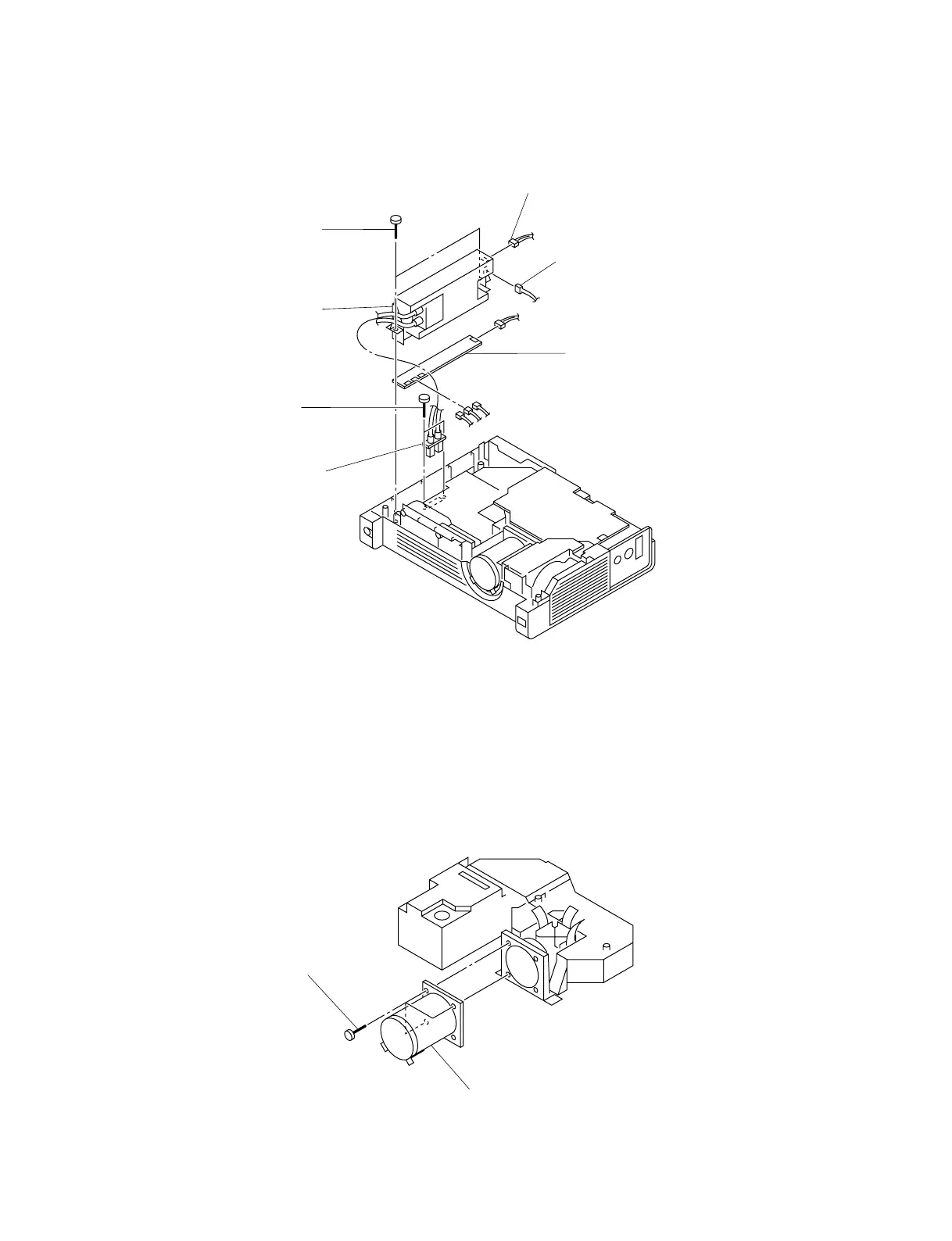

1-2-12. Lamp Power and GC Board Removal
1-2-13. Projection Lens Removal
* Remove the optical block assy. (Refer to Sec.1-2-5.)
3 Two screws
(+B3 x 6)
4 Lamp power
2 Connector (2P)
1 Two screws
(+PTPWH3 x 10)
Connector (5P)
Connector (3P)
CN4203
CN4101
CN4102
CN4104
5 GC board
1 Three screws
Hexagon socket head
screw with washer
2 Projection lens
()
