20 Connecting the Projector
To connect a 15k RGB/Component equipment
• Set the aspect ratio using “Wide Mode” in the INPUT SETTING menu according to
the input signal.
• When you connect the unit to 15k RGB or component video equipment, select video
GBR or component with the “Input-A Signal Sel.” setting in the SET SETTING
menu.
• Use the composite sync signal when you input the external sync signal from 15k
RGB/component equipment.
Notes
ACCESS
AUDIO VIDEO
POWER
SAVING
MENU
S VIDEO
TEMP/FAN
LAMP/COVER
INPUT A
PUSH
ENTER

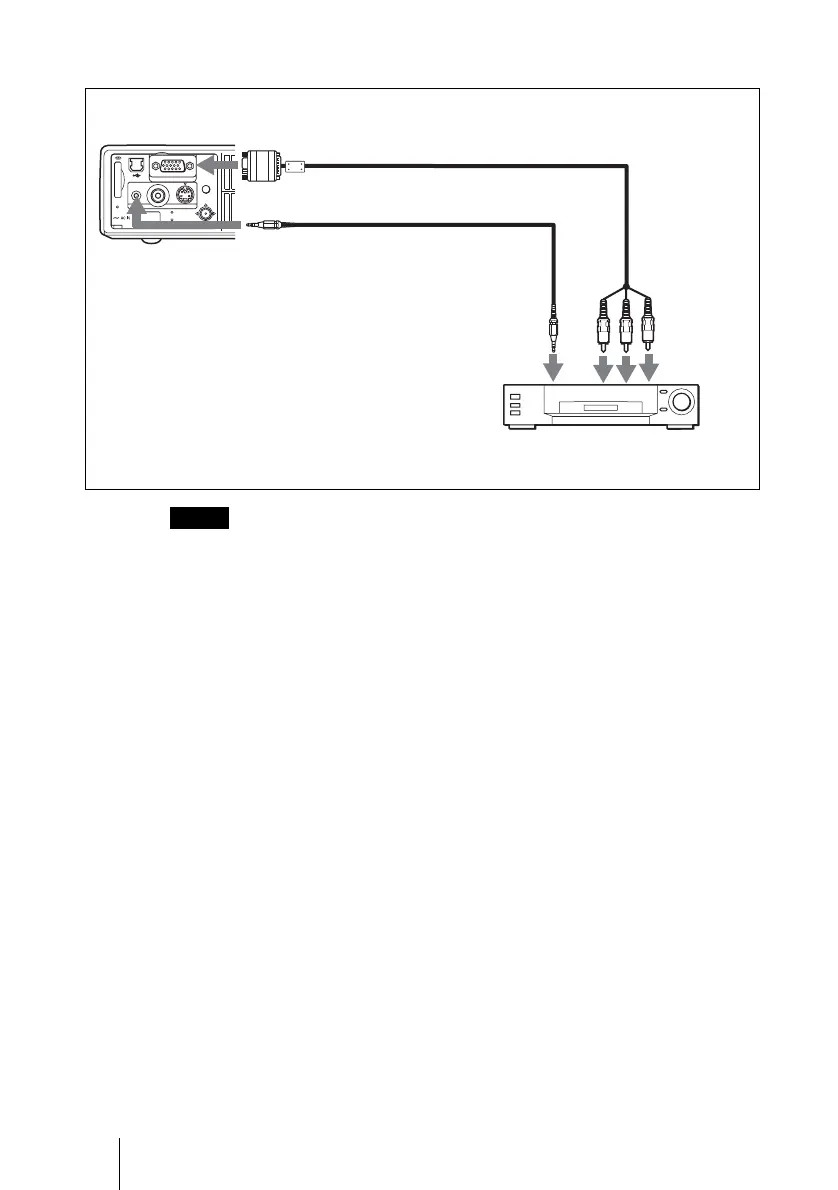

Left side
Stereo audio connecting cable
(not supplied)
a)
SMF-402 Signal Cable
(not supplied)
HD D-sub 15-pin (male) ↔ 3 × phono jack
to audio
output
15k RGB/Component equipment
to RGB/
component
output
a) Use a no-resistance cable.

Sony VPL-CS5 Specifications

General

Contrast Ratio	400:1
Display Type	LCD
Projection Technology	3 LCD
Lamp Life	2000 hours (standard mode), 3000 hours (economy mode)
Projection Distance	10.2 m
Lamp Type	UHP
Projection Size	30 - 300 inches
Input Ports	S-Video
