Installing the Projector
Projecting the Picture
B Projecting the Picture
Installing the Projector
The distance between the lens and the screen varies depending on the size of the screen. Use
the following table as a guide.
There may be a slight difference between the actual value and the design value shown in the table
above.
For details on installation diagram, see “Installation Diagram” on page 46.

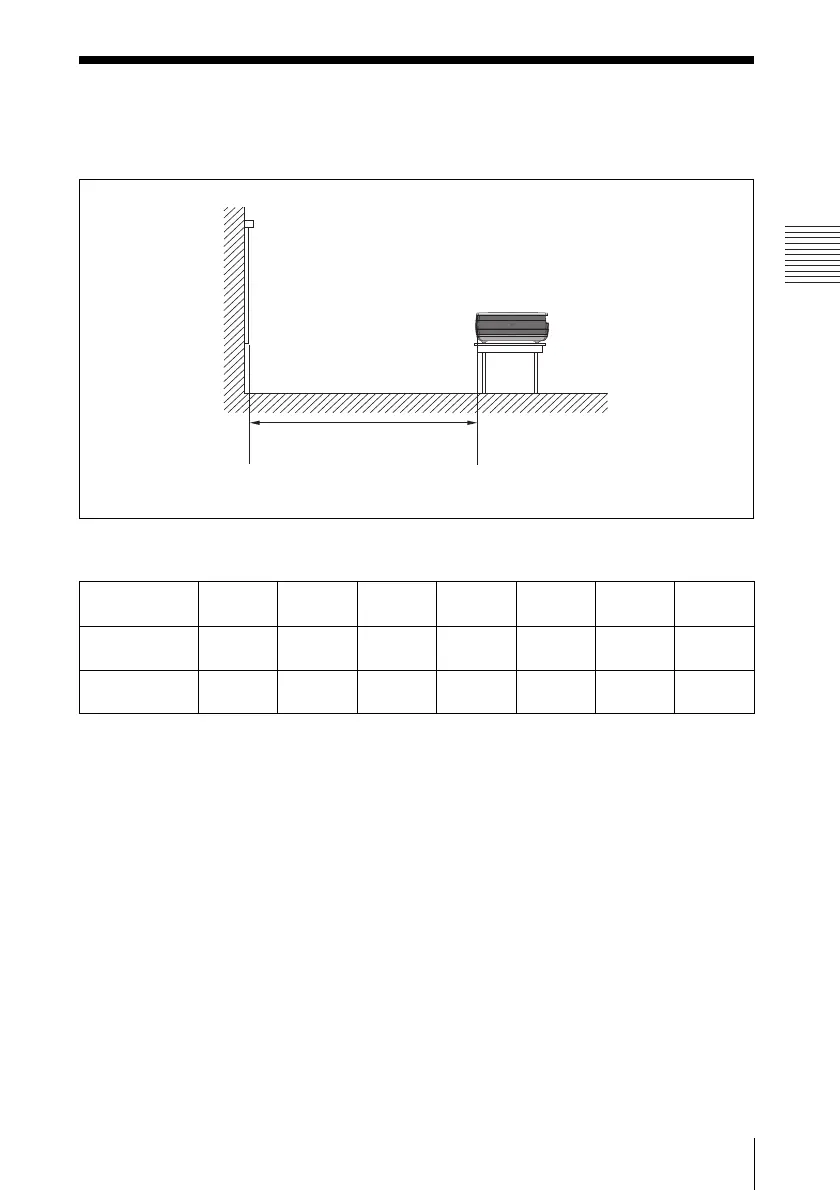

Distance between the screen
and the center of the lens
Screen
Unit: m (feet)
Screen size
(inches)
40 80 100 150 200 250 300
Minimum
Distance
1.2
(3.9)
2.3
(7.5)
2.9
(9.5)
4.4
(14.4)
5.9
(19.4)
7.3
(24)
8.8
(28.9)
Maximum
Distance
1.4
(4.6)
2.8
(9.2)
3.6
(11.8)
5.4
(17.7)
7.2
(23.6)
9.0
(29.5)
10.7
(35.1)
