16
Projecting

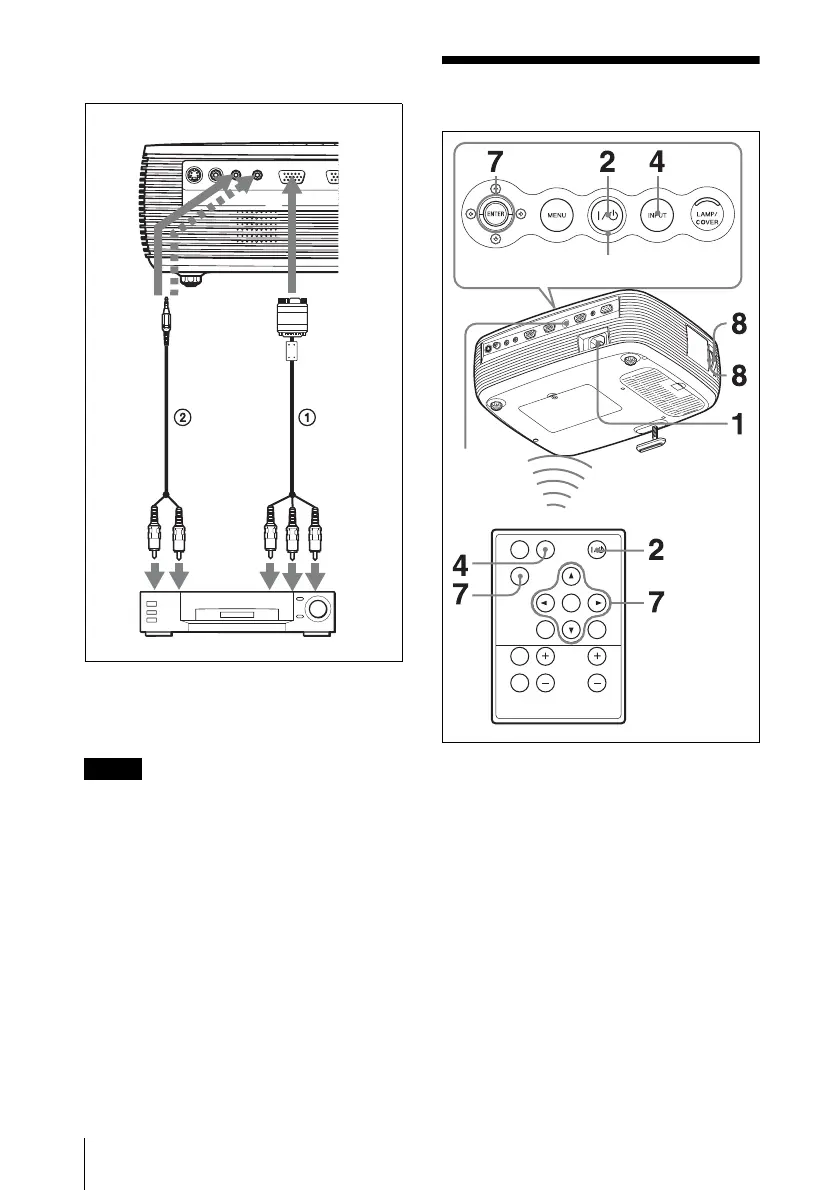

To connect to a video GBR/
Component output connector
1 Signal Cable (not supplied)
HD D-sub 15-pin (male) ↔ 3 × phono jack
2 Stereo audio connecting cable (not supplied)
(Use a no-resistance cable.)
• For stereo audio connection, connect the
stereo audio connecting cable to the AUDIO
connector for VPL-ES4, or to the AUDIO
INPUT A/B connector for VPL-EX4.
• Set the aspect ratio using “Wide Mode” on
the INPUT SETTING menu according to the
input signal.
• When you connect the projector to a video
GBR output connector, select “Video GBR”
or when you connect the projector to a
component output connector, select
“Component” with the “Input-A Signal Sel.”
setting on the SET SETTING menu.
Projecting
1 Plug the AC power cord into a wall
outlet, and connect all equipment, then
remove the lens cover.
The ON/STANDBY indicator lights in
red and the projector goes into standby
mode.
2 Press the ?/1 key.
The ON/STANDBY indicator lights
after flashing in green. The projector
cannot be used while the ON/
STANDBY indicator is flashing.
3 Turn on the equipment connected to
the projector.
Notes
S VIDEO VIDEO AUDIO AUDIO A/B INPUT A
INPUT
INP
Rear side
to
audio
output
(R)
VCR
to video
GBR/
component
output
to
audio
output
(L)
APA
FREEZE
KEY
STONE
PIC
MUTING
INPUT
ENTER
RESET
D ZOOM VOLUME
MENU
ON/STANDBY indicator
Rear
remote
control
detector
