Sony VPL-EX4 - Connector Pinout Diagrams; Input and Output Connector Assignments

44
Specifications

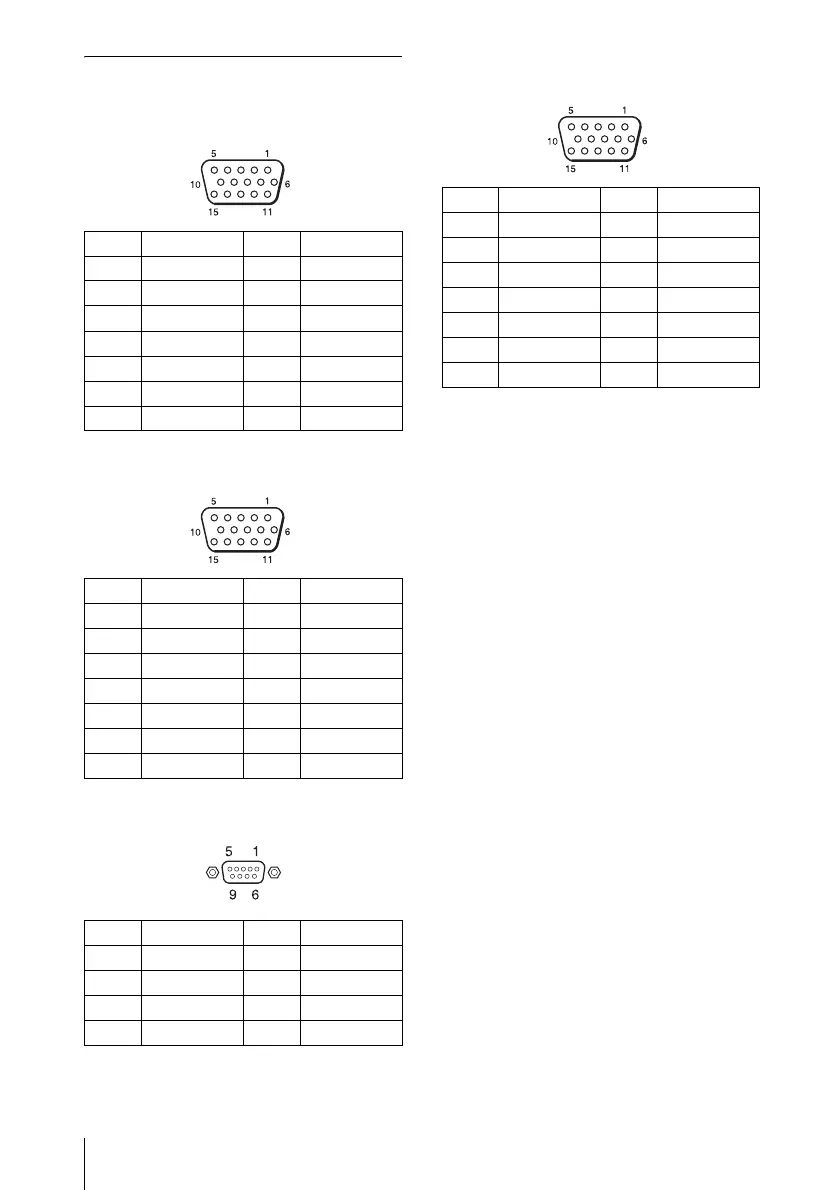

Pin assignment
INPUT A connector (HD D-sub 15-pin,
female)
INPUT B connector (HD D-sub 15-pin,
female) (VPL-EX4 only)
RS-232C connector (D-sub 9 pin,
female)
OUTPUT MONITOR connector (HD D-
sub 15-pin, female)
1R/R-Y 9N.C.
2 G/Y 10 GND
3 B/B-Y 11 GND
4 GND 12 DDC/SDA
5GND 13HD
6GND (R)14VD
7 GND (G) 15 DDC/SCL
8GND (B)
1R 9N.C.
2 G 10 GND
3 B 11 GND
4 GND 12 DDC/SDA
5GND 13HD
6GND (R)14VD
7 GND (G) 15 DDC/SCL
8GND (B)
1DCD 6DSR
2RXDA 7RTS
3TXDA 8CTS
4DTR 9RI
5GND
1R 9N.C.
2 G 10 GND
3 B 11 GND
4 GND 12 N.C.
5 GND 13 HD
6 GND (R) 14 VD
7 GND (G) 15 N.C.
8 GND (B)
